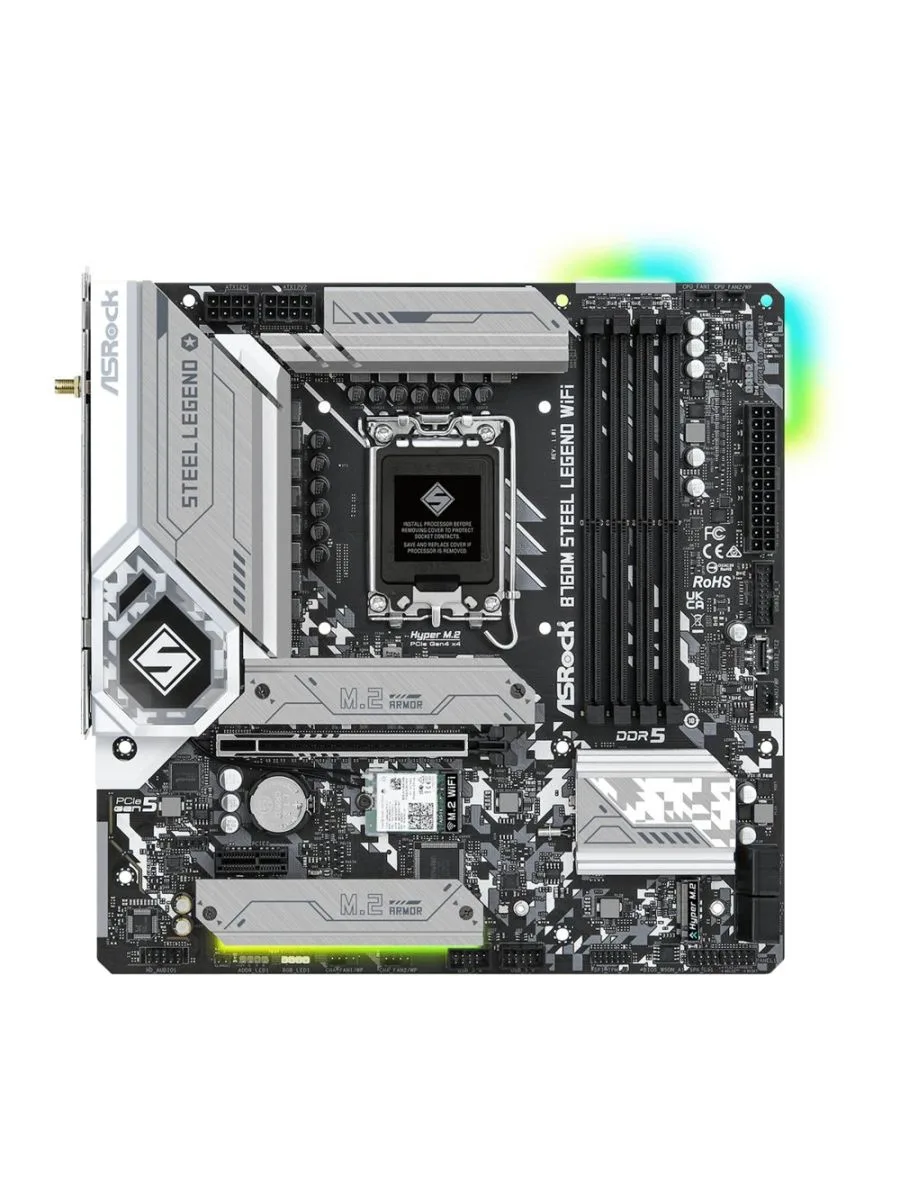

ASRock B760M Steel Legend WiFi | Socket LGA 1700 | Intel B760 | 4xDDR5 | Micro-ATX | Motherboard

Warranty	3 jaar via Complies
SKU	90-MXBL70-A0UAYZ
EAN	4710483941795
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
TPM connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Line-in:	Y
Microphone in:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Dragon RTL8125BG
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.3
Expansion slots
PCI Express x1 (Gen 4.x) slots:	1
PCI Express x4 (Gen 1.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	1
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	128 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width:	244 mm
Depth:	244 mm
Packaging content
Cables included:	SATA

Productomschrijving

The Asrock B760M Steel Legend WiFi is a versatile micro ATX motherboard designed for Intel processors. Compatible with Intel® Core™ i5, i7, and i9 CPUs via the LGA 1700 socket, it offers strong performance for a range of tasks.

Supporting DDR5 memory with up to 128 GB capacity, it provides ample space for demanding applications. The motherboard features M.2 and SATA III interfaces for both HDDs and SSDs, ensuring flexible storage options.

With 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax) connectivity, it guarantees fast and reliable network performance. The Asrock B760M Steel Legend WiFi is an excellent choice for high-performance PCs requiring robust connectivity and processing power.

More…

ASRock B760M Steel Legend WiFi | Socket LGA 1700 | Intel B760 | 4xDDR5 | Micro-ATX | Motherboard
