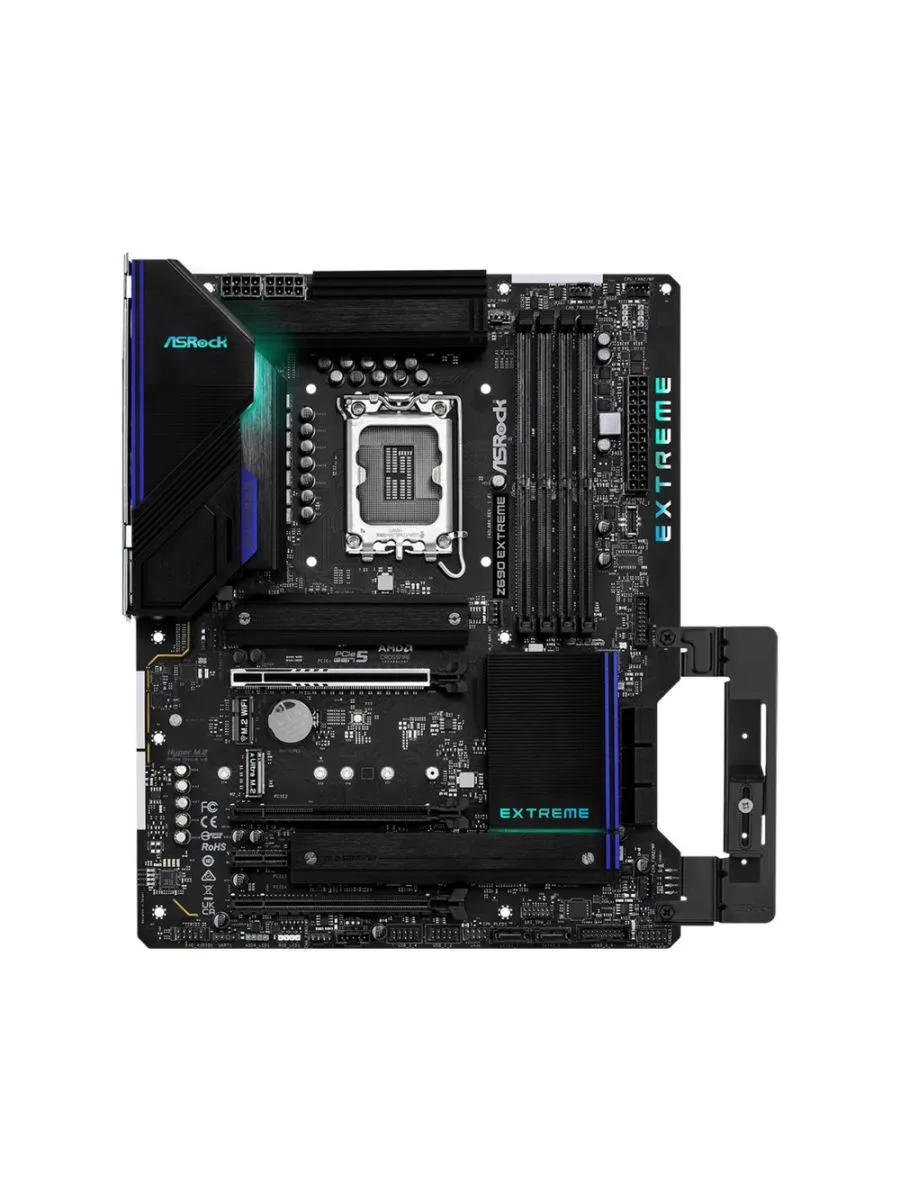

ASRock Z690 Extreme | Socket LGA 1700 | Intel Z690 | 4xDDR4 | ATX | Motherboard

Warranty	2 jaar via fabrikant
SKU	90-MXBHN0-A0UAYZ
EAN	4710483936067
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Yes
Maximum internal memory:	128 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
Number of SATA III connectors:	8
Front panel audio connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	5
EPS power connector (8-pin):	Yes
TPM connector:	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	2
PS/2 ports quantity:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
DisplayPort version:	1.4
S/PDIF out port:	Yes
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet, Gigabit Ethernet
LAN controller:	Dragon RTL8125BG, Intel WGI219V
Wake-on-LAN ready:	Yes
Wi-Fi:	No
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	3
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	6.0
Storage controllers
Supported storage drive interfaces:	M.2, SATA III
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z690
Audio chip:	Realtek ALC1220
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Logistics data
Harmonized System (HS) code:	84733020
Features
Certification:	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	70 mm
Other features
Weight:	1 kg

Productomschrijving

The Asrock Z690 Extreme is a versatile ATX motherboard designed for Intel processors. It features an LGA 1700 socket and supports Intel® Core™ i3, i5, i7, and i9 processors. With support for up to 128 GB of DDR4-SDRAM via DIMM slots, this motherboard delivers powerful performance for all your needs.

For storage, it includes M.2 and SATA III interfaces and supports RAID configurations (0, 1, 5, 10) for enhanced data security and performance. The 2.5 Gigabit Ethernet and Gigabit Ethernet connections, managed by Dragon RTL8125BG and Intel WGI219V LAN controllers, provide fast and reliable network connectivity.

More…
