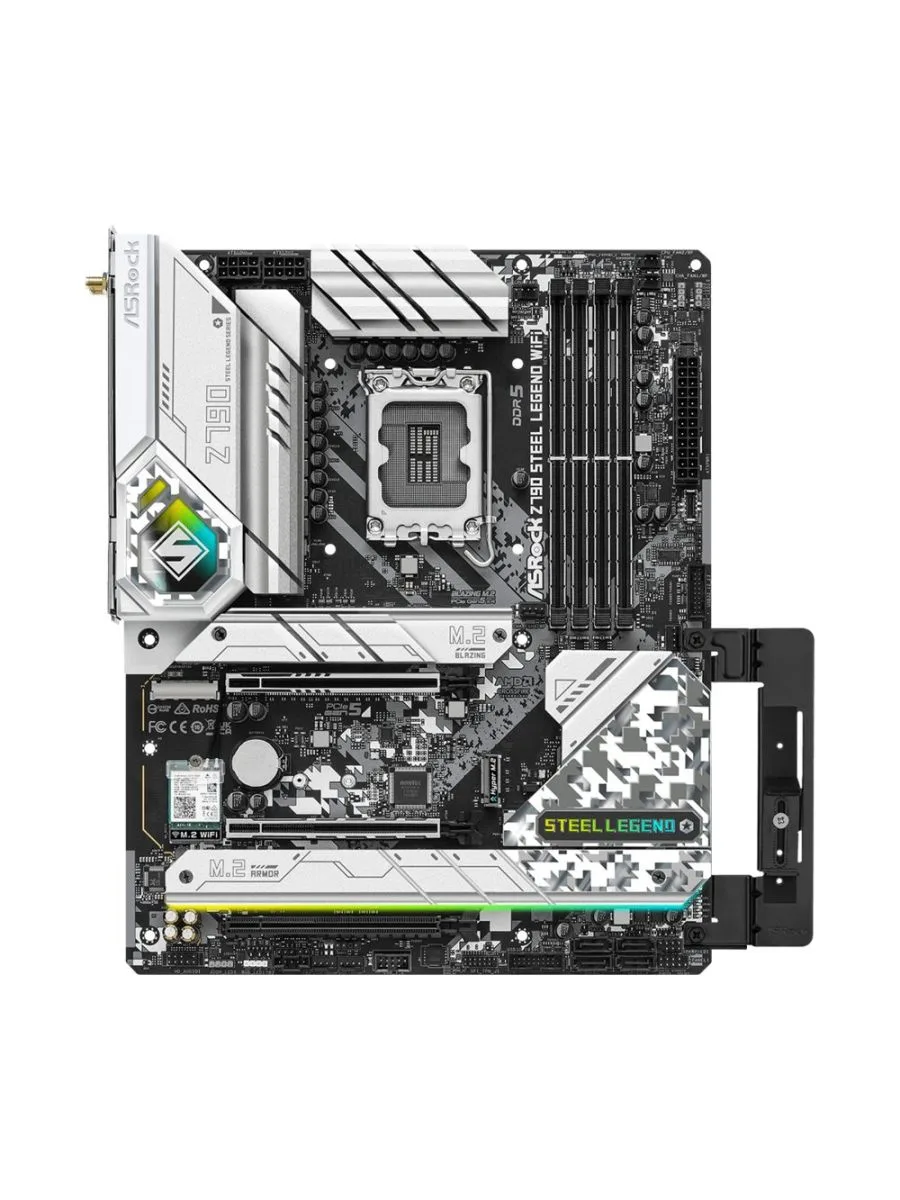

ASRock Z790 Steel Legend WiFi | Socket LGA 1700 | Intel Z790 | 4xDDR5 | ATX | Motherboard

Warranty	3 jaar via Complies
SKU	90-MXBKD0-A0UAYZ
EAN	4710483940859
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	8
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
TPM connector:	Y
Thunderbolt headers:	1
RGB LED pin header:	Y
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Headphone outputs:	1
Microphone in:	Y
S/PDIF out port:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Dragon RTL8125BG
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth:	Y
Expansion slots
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	1
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
RAID support:	Y
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z790
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width:	305 mm
Depth:	244 mm

Productomschrijving

The Asrock Z790 Steel Legend WiFi is a powerful Intel motherboard designed for top performance and versatility in your PC setup.

This motherboard is compatible with LGA 1700 processors and supports Intel® Core™ i5, i7, and i9 processors. Whether you're gaming, editing content, or handling other demanding tasks, this motherboard is ready to deliver.

With DDR5-SDRAM memory slots and a maximum capacity of 128 GB, you can expect fast and responsive performance, even under the heaviest workloads.

For storage options, it features M.2 and SATA III interfaces, allowing you to connect both HDDs and SSDs. Additionally, this motherboard supports various RAID configurations (0, 1, 5, 10), enhancing data integrity and performance.

Equipped with a 2.5 Gigabit Ethernet interface, backed by the Dragon RTL8125BG LAN controller, you can count on lightning-fast wired network connectivity. Plus, the built-in Wi-Fi 6E (802.11ax) offers even more flexibility for your networking needs.

The Asrock Z790 Steel Legend WiFi is an impressive choice for serious PC enthusiasts, providing top-tier performance and connectivity.
