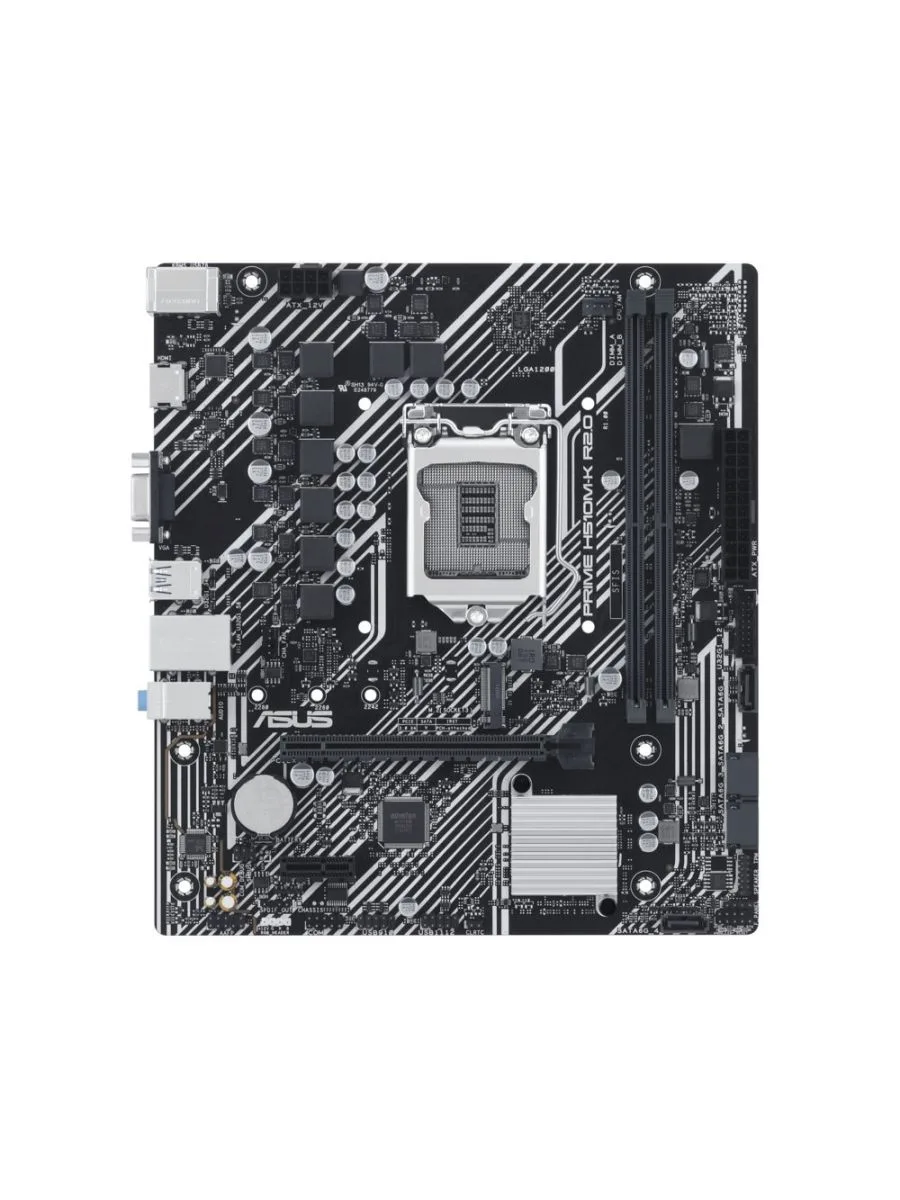

ASUS PRIME H510M-K R2.0 | Socket LGA 1200 | Intel H470 | 4xDDR4 | Micro-ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1E80-M0EAY0
EAN	4711387113189
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	2
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory:	64 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1200 (Socket H5)
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	4
S/PDIF out connector:	Y
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	1
EPS power connector (8-pin):	Y
TPM connector:	Y
12V power connector:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
VGA (D-Sub) ports quantity:	1
HDMI ports quantity:	1
COM ports quantity:	1
Network
Ethernet LAN:	Y
Ethernet interface type:	Fast Ethernet, Gigabit Ethernet
Wi-Fi:	N
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
Number of M.2 (M) slots:	1
BIOS
BIOS type:	EFI AMI
BIOS memory size:	128 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	5
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel H470
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64
Weight & dimensions
Width:	226 mm
Depth:	203 mm

Productomschrijving

ASUS PRIME H510M-K R2.0. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

More…

ASUS PRIME H510M-K R2.0 | Socket LGA 1200 | Intel H470 | 4xDDR4 | Micro-ATX | Motherboard

Productomschrijving
