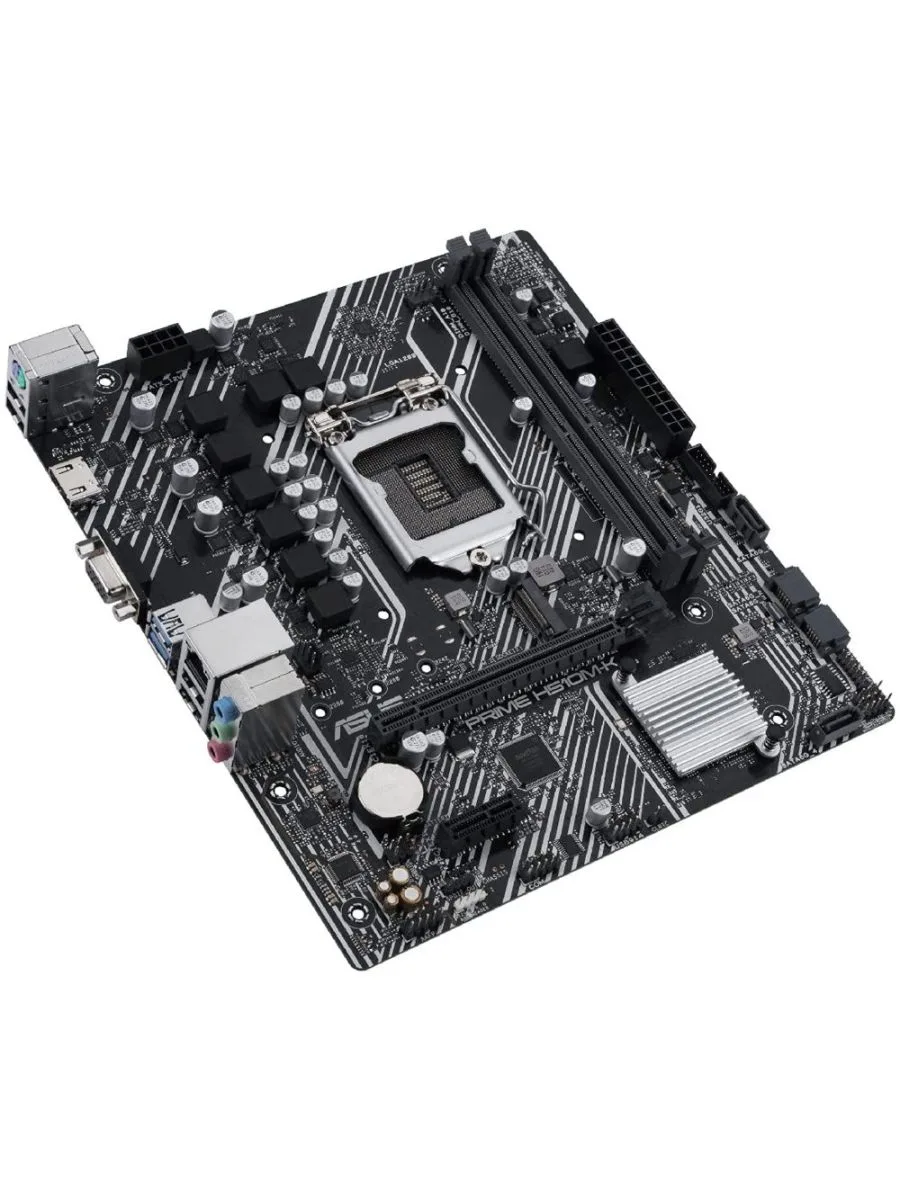

ASUS PRIME H510M-K | Socket LGA 1200 | Intel H510 | Micro-ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB17N0-M0EAY0
EAN	4711081152132
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	2
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2800,2933,3200 MHz
Maximum internal memory:	64 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1200
Compatible processor series:	Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
Supported processor sockets:	LGA 1200 (Socket H5)
Internal I/O
USB 2.0 connectors:	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	4
S/PDIF out connector:	Y
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	1
EPS power connector (8-pin):	Y
Number of COM connectors:	1
TPM connector:	Y
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
VGA (D-Sub) ports quantity:	1
HDMI ports quantity:	1
HDMI version:	1.4/2.0
Headphone outputs:	3
Microphone in:	Y
USB connector type:	USB Type-A
Network
Ethernet LAN:	Y
Ethernet interface type:	Gigabit Ethernet
LAN controller:	Intel® I219-V
Wake-on-LAN ready:	Y
Wi-Fi:	N
Graphics
Parallel processing technology support:	Not supported
Maximum resolution:	3840 x 2160 pixels
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	1
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	128 Mbit
Clear CMOS jumper:	Y
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2,PCI Express 3.0,SATA III
Number of storage drives supported:	5
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel H510
Audio chip:	Realtek ALC887 / Realtek ALC897
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64
Weight & dimensions
Width:	226 mm
Depth:	203 mm
Packaging content
Cables included:	SATA
Drivers included:	Y

Productomschrijving

The ASUS PRIME H510M-K micro ATX motherboard (90MB17N0-M0EAY0) is a powerful and reliable solution for system builders. It supports LGA1200 socket, making it easy to install in most modern systems. With a micro-ATX size, it is ideal for compact systems that still need powerful performance. With its reliable performance and excellent features, the ASUS PRIME H510M-K micro ATX motherboard is an excellent choice for system builders looking for a powerful and affordable solution.
