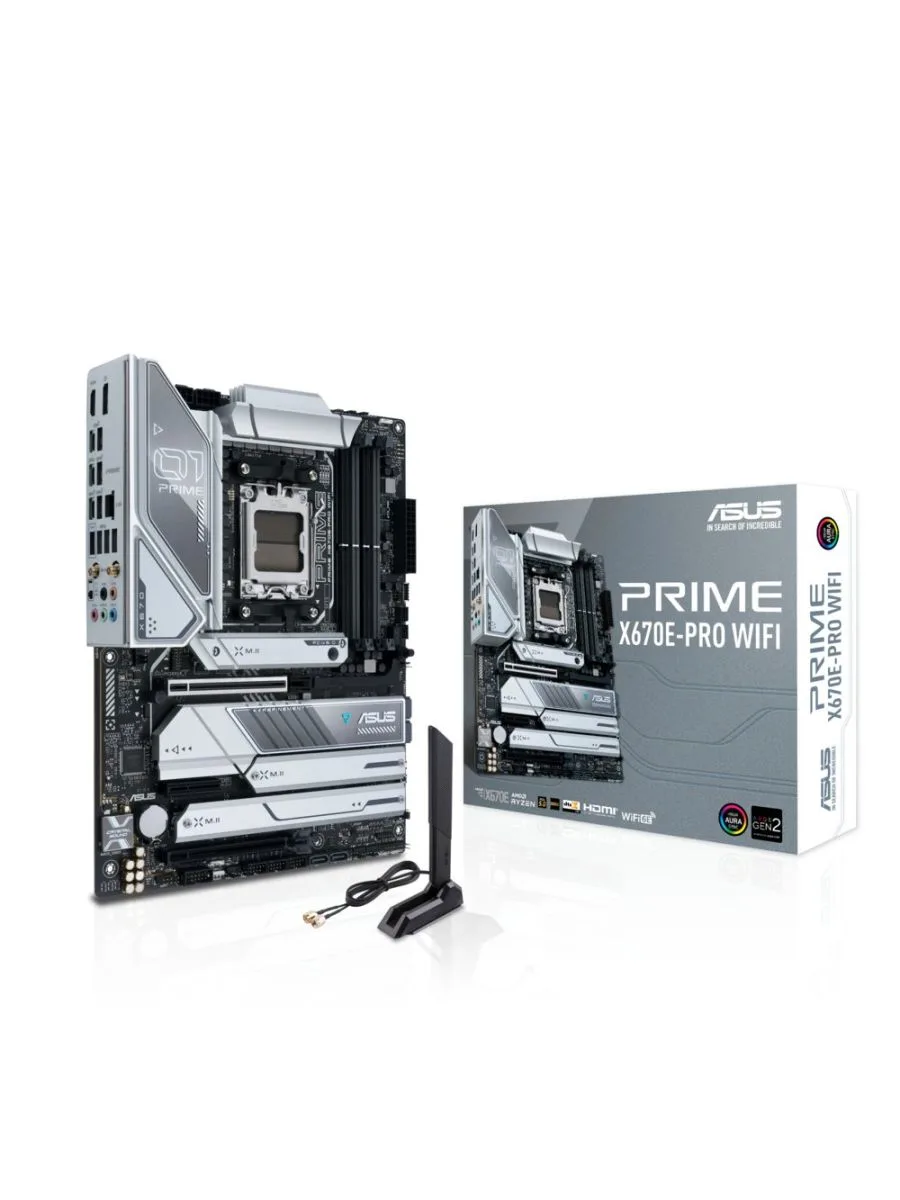

ASUS PRIME X670E-PRO WIFI | Socket AM5 | AMD X670E | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1BL0-M0EAY0
EAN	4711081905660
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Yes
Non-ECC:	Yes
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Internal I/O
USB 2.0 connectors:	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	4
EPS power connector (8-pin):	Yes
Number of COM connectors:	1
TPM connector:	Yes
Thunderbolt headers:	1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
Line-in:	Yes
Microphone in:	Yes
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.2
Expansion slots
PCI Express x4 (Gen 4.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	4
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Clear CMOS button:	Yes
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of storage drives supported:	8
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD X670
Audio chip:	Realtek S1220A
Audio output channels:	7.1 channels
Packaging data
Package width:	338 mm
Package depth:	68 mm
Features
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Packaging data
Package height:	273 mm
Package weight:	2.55 kg
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Other features
Weight:	1.7 kg

Productomschrijving

A powerful ATX motherboard designed for AMD processors with Socket AM5. It supports DDR5-SDRAM with a maximum internal memory capacity of 128 GB, distributed across DIMM memory slots. With M.2 and SATA III interfaces, this motherboard provides flexible storage options for both HDDs and SSDs.

For connectivity, the motherboard features 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, and Wi-Fi 6E (802.11ax) for ultra-fast network connections.

This motherboard, suitable for a PC, has the ATX form factor and belongs to the AMD motherboard chipset family, making it ideal for high-performance computing.
