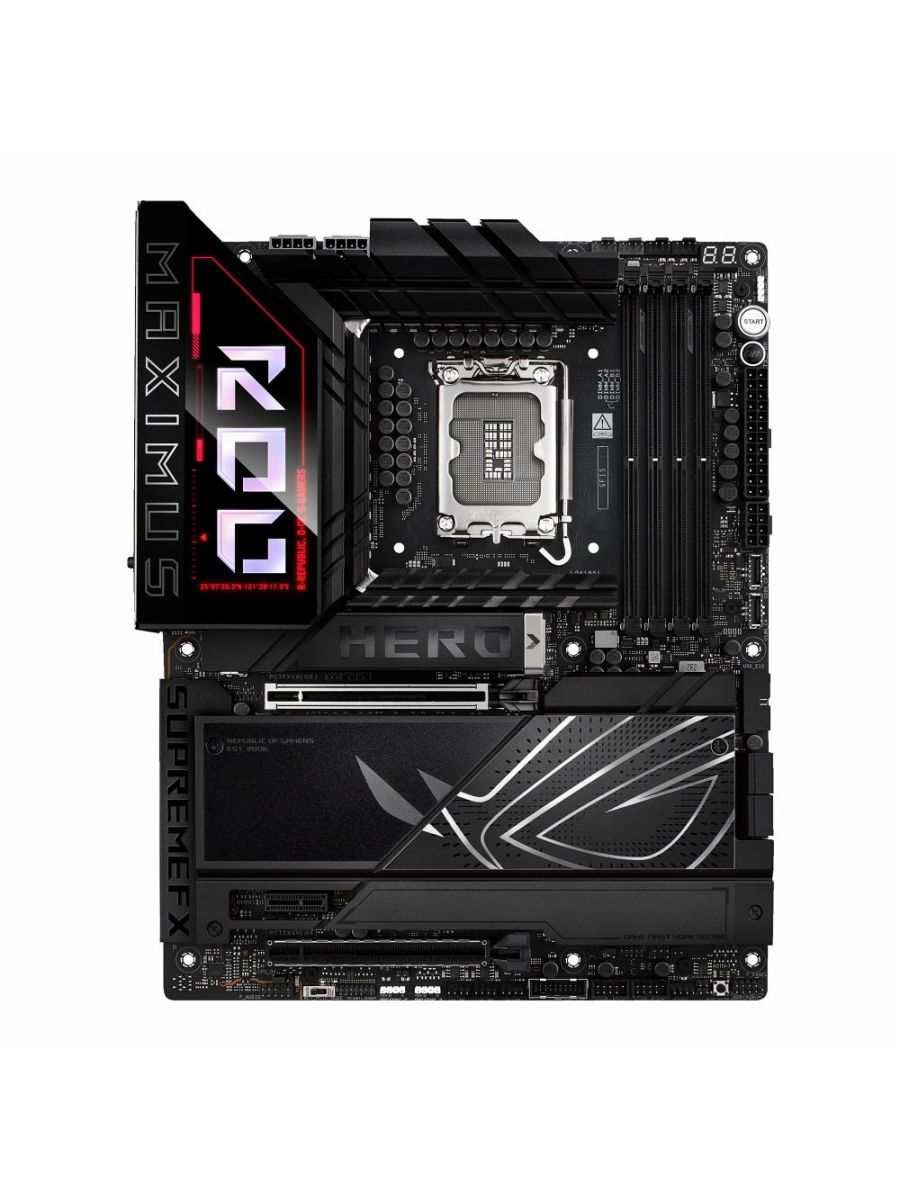

ASUS ROG MAXIMUS Z890 HERO | Socket LGA 1851 | Intel Z890 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1ID0-M0EAY0
EAN	4711387747223
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC Ñompatibility:	Non-ECC
Supported memory clock speed (max):	8800 MHz
Maximum internal memory:	192 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1851 (Socket V1)
Compatible processor series:	Intel Core Ultra (Series 2)
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
USB 3.2 Gen 2x2 connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	4
EPS power connector (8-pin):	Yes
Thunderbolt headers:	1
12V power connector:	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	2
HDMI ports quantity:	1
Microphone in:	Yes
S/PDIF out port:	Yes
Thunderbolt ports quantity:	2
USB connector type:	USB Type-A, USB Type-C
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 7 (802.11be)
Bluetooth:	Yes
Bluetooth version:	5.4
Graphics
Parallel processing technology support:	Not supported
On-board graphics adapter:	No
Expansion slots
PCI Express x1 (Gen 4.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	6
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Clear CMOS button:	Yes
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	10
RAID support:	Yes
RAID levels:	0, 1, 5
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z890
Audio chip:	Realtek ALC4082
Audio output channels:	7.1 channels
Product colour:	Black
Packaging data
Package width:	370 mm
Package depth:	312 mm
Features
Windows operating systems supported:	Windows 11
Packaging data
Package height:	108 mm
Weight & dimensions
Width:	305 mm
Depth:	244 mm

Productomschrijving

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
