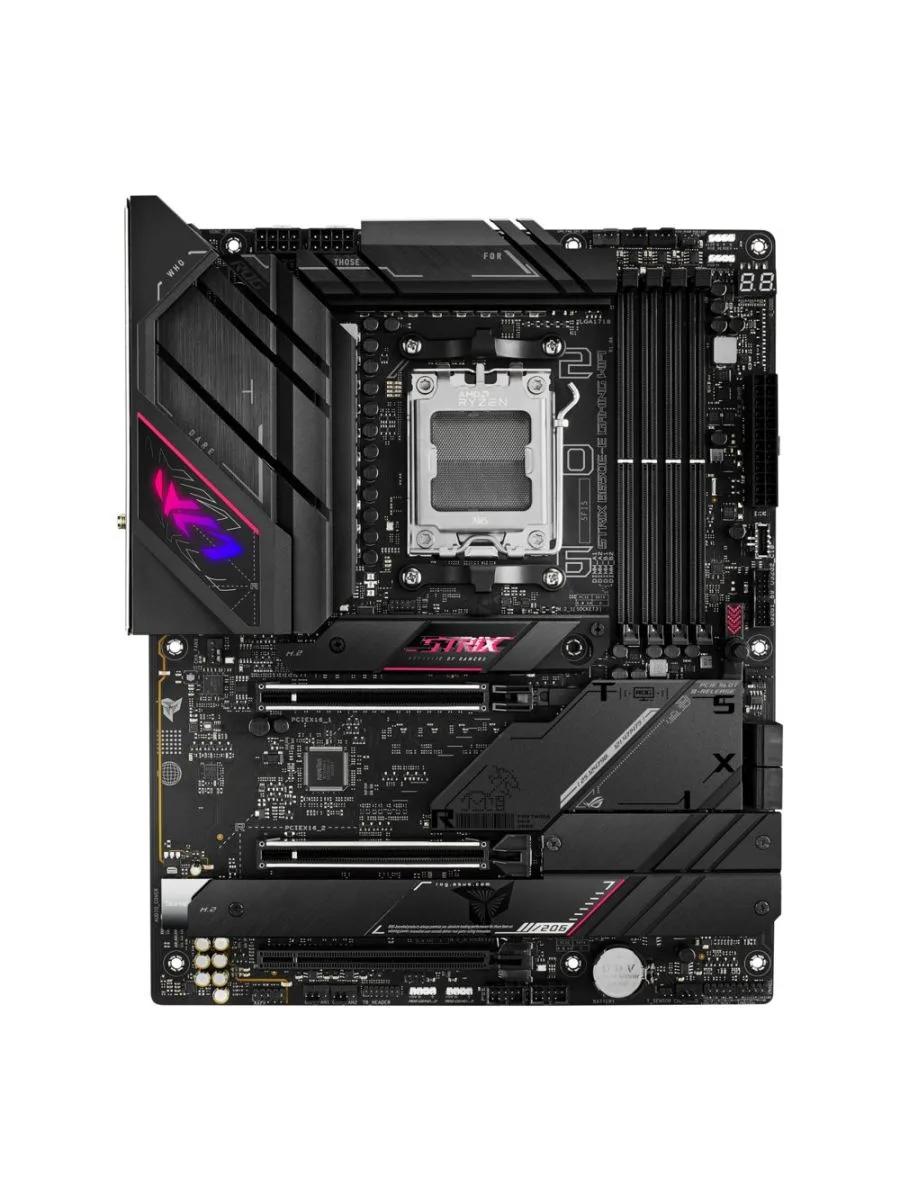

ASUS ROG STRIX B650E-E GAMING WIFI | Socket AM5 | AMD B650E | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1BB0-M0EAY0
EAN	4711081906209
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Yes
Non-ECC:	Yes
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max):	6400 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 7, AMD Ryzen 9 7th Gen
Supported processor sockets:	Socket AM5
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	5
EPS power connector (8-pin):	Yes
Thunderbolt headers:	1
12V power connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Headphone outputs:	1
Line-in:	Yes
Microphone in:	Yes
S/PDIF out port:	Yes
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.2
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x16 (Gen 4.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	2
Number of M.2 (M) slots:	4
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Clear CMOS button:	Yes
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
RAID support:	Yes
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B650
Audio chip:	Realtek ALC4080
Audio output channels:	7.1 channels
Power source type:	ATX
Packaging data
Package width:	343 mm
Package depth:	273 mm
Features
Windows operating systems supported:	Windows 10, Windows 11 x64
Packaging data
Package height:	77 mm
Package weight:	2.44 kg
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
User guide:	Yes
Other features
Back-to-BIOS button:	Yes

Productomschrijving

Upgrade your system from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your configuration into the future, and innovative Q-Design features make setting up your system a breeze. All its benefits are supported by a powerful power solution, hefty heatsinks, and exclusive overclocking technologies to take you to the next level with Ryzen 7000.

A physical button unlocks the security latch of the first PCIe slot with a single press, significantly simplifying the process of removing a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
