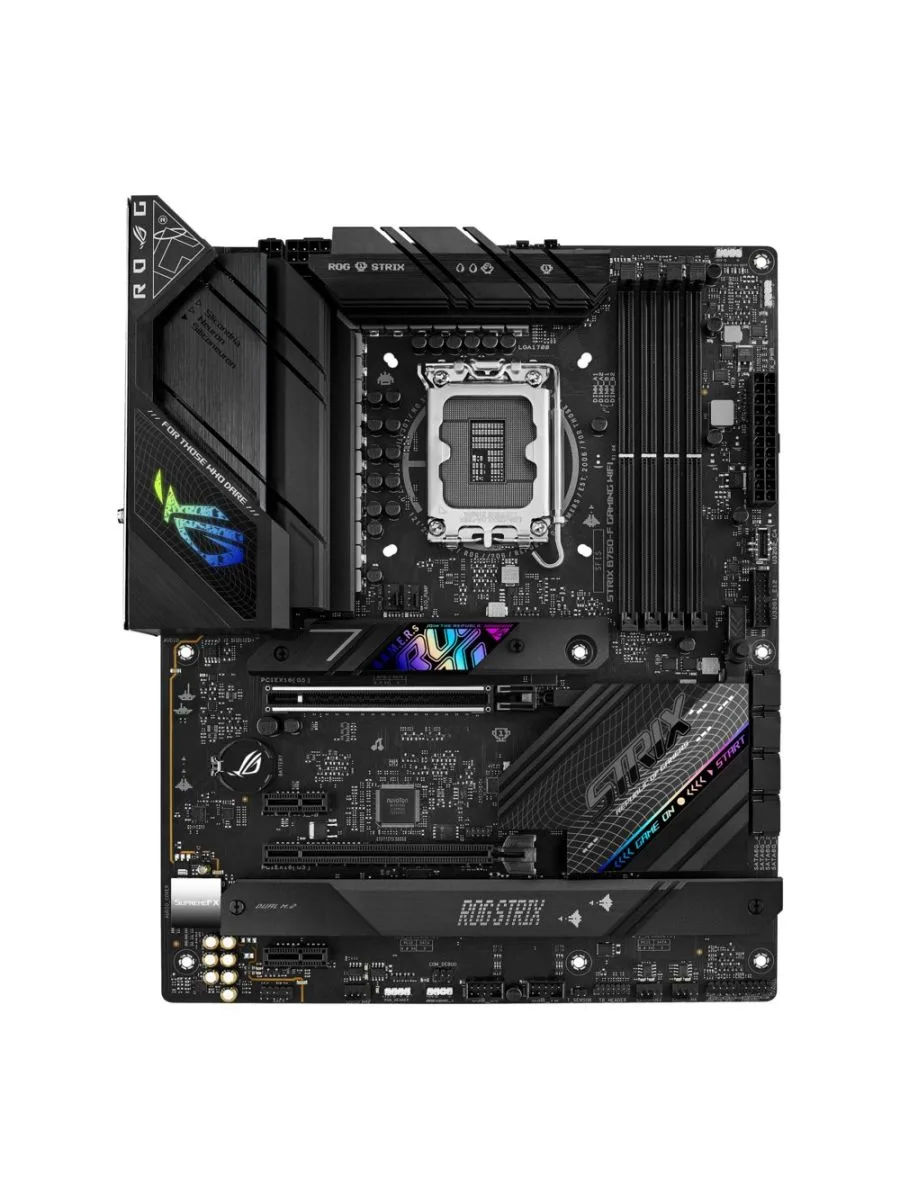

ASUS ROG STRIX B760-F GAMING WIFI | Socket LGA 1700 | Intel B760 | 4× DDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1CT0-M0EAY0
EAN	4711081974666
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	7800,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max):	7800 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Maximum number of SMP processors:	1
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Y
Front panel connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	4
Chassis intrusion connector:	Y
Peripheral (Molex) power connectors (4-pin):	1
EPS power connector (8-pin):	Y
Thunderbolt headers:	1
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Headphone outputs:	1
Line-in:	Y
Microphone in:	Y
S/PDIF out port:	Y
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x1 (Gen 3.x) slots:	2
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	3
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Clear CMOS button:	Y
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	7
RAID support:	Y
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760
Audio chip:	Realtek ALC4080
Audio output channels:	7.1 channels
Cooling type:	Passive
Power source type:	ATX
Packaging data
Package width:	280 mm
Package depth:	71 mm
Features
Windows operating systems supported:	Windows 10, Windows 11
Packaging data
Package height:	265 mm
Package weight:	1.27 kg
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
User guide:	Y
Other features
Back-to-BIOS button:	Y

Productomschrijving

Take a leap into the future with the ROG Strix B760-F, a fantastic upgrade to the 13th generation with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimise delays via super-fast WiFi 6E or 2.5G LAN.
