ASUS ROG STRIX B760-I GAMING WIFI | Socket LGA 1700 | Intel B760 | 2× DDR5 | Mini-ITX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1D90-M0EAY0
EAN	4711081997658
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	2
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
Supported memory clock speed (max):	7600 MHz
Maximum internal memory:	64 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Maximum number of SMP processors:	1
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	1
EPS power connector (8-pin):	Y
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
Headphone outputs:	1
Line-in:	Y
Microphone in:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	128 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	6
RAID support:	Y
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	mini ITX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760
Audio chip:	SupremeFX S1220A
Audio output channels:	7.1 channels
Packaging data
Package width:	226 mm
Package depth:	94 mm
Features
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Packaging data
Package height:	185 mm
Package weight:	1.28 kg
Weight & dimensions
Width:	170 mm
Depth:	170 mm
Height:	50 mm
Packaging content
Cables included:	SATA
User guide:	Y
Other features
Weight:	644 g

Productomschrijving

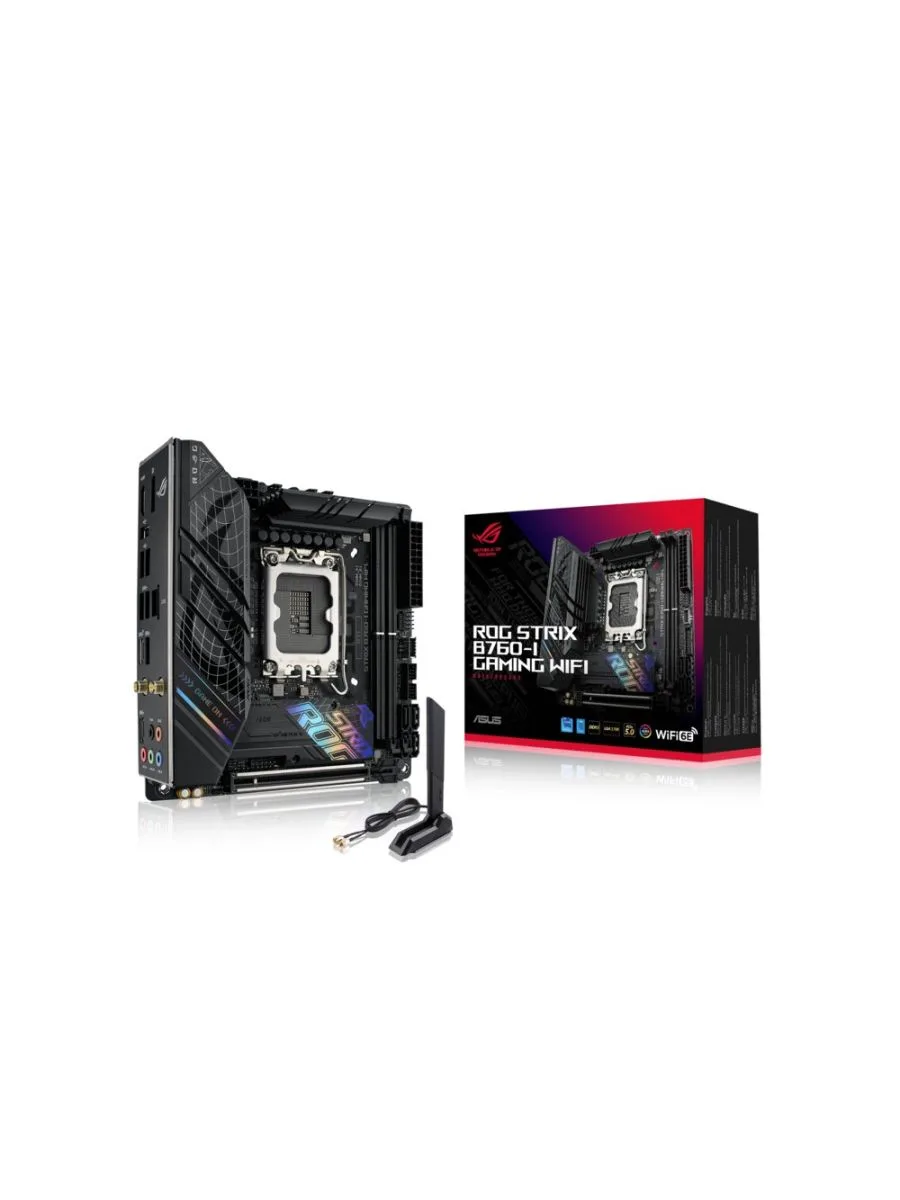

The ASUS ROG STRIX B760-I GAMING WIFI is a mini ITX motherboard. It offers high-end gaming performance and has a robust construction for optimum durability. It features WIFI 6 connectivity for fast wireless connections and has two DDR4 slots for a maximum memory capacity of 64 GB. It also supports various expansion options, including SATA and M.2 storage, and has various connectivity options, including USB 3.2 and LAN. The ASUS ROG STRIX B760-I GAMING WIFI is the perfect choice for gamers and enthusiasts looking for a powerful and reliable mini ITX solution.
