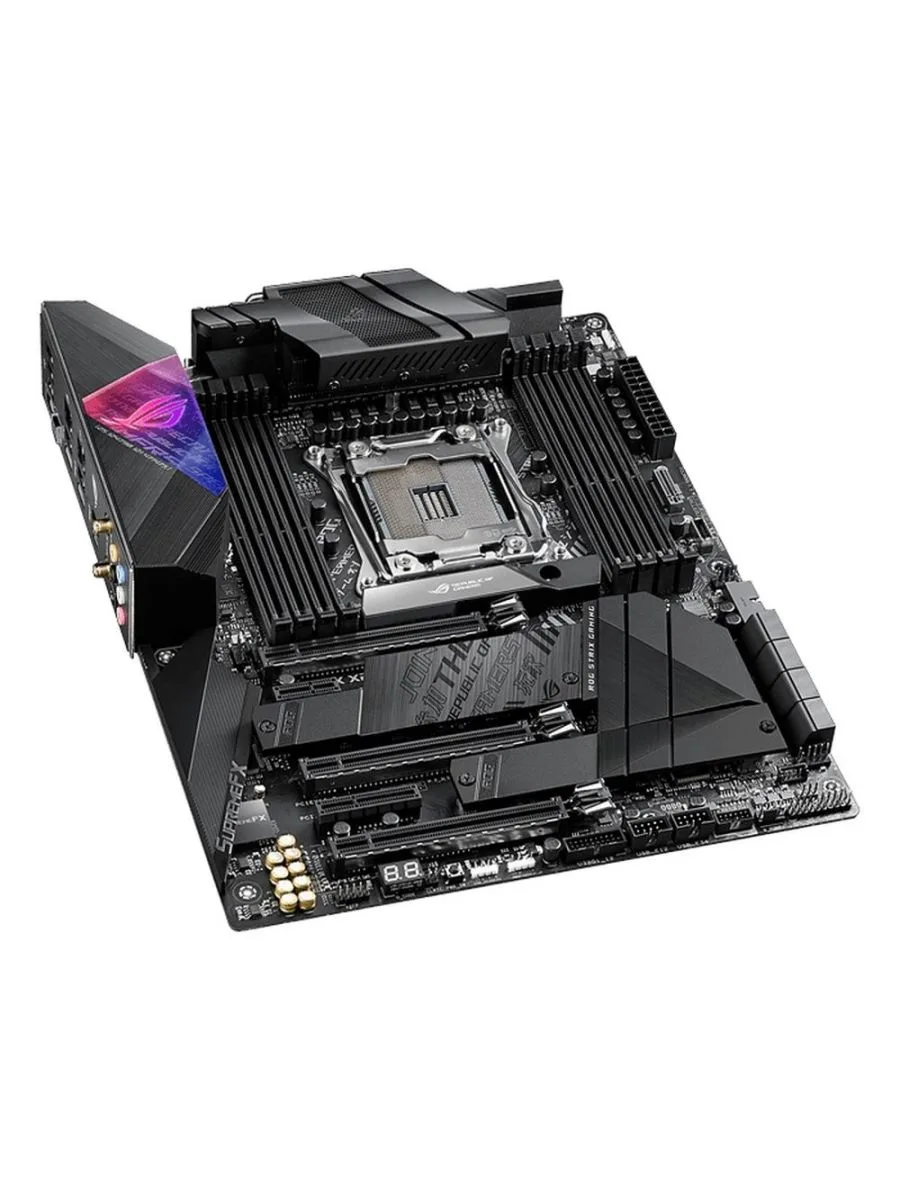

ASUS ROG Strix X299-E Gaming II | Socket LGA 2066 | Intel X299 | 8xDDR4 | ATX | Motherboard

Warranty	1 jaar via Complies
SKU	90MB11A0-M0EAY0
EAN	4718017473231
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	8
Memory slots type:	DIMM
Memory channels:	Quad-channel
Non-ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz
Maximum internal memory:	256 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 2066 (Socket R4)
Compatible processor series:	IntelÂ® Coreâ„¢ X-series
Maximum number of SMP processors:	1
Supported processor sockets:	LGA 2066
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
Number of SATA III connectors:	8
Front panel audio connector:	Y
Front panel connector:	Y
Number of EATX power connectors:	1
CPU fan connector:	Y
Number of chassis fan connectors:	2
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
Headphone outputs:	1
Microphone in:	Y
S/PDIF out port:	Y
Digital audio optical out:	1
WiFi-AP antenna jack:	1
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8125-CG
Wake-on-LAN ready:	Y
Wi-Fi:	Y
Wi-Fi standards:	Wi-Fi 6 (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.0
Graphics
Parallel processing technology support:	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
PCI Express x16 (Gen 3.x) slots:	16
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	128 Mbit
ACPI version:	6.2
Clear CMOS jumper:	Y
System Management BIOS (SMBIOS) version:	3.2
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	PCI Express 3.0, SATA
Number of HDDs supported:	8
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	IntelÂ® X299
Audio chip:	SupremeFX S1220A
Audio output channels:	8.0 channels
Cooling type:	Active
Power source type:	ATX
Number of mounting holes:	9
Windows operating systems supported:	Windows 10 x64
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Drivers included:	Y
Other features
HDD size:	2.5/3.5"
PCI Express x4 (Gen 3.x) slots:	1
Utilities included:	Y

Productomschrijving

The MB ASUS ROG Strix X299-E II is a high-performance motherboard designed for gamers and PC enthusiasts looking for unprecedented power and performance. With its impressive specifications and advanced features, this motherboard is an excellent choice for those looking to build a powerful and versatile gaming PC.
