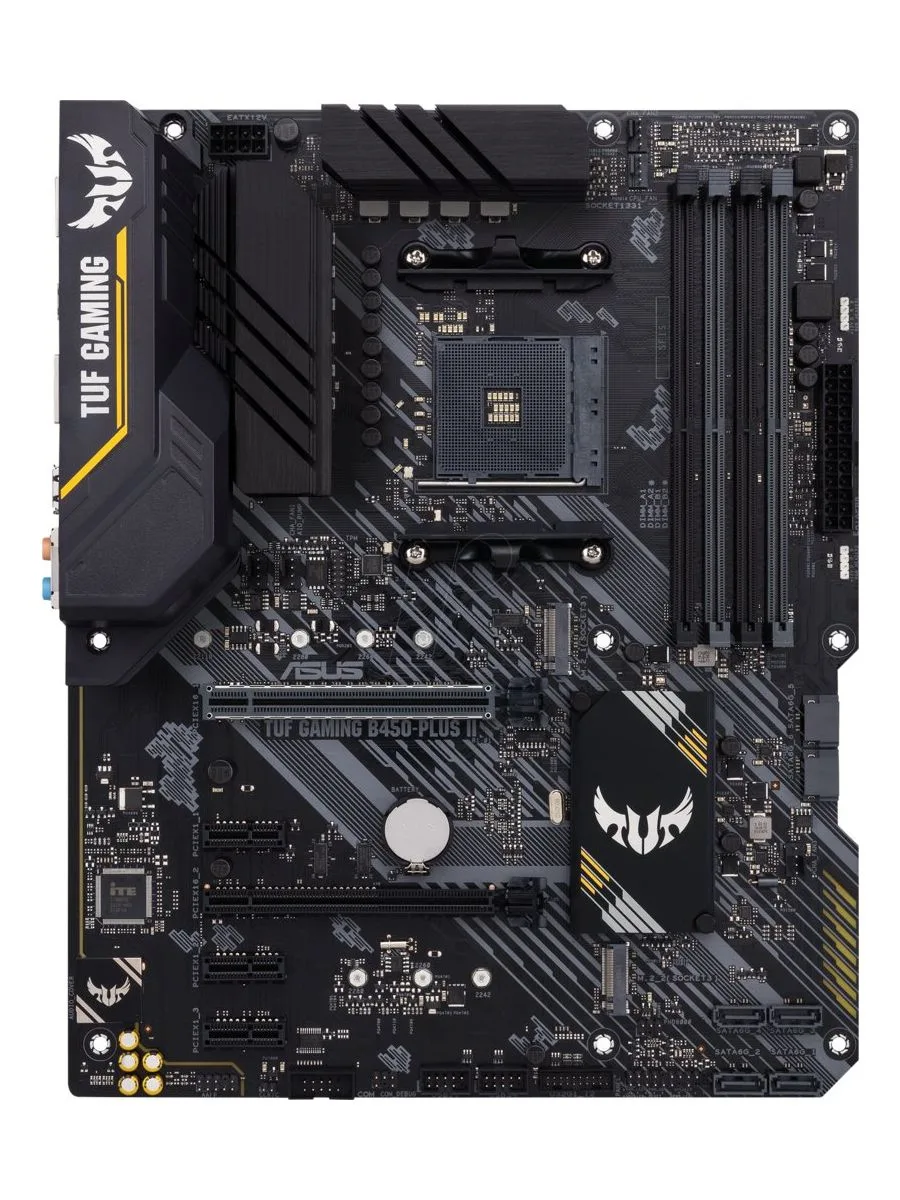

ASUS TUF GAMING B450-PLUS II | Socket AM4 | AMD B450 | 4× DDR4 | ATX | Motherboard

Warranty	3 jaar via fabrikant
SKU	90MB1650-M0EAY0
EAN	4718017957489
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Compatible processor series:	AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	6
Total number of SATA connectors:	6
S/PDIF out connector:	Y
Audio connector:	Y
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
Number of EATX power connectors:	1
CPU fan connector:	Y
Number of chassis fan connectors:	2
Number of COM connectors:	1
TPM connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.0b
DisplayPorts quantity:	1
DisplayPort version:	1.2
USB connector type:	USB Type-A, USB Type-C
Network
Ethernet LAN:	Y
Ethernet interface type:	Gigabit Ethernet
LAN controller:	Realtek L8200A
Wi-Fi:	N
Graphics
Parallel processing technology support:	CrossFireX
Expansion slots
PCI Express x1 (Gen 2.x) slots:	3
PCI Express x16 (Gen 3.x) slots:	1
Number of M.2 (M) slots:	1
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Clear CMOS jumper:	Y
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2,SATA
RAID levels:	0,1,10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B450
Audio chip:	Realtek ALC S1200A
Audio output channels:	8 channels
Cooling type:	Active
Power source type:	ATX
Number of mounting holes:	8
Windows operating systems supported:	Windows 10 x64,Windows 7 x64
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
Drivers included:	Y

Productomschrijving

Discover the ASUS TUF GAMING B450-PLUS II, a motherboard that brings performance and reliability to your gaming or workstation setup. Supporting the latest AMD Ryzen processors, this motherboard provides the speed and power you need for a smooth experience, whether you're gaming or working.

With support for up to 128 GB of high-speed memory and various storage options, you can effortlessly manage all your games, files, and programs. Featuring CrossFireX support, it lets you take your graphics performance to the next level.

Thanks to the HDMI 2.0b port and convenient USB Type-A and Type-C connectors, connecting all your devices is a breeze. The TUF GAMING B450-PLUS II is your dependable partner for a powerful and immersive computing experience.
