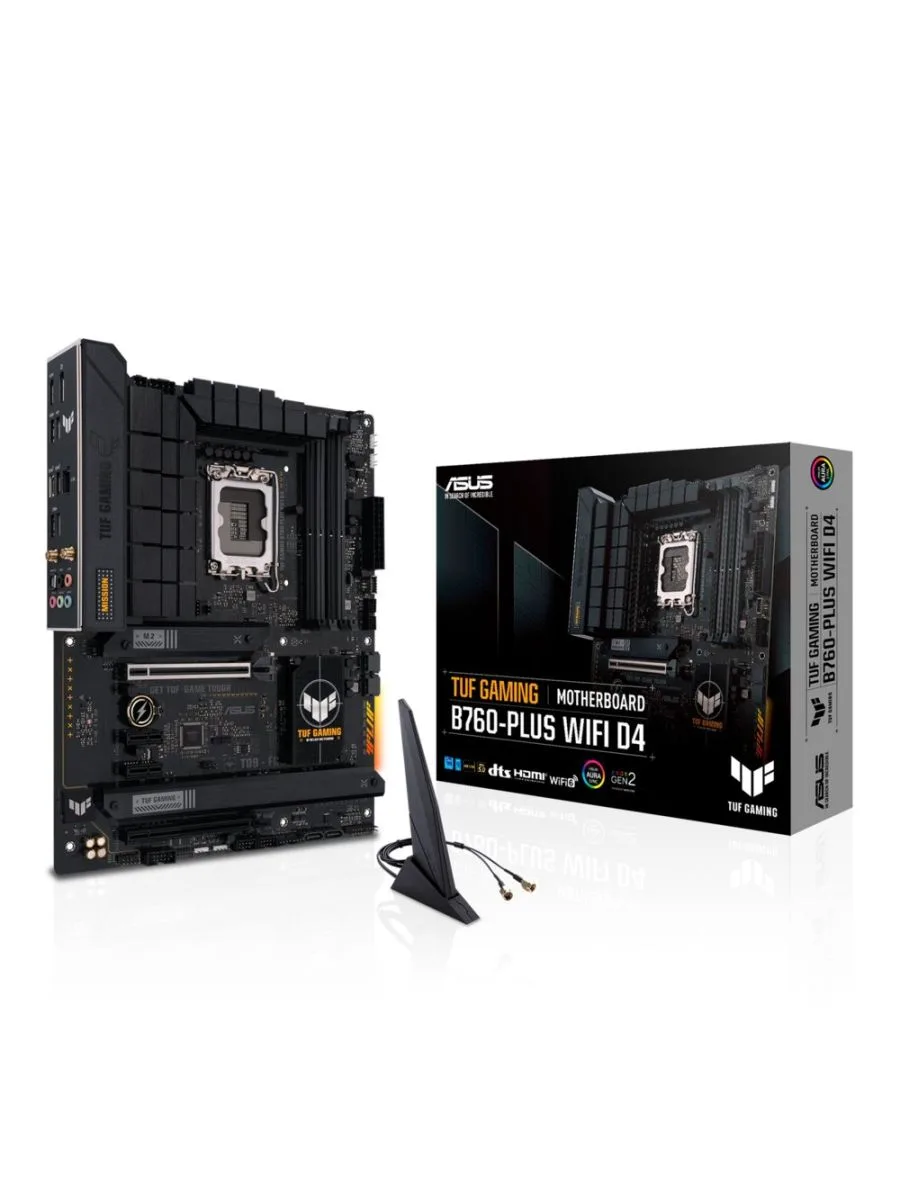

ASUS TUF GAMING B760-PLUS WIFI D4 | Socket LGA 1700 | Intel B760 | 4xDDR4 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90MB1DF0-M0EAY0
EAN	4711387009499
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	No
Non-ECC:	Yes
Maximum internal memory:	192 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ® Gold
Maximum number of SMP processors:	1
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	4
Peripheral (Molex) power connectors (4-pin):	1
EPS power connector (8-pin):	Yes
Number of COM connectors:	1
Thunderbolt headers:	1
12V power connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Headphone outputs:	1
Line-in:	Yes
Microphone in:	Yes
S/PDIF out port:	Yes
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.2
Graphics
Parallel processing technology support:	Not supported
On-board graphics adapter:	No
Expansion slots
PCI Express x1 (Gen 3.x) slots:	2
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	3
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	128 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	7
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760
Audio output channels:	7.1 channels
Product colour:	Black
Cooling type:	Passive
Power source type:	ATX
Packaging data
Package width:	331 mm
Package depth:	76 mm
Features
Windows operating systems supported:	Windows 10, Windows 11
Packaging data
Package height:	266 mm
Package weight:	1.98 kg
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
User guide:	Yes

Productomschrijving

A powerful ATX motherboard specially designed for gamers who demand top-notch performance. With an Intel processor socket LGA 1700, this motherboard offers compatibility with a wide range of Intel® processors, including Celeron®, Core™ i3, i5, i7, and i9, allowing you to harness the ultimate performance.

This motherboard supports DDR4-SDRAM and features DIMM memory slots, enabling you to install up to 192 GB of internal memory for smooth multitasking and a responsive system experience. With support for M.2 and SATA III, it provides flexible storage options for both HDDs and SSDs, while RAID configurations (0, 1, 5, 10) offer additional data protection and speed.
