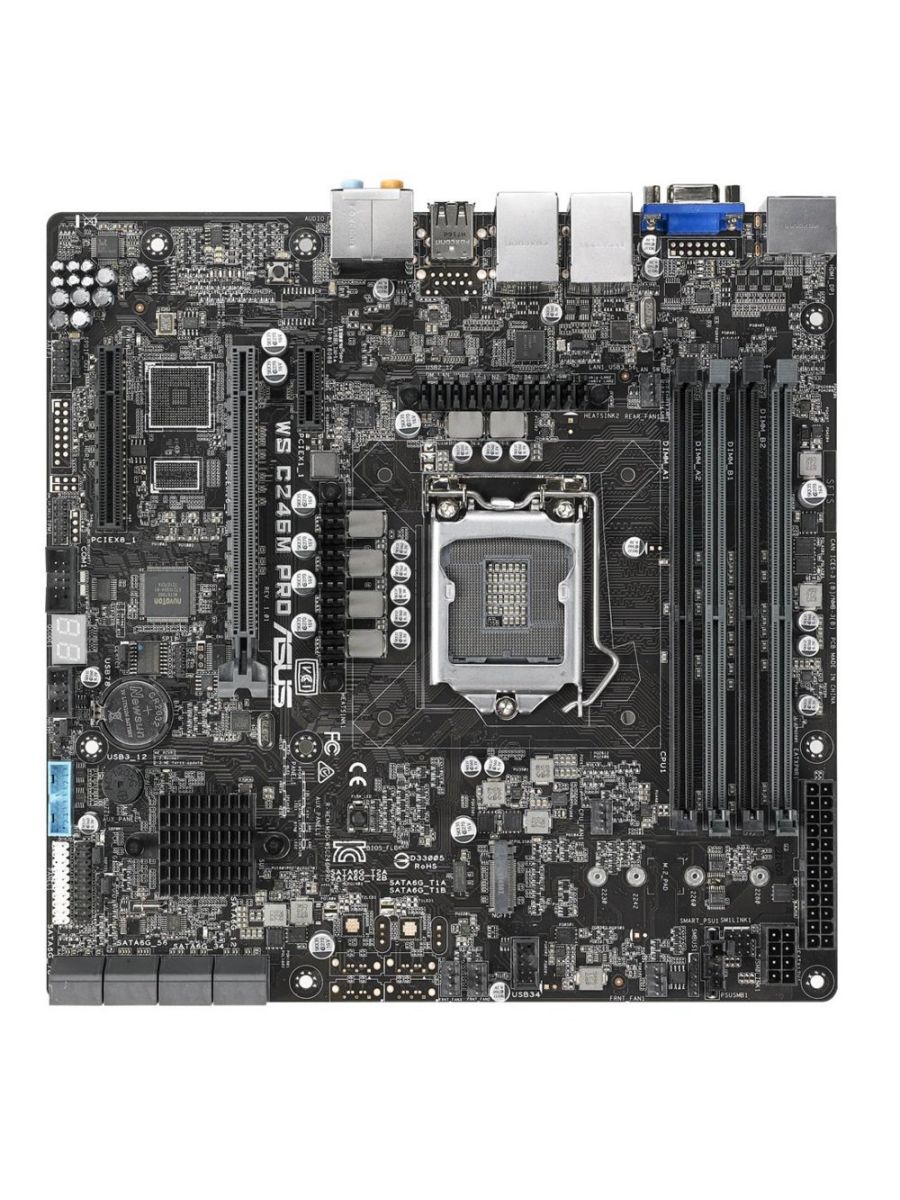

ASUS WS C246M PRO | Socket LGA 1151 | Intel C246 | 4xDDR4 | Micro-ATX | Motherboard

Warranty	2 jaar via Complies
SKU	90SW00E0-M0EAY0
EAN	4712900981636
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Supported memory clock speeds:	2133,2400,2666 MHz
Maximum internal memory:	64 GB
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1151 (Socket H4)
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® PentiumÂ®, IntelÂ® XeonÂ®
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
ATX Power connector (24-pin):	Y
Number of COM connectors:	1
TPM connector:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
Ethernet LAN (RJ-45) ports:	2
VGA (D-Sub) ports quantity:	1
HDMI ports quantity:	1
DVI-D ports quantity:	1
Headphone outputs:	1
Microphone in:	Y
Network
Ethernet LAN:	Y
LAN controller:	IntelÂ® I210-AT, Intel I219LM
Expansion slots
PCI Express x1 (Gen 2.x) slots:	1
PCI Express x16 (Gen 3.x) slots:	1
Storage controllers
Supported storage drive interfaces:	SATA III
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel C246
Audio output channels:	8.0 channels
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	244 mm
Depth:	244 mm
Height:	73 mm
Packaging content
Cables included:	SATA
Manual:	Y
Other features
PCI Express x4 (Gen 3.x) slots:	1
Maximum UDIMM memory:	64 GB
Weight:	577 g
Quick installation guide:	Y

Productomschrijving

A reliable and powerful motherboard designed specifically for professional workstations. Featuring the Intel C246 chipset and support for Intel 8th and 9th generation Core processors for socket LGA 1151 (Socket H4), this micro ATX motherboard offers excellent performance and reliability for demanding professional tasks.
