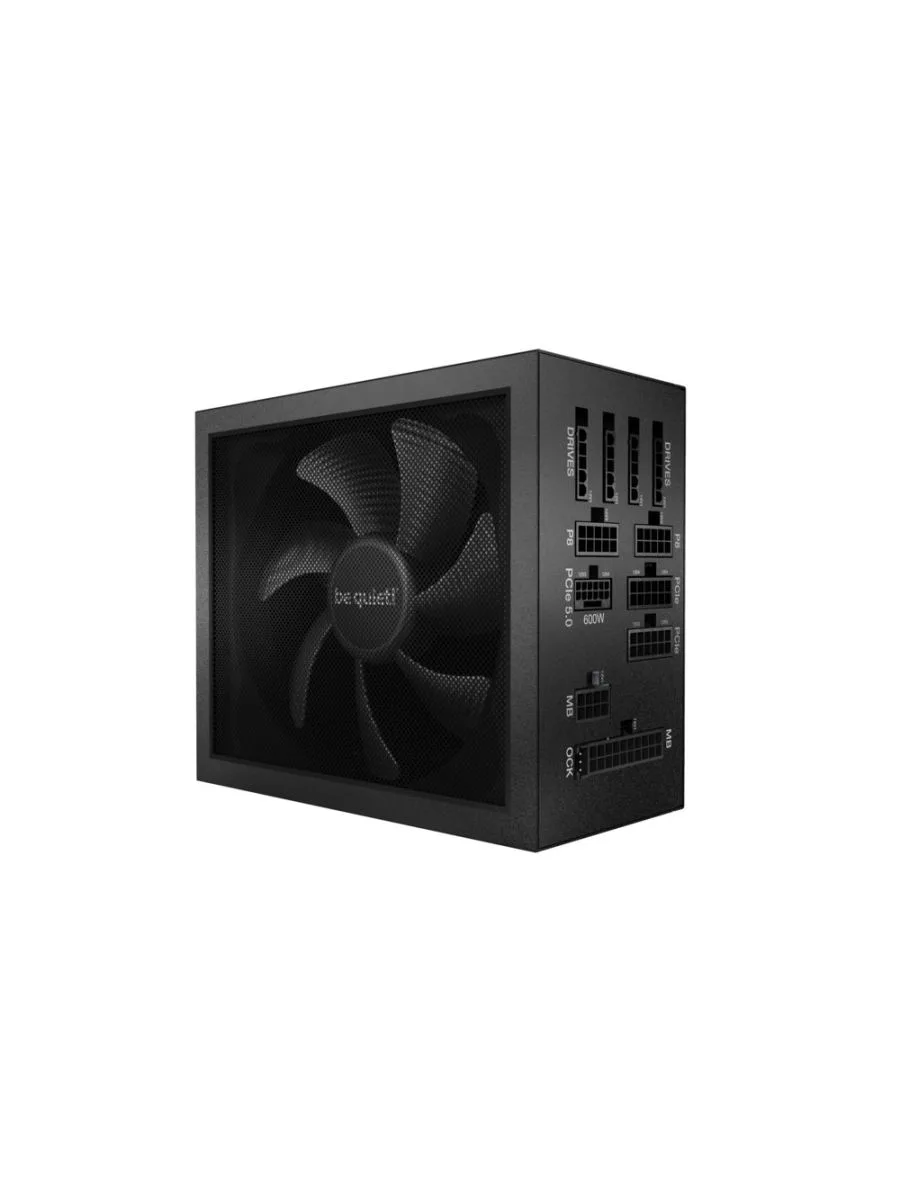

be quiet! Dark Power 13 | 750 Watt Titanium ATX PSU | Modular | Power Supply | PSU

Warranty	2 jaar via Complies
SKU	BN333
EAN	4260052189382
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	750 W
Peak power:	850 W
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Input current:	9 A
Maximum input current (@110V):	4.5 A
Maximum input current (@220V):	9 A
Power factor:	0.98
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	110 W
Combined power (+12V):	744 W
Combined power (+5V):	110 W
Combined power (-12V):	6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	22 A
Max output current (+12V1):	25 A
Max output current (+12V2):	25 A
Max output current (+12V3):	30 A
Max output current (+12V4):	30 A
Max output current (+5V):	22 A
Max output current (-12V):	0.5 A
Max output current (+5Vsb):	3 A
Hold time:	22.6 ms
Efficiency:	93.8%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	60 cm
Number of SATA power connectors:	12
Number of PATA power connectors:	3
SATA power cable length:	1050 mm
Peripheral (Molex) power connectors (4-pin):	1
PCI Express power connectors (6+2 pin):	4
PCI Express power connectors (8-pin):	1
CPU power connector (4+4 pin):	Y
ATX power connector (20+4 pin):	Y
Floppy disk drive connector:	N
PCI Express connector:	Y
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Titanium
Supported motherboard form factors:	ATX
ATX version:	3.0
EPS version:	2.92
Silent mode:	Y
Noise level:	18.8 dB
Bearing technology:	FDB
ECC:	Y
Certification:	BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÃœV, UKCA, Triman
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	13.5 cm
Number of fans:	1 fan(s)
Fan speed:	0 - 2100 RPM
Fan location:	Top
Illumination:	N
Built-in display:	N
Packaging content
Cable tie(s) included:	Y
Technical details
Sustainability certificates:	ENERGY STAR, ErP, RoHS, WEEE
Warranty period:	10 year(s)
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance:	Y
Weight & dimensions
Width:	150 mm
Depth:	86 mm
Height:	175 mm
Weight:	1.96 kg
Packaging data
Package width:	120 mm
Package depth:	350 mm
Package height:	270 mm
Package weight:	4.23 kg
Package type:	Box
Logistics data
Shipping (inner) case length:	50.4 cm
Shipping (inner) case width:	30.5 cm
Shipping (inner) case height:	36.8 cm
Pallet gross weight (air):	18.2 kg

Productomschrijving

The be quiet! Dark Power 13 is a powerful and reliable power supply for your desktop computer. With a total power output of 750 W and a peak power of 850 W, this power supply provides more than enough power to drive even the most demanding hardware. The motherboard power connector features a 20+4 pin ATX connection.
