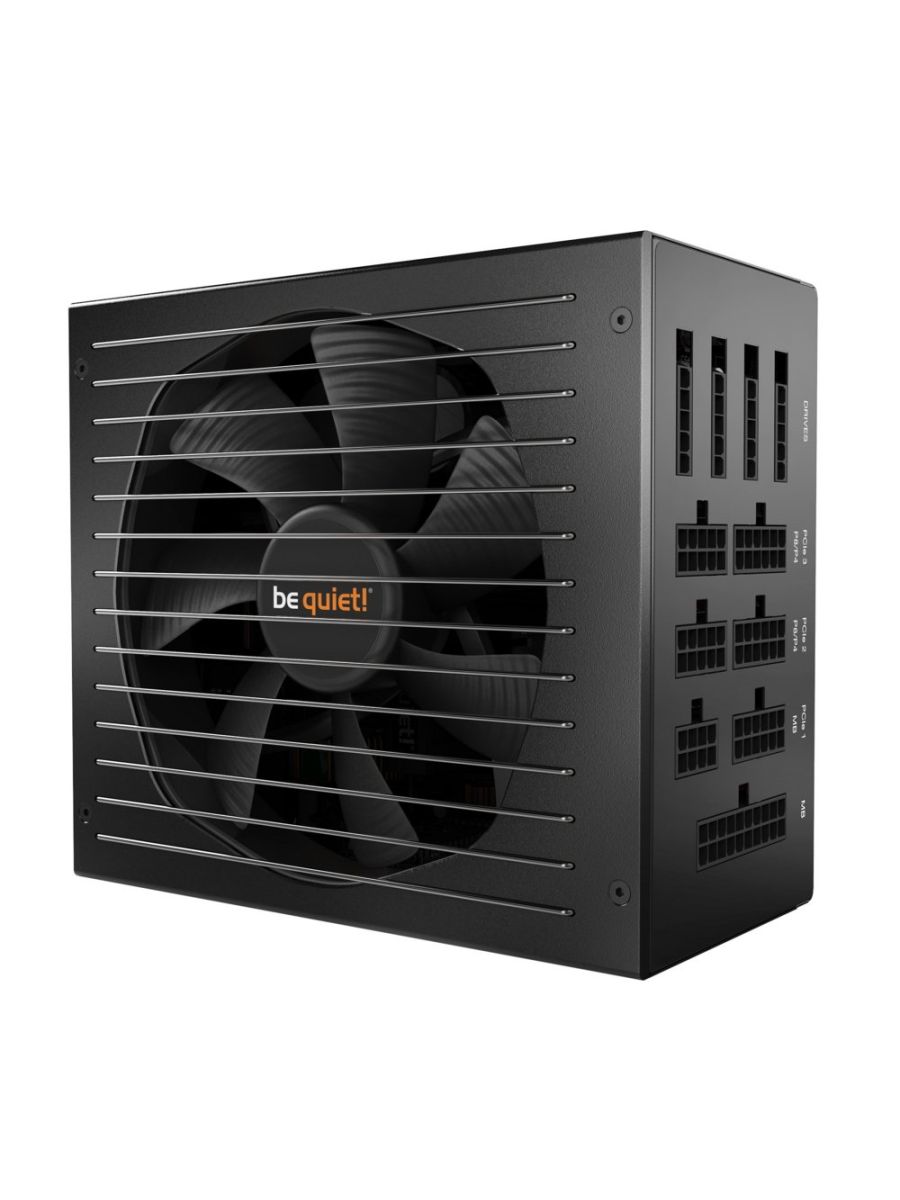

be quiet! Straight Power 11 | 1000 Watt Gold ATX PSU | Power Supply | PSU

Warranty	5 jaar fabrieksgarantie
SKU	BN285
EAN	4260052185803
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	1000 W
Peak power:	1070 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	13 A
Power factor:	0.99
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	150 W
Combined power (+12V):	999.6 W
Combined power (+5V):	150 W
Combined power (-12V):	6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	25 A
Max output current (+12V1):	22 A
Max output current (+12V2):	22 A
Max output current (+12V3):	30 A
Max output current (+12V4):	30 A
Max output current (+5V):	25 A
Max output current (-12V):	0.5 A
Max output current (+5Vsb):	3 A
Hold time:	19.8 ms
Efficiency:	93%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	60 cm
Number of SATA power connectors:	11
Number of PATA power connectors:	4
SATA power cable length:	550 mm
PCI Express power connectors (6+2 pin):	6
PCI Express power cable length:	60 cm
CPU power connector (4+4 pin):	Y
CPU power cable length:	70 cm
Floppy disk drive connector:	Y
Cabling type:	Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
ATX version:	2.4
EPS version:	2.92
Silent mode:	Y
Bearing technology:	FDB
Certification:	CE, FCC, TÃœV, cTUVus, RCM, BSMI, CU
Design
Product colour:	Black
Fan diameter:	13.5 cm
Number of fans:	1 fan(s)
Illumination:	N
On/off switch:	Y
Technical details
Sustainability certificates:	RoHS, ENERGY STAR
Weight & dimensions
Width:	150 mm
Depth:	170 mm
Height:	86 mm
Weight:	1.85 kg
Packaging data
Package width:	248 mm
Package depth:	328 mm
Package height:	102 mm
Package weight:	3.57 kg
Other features
Screws included:	Y
Cable ties included:	Y
Noise level (silent mode, <30%):	11.15 dB
Noise level (quiet mode, 50%):	11.8 dB
Noise level (full-load mode, 100%):	32.1 dB
Manual:	Y
Cable management:	Y

Productomschrijving

World Class Quiet and Efficiency
be quiet! Straight Power 11 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.

- Virtually inaudible operation thanks to a SilentWings® 3 135mm fan
- Big funnel-shaped fan opening of the PSU case for high airflow intake
- Wire-free on the DC side inside the PSU for enhanced cooling and longevity
- Full cable management for maximum build flexibility
- 80PLUS® Gold certification with an efficiency of up to 93%
- Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
- Four high-performance 12V-rails
- Powerful multi-GPU support with six PCI-Express connectors
- Japanese 105°C-rated capacitors ensure stability and reliability
- Power signal stability unmatched in its class
- ErP and Energy Star 6.1 ready
- 5-year manufacturer’s warranty
- Product conception, design and quality control in Germany
