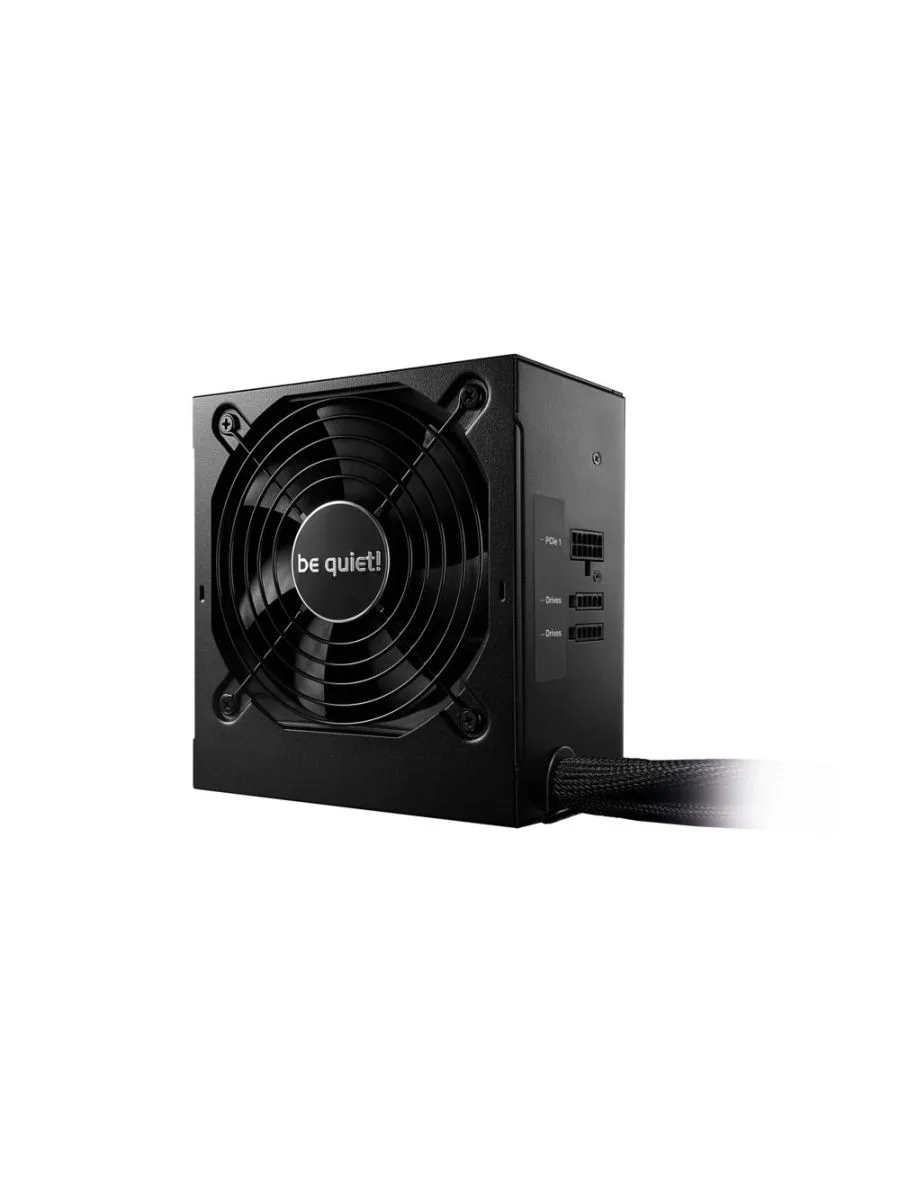

be quiet! System Power 9 400W CM | 400 Watt Bronze ATX PSU | Semi Modular | Power Supply | PSU

Warranty	2 jaar via Complies
SKU	BN300
EAN	4260052187210
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	400 W
AC input voltage:	200 - 240 V
AC input frequency:	50 Hz
Input current:	4 A
Power factor:	0.95
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	103 W
Combined power (+12V):	384 W
Combined power (+5V):	103 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	24 A
Max output current (+12V1):	22 A
Max output current (+12V2):	18 A
Max output current (+5V):	15 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Hold time:	17 ms
Efficiency:	89%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	45 cm
Number of SATA power connectors:	5
Number of PATA power connectors:	2
SATA power cable length:	550,670 mm
PCI Express power connectors (6+2 pin):	2
PCI Express power cable length:	50 cm
CPU power connector (4+4 pin):	Y
CPU power cable length:	60 cm
Floppy drive power connector:	1
Cabling type:	Semi-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Bronze
ATX version:	2.51
Bearing technology:	Sleeve
Certification:	CE, CB, TÃœV, RCM, CU
Compatible products:	Intel C6/C7
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Packaging content
Cables included:	PCIe, SATA
Technical details
Sustainability certificates:	RoHS, ENERGY STAR
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
Weight:	1.49 kg
Packaging data
Manual:	Y
Package width:	97 mm
Package depth:	268 mm
Package height:	195 mm
Package weight:	2.11 kg
Package type:	Box
Logistics data
Master (outer) case width:	311 mm
Master (outer) case length:	215 mm
Master (outer) case height:	556 mm
Master (outer) case weight:	13.4 kg
Harmonized System (HS) code:	84733020
Quantity per master (outer) case:	6 pc(s)
Other features
Screws included:	Y
Noise level (silent mode, <30%):	9.3 dB
Noise level (quiet mode, 50%):	9.7 dB
Noise level (full-load mode, 100%):	15 dB

Productomschrijving

The be quiet! System Power 9 | 400W CM is a reliable and efficient power supply unit designed to meet the energy needs of your PC. With a total power output of 400 W and an AC input voltage of 200 - 240 V, this power supply provides the necessary power for stable operation of your system.

The power supply features a 20+4 pin ATX motherboard connector, ensuring compatibility with a variety of motherboards.
