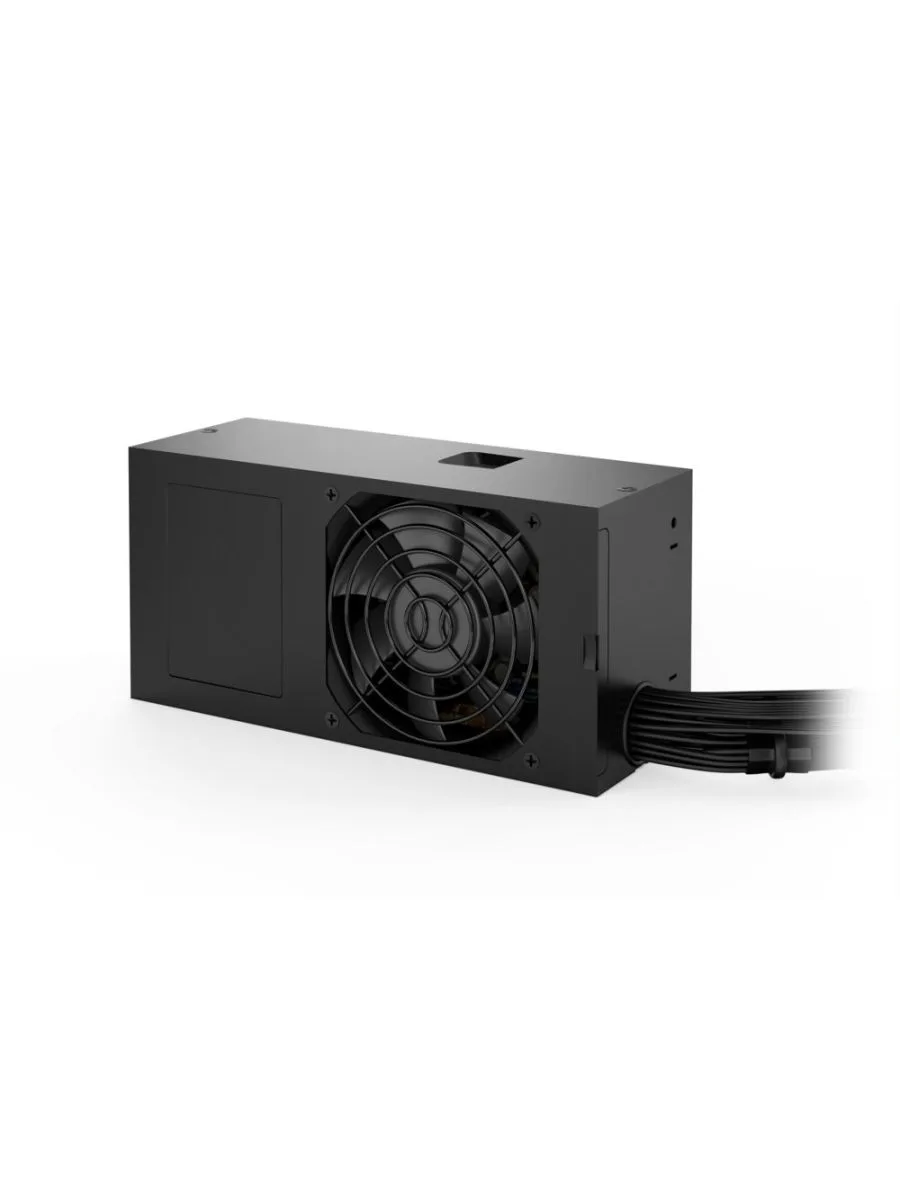

be quiet! TFX Power 3 | 300 Watt Gold TFX PSU | Power Supply | PSU

Warranty	3 jaar via be Quiet
SKU	BN323
EAN	4260052188293
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	300 W
Peak power:	350 W
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Input current:	4/2 A
Maximum input current (@110V):	4 A
Maximum input current (@220V):	2 A
Power factor:	0.98
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	103 W
Combined power (+12V):	288 W
Combined power (+5V):	103 W
Max output current (+3.3V):	18 A
Max output current (+12V1):	13 A
Max output current (+12V2):	13 A
Max output current (+5V):	18 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Hold time:	29 ms
Efficiency:	90.6%
Power protection features:	Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	35 cm
Number of SATA power connectors:	3
SATA power cable length:	300,450,600 mm
Peripheral (Molex) power connectors (4-pin):	2
Peripheral (Molex) power cable length:	300,450 mm
PCI Express power connectors (6+2 pin):	1
PCI Express power cable length:	40 cm
CPU P4 connector (4-pin):	1
CPU power cable length:	35 cm
Floppy drive power connector:	1
Floppy disk drive cable length:	60 cm
Cabling type:	Non-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	TFX
80 PLUS certification:	80 PLUS Gold
ATX version:	2.52
EPS version:	2.92
Noise level:	21.7 dB
Mean time between failures (MTBF):	100000 h
Safety:	CE, CB, TÃœV, CU
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	8 cm
Number of fans:	1 fan(s)
Technical details
Sustainability compliance:	Y
Sustainability certificates:	ENERGY STAR, ErP, RoHS, WEEE
Weight & dimensions
Width:	85 mm
Depth:	175 mm
Height:	65 mm
Weight:	1.1 kg
Packaging data
Package width:	159 mm
Package depth:	80 mm
Package height:	215 mm
Package weight:	1.43 kg
Package type:	Box
Logistics data
Shipping (inner) case length:	47.4 cm
Shipping (inner) case width:	27.5 cm
Shipping (inner) case height:	19.5 cm
Quantity per shipping (inner) case:	6 pc(s)
Shipping (inner) case weight:	9.39 kg
Other features
Harmonized System (HS) code:	84733020

Productomschrijving

The be quiet! TFX POWER 3 300W Gold is an advanced and energy-efficient power supply unit ideal for your compact or media PC. With a total power of 300 watts and a peak power of 350 watts, this PSU delivers reliable performance and stable voltages, even for systems with a PCIe graphics card.

Thanks to its 80 PLUS Gold certification, the TFX POWER 3 300W Gold guarantees high energy efficiency and helps save on power costs in the long run. The active cooling, featuring a quiet 8 cm fan, ensures cool operation with minimal noise, contributing to a quiet work environment.

Featuring a 20+4 pin ATX motherboard connector and cables of 35 cm for the motherboard, and 300, 450, and 600 mm for SATA power, this PSU offers flexibility in cable management and installation. Its black color and compact TFX form factor (85 mm wide, 175 mm deep, and 65 mm high) make the TFX POWER 3 300W Gold an aesthetically pleasing and space-saving choice for your PC.

The combination of quiet operation, reliability, and advanced features makes the be quiet! TFX POWER 3 300W Gold the perfect choice for any PC with a TFX form factor that requires both performance and efficiency.

More…
