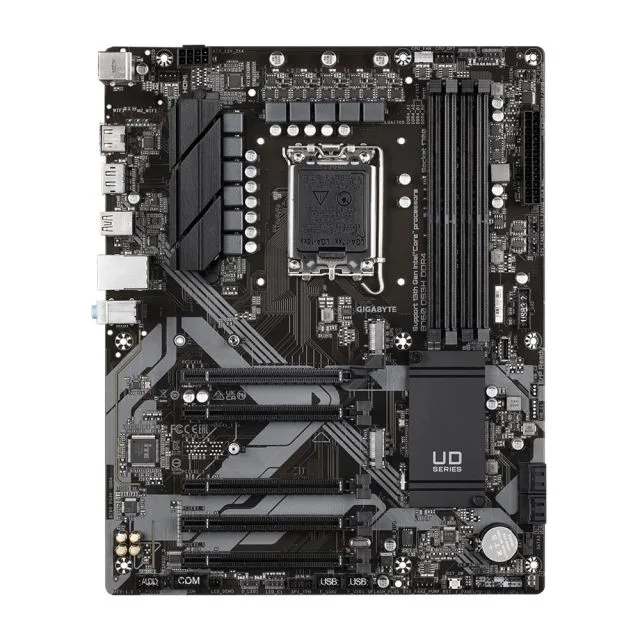

Gigabyte B760 GAMING X DDR4 | Socket LGA 1700 | Intel B760 | 4xDDR4 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	B760-GAMING-X-DDR4
EAN	4719331850906
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® PentiumÂ® Gold
Internal I/O
USB 2.0 connectors:	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
Number of SATA III connectors:	4
S/PDIF out connector:	Y
Audio connector:	Y
Front panel audio connector:	Y
Front panel connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	3
EPS power connector (8-pin):	Y
TPM connector:	Y
Serial port headers:	1
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.0
DisplayPorts quantity:	1
DisplayPort version:	1.2
USB connector type:	USB Type-A, USB Type-C
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	N
Graphics
On-board graphics adapter:	Y
Graphics adapter family:	Intel
Graphics adapter:	HD Graphics
Maximum resolution:	4096 x 2304 pixels
HDCP:	Y
On-board graphics adapter model:	IntelÂ® HD Graphics
Expansion slots
PCI Express x16 (Gen 3.x) slots:	2
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	3
BIOS
BIOS type:	EFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Y
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	PCI Express 4.0, SATA III
Number of HDDs supported:	4
RAID support:	Y
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760 Express
Audio output channels:	7.1 channels
PC health monitoring:	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Bundled software:	NortonÂ® Internet Security (OEM version) LAN bandwidth management software

Productomschrijving

Dive deep into the game with support for DDR4-SDRAM and an impressive maximum internal memory of 128 GB via DIMM memory slots. You have the freedom to configure your system as you wish.

Storage is no issue with support for PCI Express 4.0 and SATA III interfaces for both HDDs and SSDs. And with RAID options (0, 1, 5, 10), you can keep your data secure and optimize performance.
