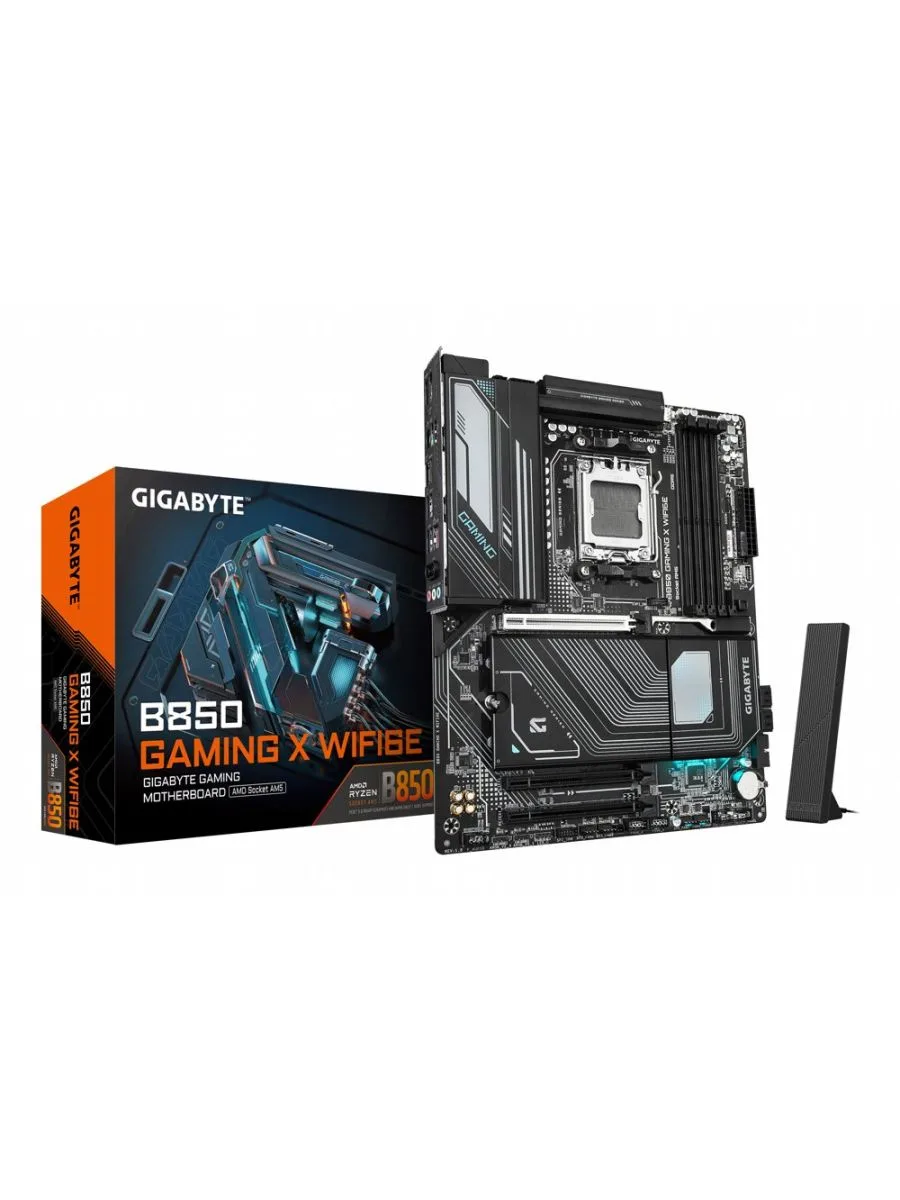

Gigabyte B850 GAMING X WIFI6E | Socket AM5 | AMD B850 | 4xDDR5 | ATX | Motherboard

The Gigabyte B850 GAMING X WIFI6E is a powerful ATX motherboard that strikes an excellent balance between performance, connectivity and reliability. Designed for modern AMD Ryzen processors with Socket AM5, it supports the Ryzen 7000, 8000 and 9000 series, making it a future-ready foundation for both gaming systems and productive workstations.

In terms of memory, the B850 GAMING X WIFI6E features four DDR5 slots supporting up to 256 gigabytes of RAM. Thanks to compatibility with AMD EXPO profiles, speeds of up to DDR5 8200 (OC) can be achieved, delivering blazing-fast performance and high efficiency in demanding workloads.

The power delivery system is solidly built with a 12-phase digital VRM design using premium 60-amp DrMOS components. This configuration ensures stable voltage and consistent performance even under heavy, sustained loads. Cooling is equally well engineered with aluminum heatsinks covering the power stages and an M.2 Thermal Guard that keeps high-speed SSDs running at optimal temperatures.

When it comes to storage, this motherboard is impressively well equipped. It includes three M.2 slots, one of which connects directly to the CPU and supports PCIe 5.0 x4 for the latest generation of NVMe SSDs. The other two M.2 slots run through the chipset and offer PCIe 4.0 x4 support. Additionally, there are four SATA 6 Gb/s ports for traditional hard drives and SATA-based SSDs. For graphics cards, a full PCIe x16 slot with PCIe 5.0 support ensures that high-end GPUs can perform at their best.

Connectivity on the B850 GAMING X WIFI6E is thoroughly modern. It comes with 2.5 Gigabit LAN for fast wired networking and Wi-Fi 6E for high-speed wireless connectivity with low latency. Bluetooth 5.3 is also included for seamless pairing with modern peripherals. The rear I/O panel features multiple USB 3.2 Gen 2 ports, a USB Type-C connector, HDMI 2.1, and DisplayPort 1.4 for systems that use integrated graphics.

The audio system is powered by a Realtek HD audio codec with 7.1-channel support, providing rich, clear and detailed sound. Ease of use is also a focus, with features such as EZ-Latch, which simplifies the installation of M.2 drives and GPUs, and Q-Flash Plus, allowing BIOS updates without needing a CPU or memory installed.

In summary, the Gigabyte B850 GAMING X WIFI6E delivers an impressive combination of performance, stability and cutting-edge technology. With support for PCIe 5.0, fast DDR5 memory, and advanced wireless connectivity, it is an excellent choice for gamers, creators and professionals seeking a reliable and future-ready AM5 platform.
