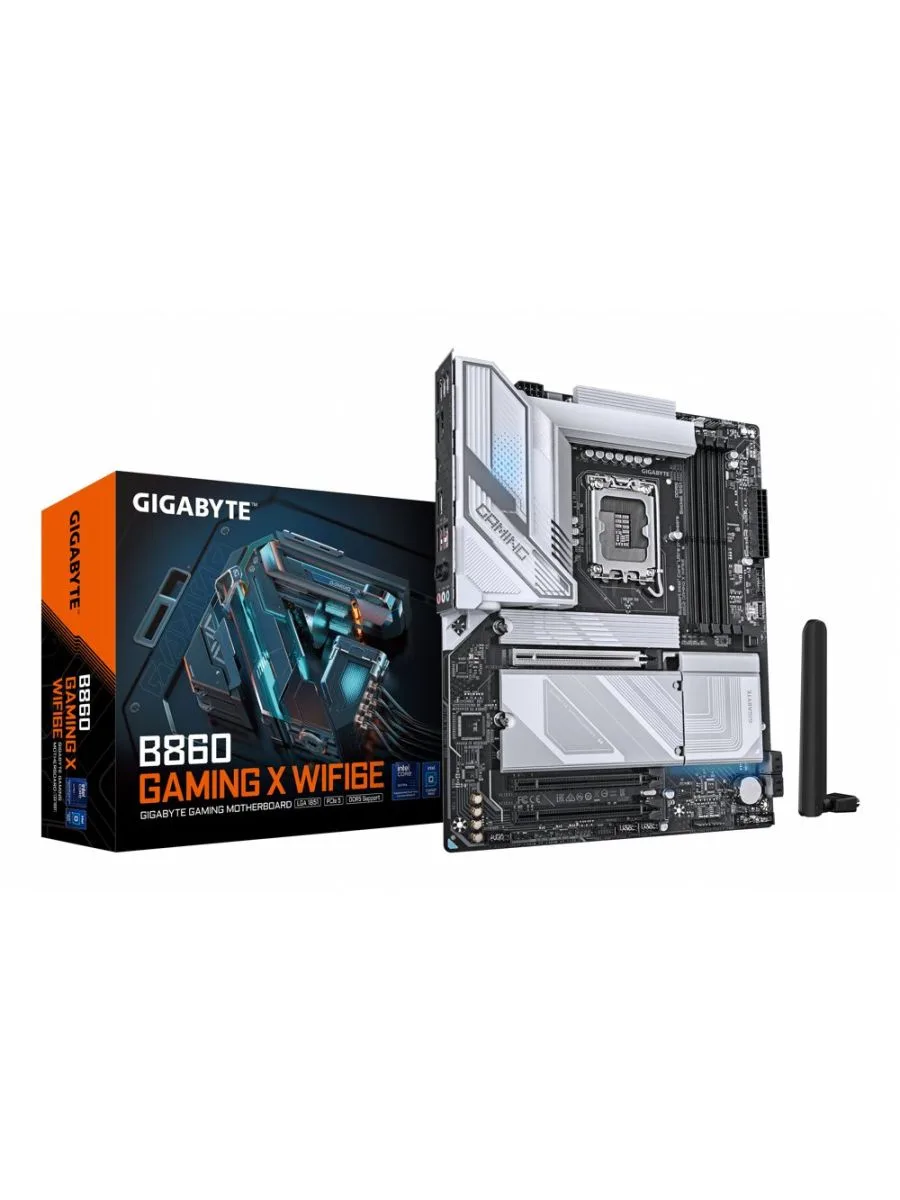

Gigabyte B860 GAMING X WIFI6E | Socket LGA 1851 (V1) | Intel B860 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	B860-GAMING-X-WIFI6E
EAN	4719331866532
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC Ñompatibility:	ECC & Non-ECC
Supported memory clock speeds:	5600,6400,9066 MHz
Supported memory clock speed (max):	9066 MHz
Maximum internal memory:	256 GB
Unbuffered memory:	Yes
Maximum internal memory per slot:	64 GB
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1851 (Socket V1)
Compatible processor series:	IntelÂ® Coreâ„¢ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets:	LGA 1851
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
S/PDIF out connector:	Yes
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of CPU fan connectors:	2
Number of chassis fan connectors:	4
EPS power connector (8-pin):	Yes
Number of EPS power connectors (8-pin):	1
TPM connector:	Yes
Number of water pump connectors:	2
RGB LED pin header:	Yes
Number of RGB LED pin headers:	4
Rear panel I/O ports
USB 2.0 ports quantity:	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	0
USB4 Gen 2x2 ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
VGA (D-Sub) ports quantity:	0
HDMI ports quantity:	1
HDMI version:	2.1
DVI-D ports quantity:	0
DisplayPorts quantity:	1
DisplayPort version:	2.1
Headphone outputs:	1
Line-in:	Yes
Microphone in:	Yes
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8125
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model:	Intel Wi-Fi 6E AX211
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Maximum resolution:	4096 x 2160 pixels
HDCP:	Yes
DirectX version:	12.0
Expansion slots
PCI Express x16 (Gen 4.x) slots:	2
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	3
1st M.2 largest key size:	25110
1st M.2 highest PCI Express generation:	5.0
2nd M.2 largest key size:	22110
2nd M.2 highest PCI Express generation:	4.0
3rd M.2 largest key size:	22110
3rd M.2 highest PCI Express generation:	4.0
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	7
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B860
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Product colour:	Dark brown
PC health monitoring:	Fan, Temperature, Voltage, Water cooling
Cooling type:	Passive
Power source type:	ATX
Logistics data
Country of origin:	China
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	335 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	270 mm
Features
Windows operating systems supported:	Windows 11 x64
Packaging data
Package height:	80 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	2.21 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Batteries included:	Yes
Antenna included:	Yes
Screws included:	Yes
Bundled software:	Norton Internet Security (OEM version) LAN bandwidth management software
Other features
Weight:	1.93 kg
Technical details
Warranty period:	3 year(s)

Productomschrijving

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
