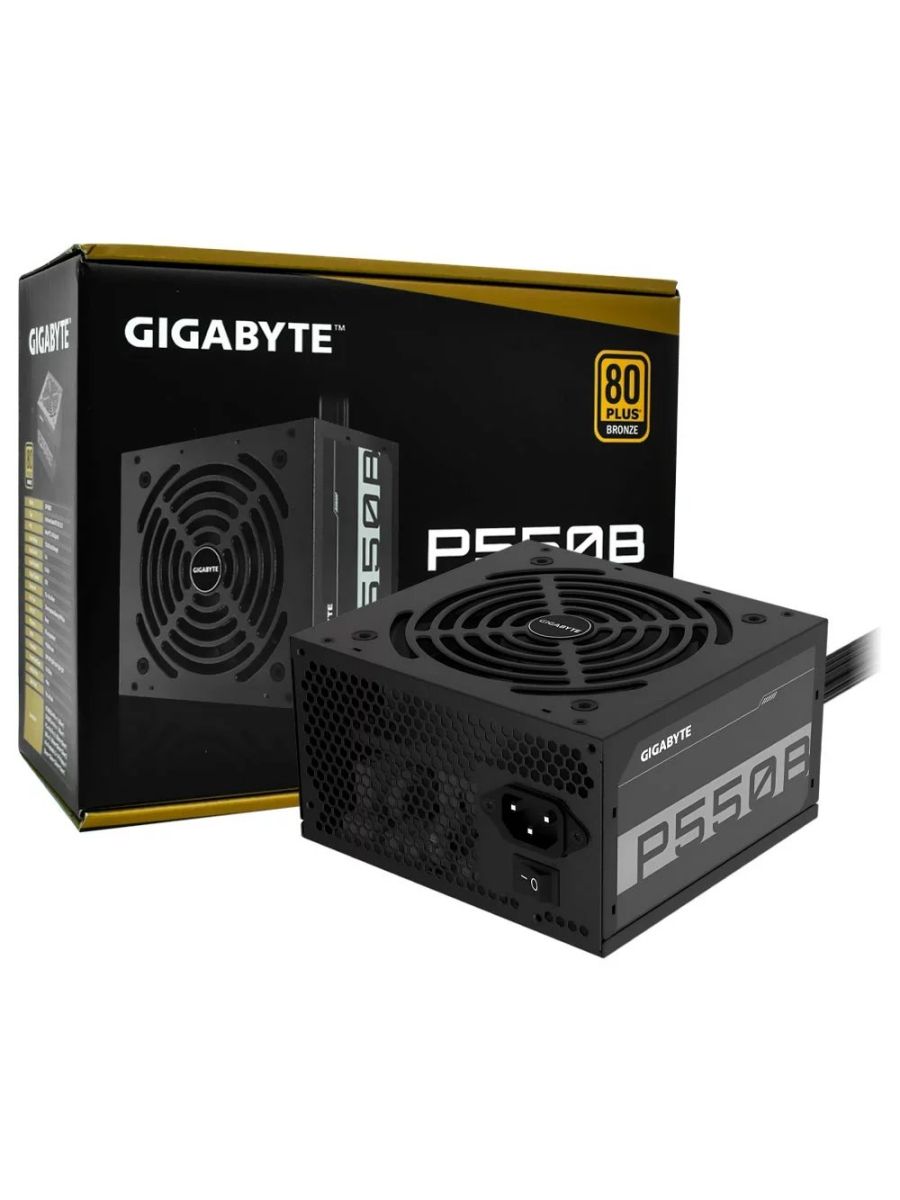

Gigabyte P550B | 550W Bronze | 20+4 Pin | ATX | Zwart | Voeding

Warranty	2 jaar via Complies
SKU	GP-P550B
EAN	4719331551490
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	550 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	8 - 4 A
Power factor:	0.9
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	108 W
Combined power (+12V):	522 W
Combined power (+5V):	108 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	18 A
Max output current (+12V):	43.5 A
Max output current (+5V):	15 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Hold time:	16 ms
Efficiency:	85%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	55 cm
Number of SATA power connectors:	6
SATA power cable length:	500 mm
Peripheral (Molex) power connectors (4-pin):	3
Peripheral (Molex) power cable length:	500 mm
PCI Express power connectors (6+2 pin):	2
PCI Express power cable length:	55 cm
CPU power connector (4+4 pin):	Yes
CPU power cable length:	60 cm
ATX power connector (20+4 pin):	Yes
Floppy drive power connector:	1
Floppy disk drive connector:	Yes
PCI Express connector:	Yes
Cabling type:	Non-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Bronze
ATX version:	2.31
Bearing technology:	HDB
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
On/off switch:	Yes
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
Logistics data
Harmonized System (HS) code:	84733020

Productomschrijving

GIGABYTE P550B. Totaal vermogen: 550 W, AC-ingangsspanning: 100 - 240 V, AC-ingangsfrequentie: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Lengte stroomkabel moederbord: 55 cm, Lengte SATA-stroomkabel: 500 mm. Bedoeld voor: PC, Vormfactor van de voeding (PSU): ATX, 80 PLUS certificatie: 80 PLUS Bronze. Kleur van het product: Zwart, Type koeling: Actief, Ventilator diameter: 12 cm. Breedte: 150 mm, Diepte: 140 mm, Hoogte: 86 mm
