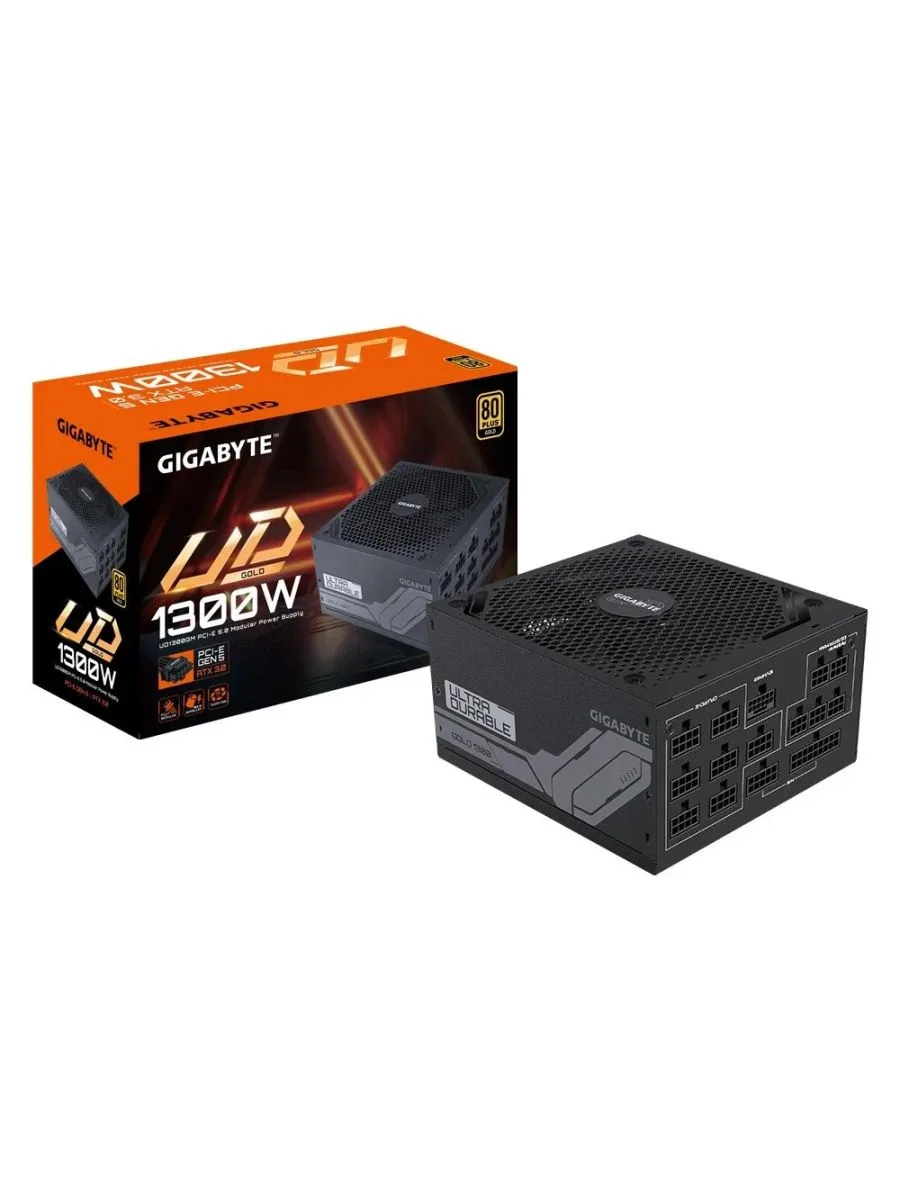

Gigabyte UD1300GM PG5 | 1300W Gold | 20+4 Pin | ATX | Zwart | Voeding

Warranty	2 jaar via Complies
SKU	GP-UD1300GM-PG5
EAN	4719331553388
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	1300 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	12 - 6 A
Maximum input current (@110V):	6 A
Maximum input current (@220V):	12 A
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	125 W
Combined power (+12V):	1300 W
Combined power (+5V):	125 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	17.5 W
Max output current (+3.3V):	25 A
Max output current (+12V):	108.3 A
Max output current (+5V):	25 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3.5 A
Hold time:	16 ms
Efficiency:	90%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	61 cm
Number of SATA power connectors:	8
Number of PATA power connectors:	3
SATA power cable length:	150,600 mm
Peripheral (Molex) power connectors (4-pin):	2
Peripheral (Molex) power cable length:	200,600 mm
PCI Express power connectors (6+2 pin):	4
PCI Express power connectors (16-pin):	1
PCI Express power cable length:	70 cm
CPU power connector (4+4 pin):	Yes
ATX power connector (20+4 pin):	Yes
PCI Express connector:	Yes
Cabling type:	Fully-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
Noise level:	40 dB
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
Illumination:	No
Packaging content
Cables included:	CPU, PATA, Peripheral (Molex), SATA
Cable tie(s) included:	Yes
Technical details
Warranty period:	5 year(s)
Compliance certificates:	CCC, CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width:	150 mm
Depth:	160 mm
Height:	86 mm
Packaging data
Package type:	Box

Productomschrijving

GIGABYTE UD1300GM PG5. Totaal vermogen: 1300 W, AC-ingangsspanning: 100 - 240 V, AC-ingangsfrequentie: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Lengte stroomkabel moederbord: 61 cm, Lengte SATA-stroomkabel: 150,600 mm. Bedoeld voor: PC, Vormfactor van de voeding (PSU): ATX, 80 PLUS certificatie: 80 PLUS Gold. Kleur van het product: Zwart, Type koeling: Actief, Ventilator diameter: 12 cm. Meegeleverde kabels: CPU, PATA, Peripheral (Molex), SATA

More…
