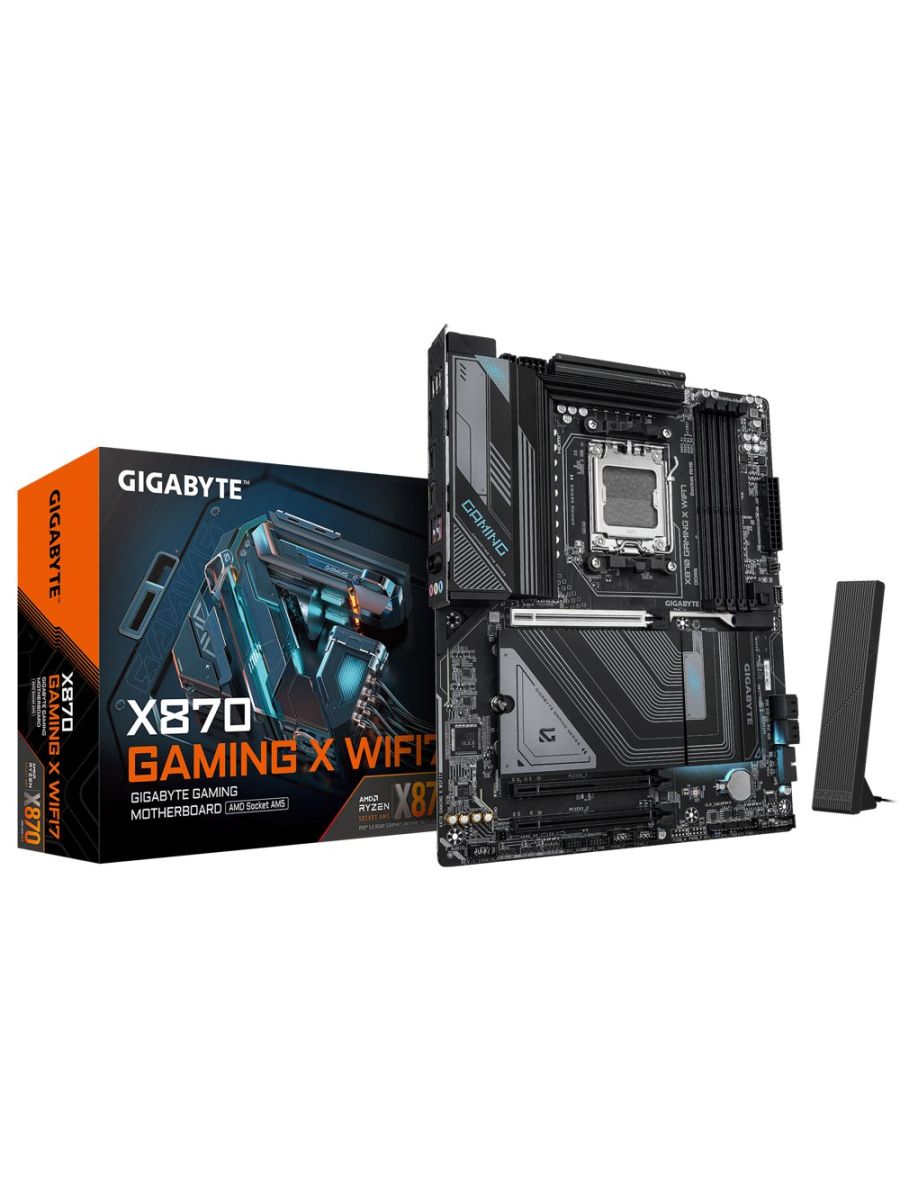

Gigabyte X870 GAMING X WIFI7 | Socket AM5 | AMD X870 | 4xDDR5 | ATX | Moederbord

Warranty	2 jaar via Complies
SKU	X870-GAMING-X-WIFI7
EAN	4719331865368
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC сompatibility:	Non-ECC
Supported memory clock speeds:	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max):	8200 MHz
Maximum internal memory:	256 GB
Supported memory module capacities:	1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Unbuffered memory:	Yes
Maximum internal memory per slot:	64 GB
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets:	Socket AM5
Maximum internal memory supported by processor:	256 GB
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	0
USB 3.2 Gen 2x2 connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of CPU fan connectors:	2
Number of chassis fan connectors:	4
Peripheral (Molex) power connectors (4-pin):	1
EPS power connector (8-pin):	Yes
Number of EPS power connectors (8-pin):	1
TPM connector:	Yes
Number of water pump connectors:	1
RGB LED pin header:	Yes
Number of RGB LED pin headers:	4
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	0
USB 3.2 Gen 2x2 Type-C ports quantity:	0
USB4 Gen 2x2 ports quantity:	2
USB4 Gen 3x2 ports quantity:	0
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	0
VGA (D-Sub) ports quantity:	0
HDMI ports quantity:	1
HDMI version:	2.1
DVI-D ports quantity:	0
DisplayPorts quantity:	0
DisplayPort version:	1.4
Headphone outputs:	1
Microphone in:	Yes
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8125
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 7 (802.11be)
Wi-Fi standards:	Wi-Fi 7 (802.11be)
WLAN controller model:	MediaTek MT7925
Bluetooth:	Yes
Bluetooth version:	5.4
Graphics
Parallel processing technology support:	Not supported
On-board graphics adapter:	No
DirectX version:	12.0
Expansion slots
PCI Express x1 (Gen 3.x) slots:	0
PCI Express x1 (Gen 4.x) slots:	0
PCI Express x4 slots:	2
PCI Express x4 (Gen 4.x) slots:	0
PCI Express x8 (Gen 3.x) slots:	0
PCI Express x8 (Gen 4.x) slots:	0
PCI Express x8 (Gen 5.x) slots:	0
PCI Express x16 (Gen 3.x) slots:	2
PCI Express x16 (Gen 4.x) slots:	0
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	3
1st M.2 largest key size:	25110
1st M.2 highest PCI Express generation:	5.0
2nd M.2 largest key size:	25110
2nd M.2 highest PCI Express generation:	4.0
3rd M.2 largest key size:	25110
3rd M.2 highest PCI Express generation:	4.0
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Clear CMOS button:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	7
Number of storage drives supported:	7
RAID support:	Yes
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD X870
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Product colour:	Black
PC health monitoring:	Fan, Temperature, Voltage
Logistics data
Country of origin:	China
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	335 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	270 mm
Features
Windows operating systems supported:	Windows 11 x64
Packaging data
Package height:	80 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	2.53 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Batteries included:	Yes
Antenna included:	Yes
Screws included:	Yes
Bundled software:	Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
PCI Express x4 (Gen 3.x) slots:	0
Weight:	2.23 kg
Technical details
Warranty period:	3 year(s)

Productomschrijving

GIGABYTE X870 GAMING X WIFI7. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 256 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Wifi-standaard: Wi-Fi 7 (802.11be). Component voor: PC, Moederbord form factor: ATX, Moederbord chipset familie: AMD
