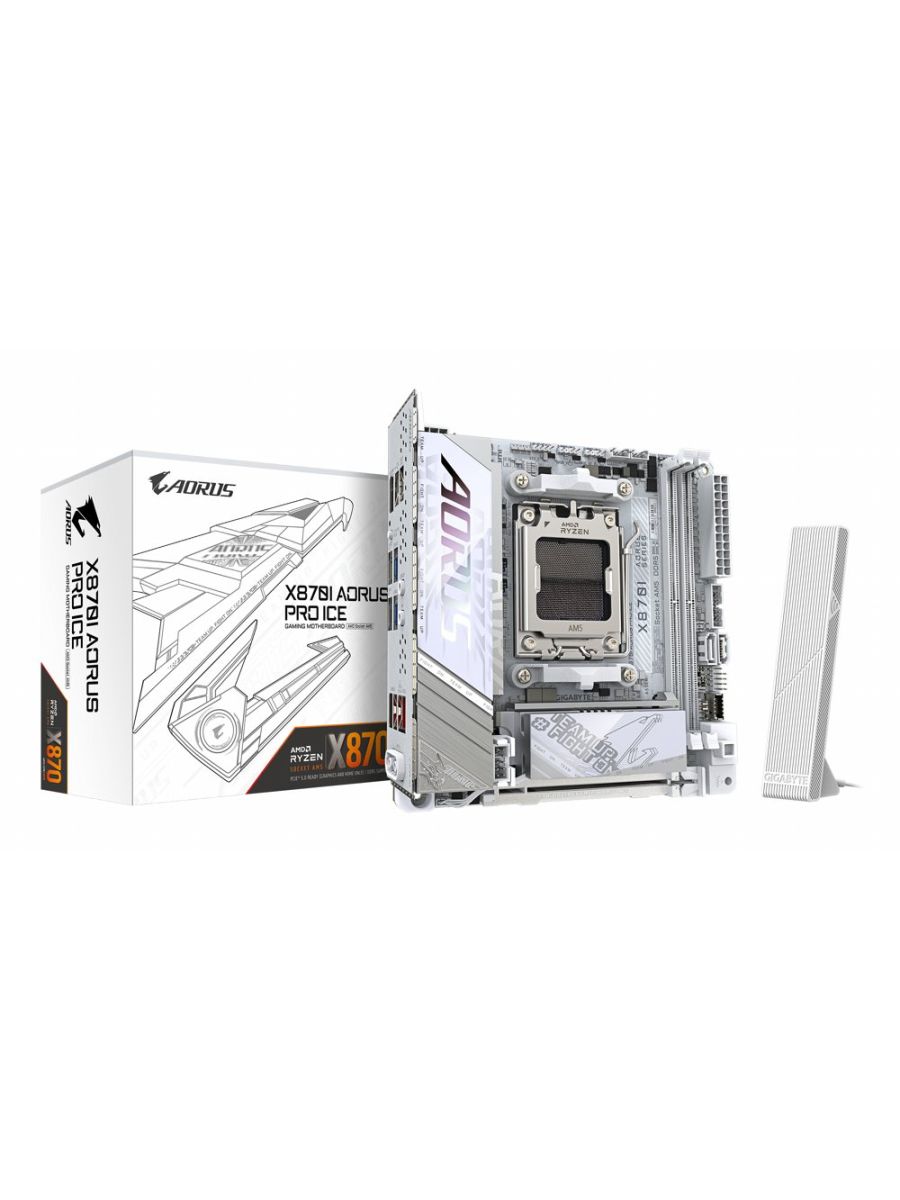

Gigabyte X870I AORUS PRO ICE | Socket AM5 | AMD X870 | 2xDDR5 | Mini ITX | Moederbord

Warranty	2 jaar via Complies
SKU	X870I-AORUS-PRO-ICE
EAN	4719331866112
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	2
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC сompatibility:	Non-ECC
Supported memory clock speeds:	8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory clock speed (max):	8400 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Yes
Maximum internal memory per slot:	64 GB
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets:	Socket AM5
Internal I/O
USB 2.0 connectors:	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	2
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of CPU fan connectors:	2
Number of chassis fan connectors:	1
Chassis intrusion connector:	Yes
EPS power connector (8-pin):	Yes
Number of EPS power connectors (8-pin):	1
Number of water pump connectors:	1
RGB LED pin header:	Yes
Number of RGB LED pin headers:	3
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
USB4 Gen 2x2 ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
VGA (D-Sub) ports quantity:	0
HDMI ports quantity:	1
HDMI version:	2.1
DVI-D ports quantity:	0
DisplayPort version:	1.4
Headphone outputs:	1
Line-in:	Yes
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8125
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 7 (802.11be)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model:	Realtek RTL8922AE
Bluetooth:	Yes
Bluetooth version:	5.4
Graphics
Parallel processing technology support:	Not supported
Maximum resolution:	4096 x 2160 pixels
HDCP:	Yes
DirectX version:	12.0
Expansion slots
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	2
1st M.2 largest key size:	2280
1st M.2 highest PCI Express generation:	5.0
2nd M.2 largest key size:	2280
2nd M.2 highest PCI Express generation:	4.0
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	2
Number of storage drives supported:	4
RAID support:	Yes
RAID levels:	0, 1
Features
Component for:	PC
Motherboard form factor:	Micro ITX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD X870
Audio chip:	Realtek ALC4080
Audio output channels:	7.1 channels
Product colour:	White
PC health monitoring:	Fan, Temperature, Voltage, Water cooling
Power source type:	ATX
Logistics data
Country of origin:	Taiwan
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	235 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	227 mm
Features
Windows operating systems supported:	Windows 11 x64
Packaging data
Package height:	95 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	1.28 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	170 mm
Depth:	170 mm
Height:	35 mm
Packaging content
Batteries included:	Yes
Antenna included:	Yes
Screws included:	Yes
Bundled software:	Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight:	1.2 kg
Technical details
Warranty period:	3 year(s)

Productomschrijving

GIGABYTE X870I AORUS PRO ICE. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1. Maximum resolutie: 4096 x 2160 Pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Wifi-standaard: Wi-Fi 7 (802.11be)
