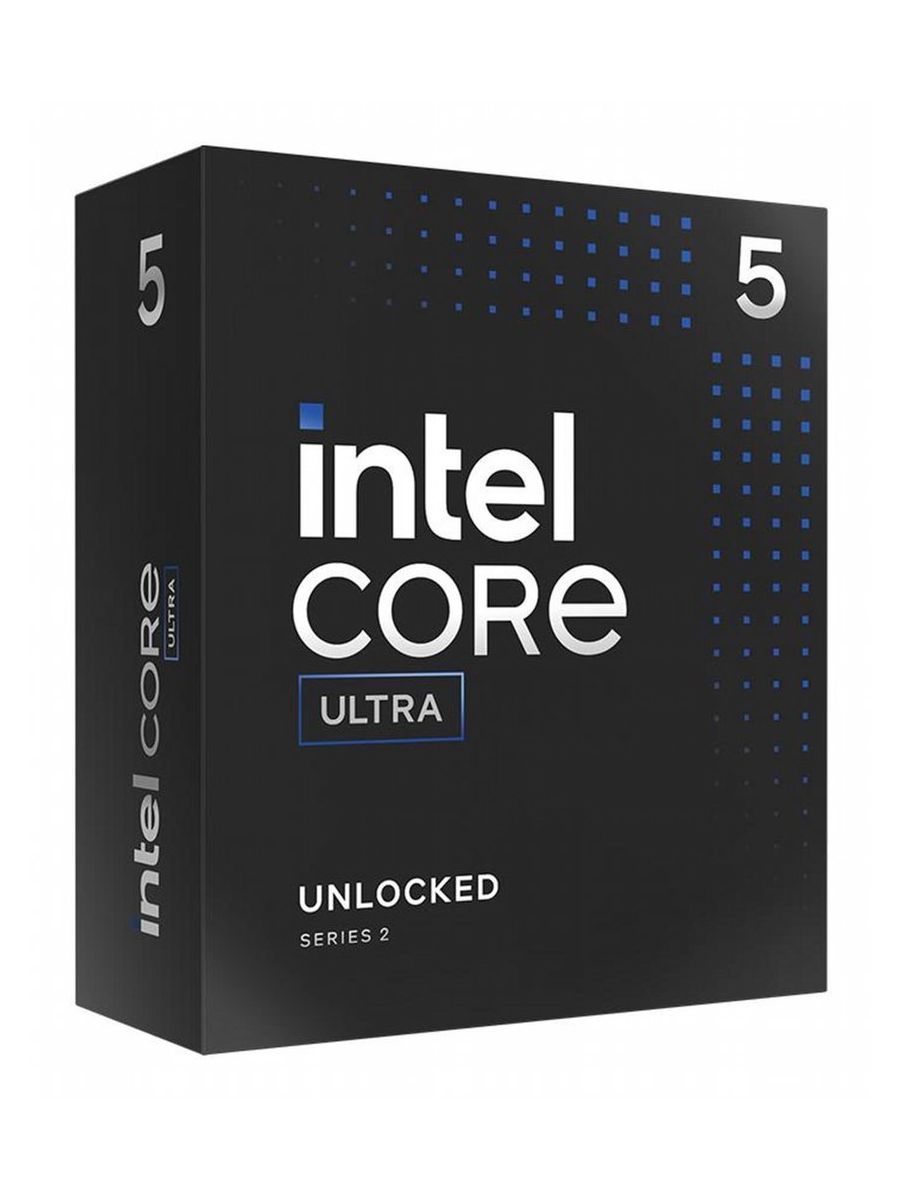

Intel Core Ultra 5 245K | 14 Cores | 4.6 GHz (5.2 GHz Turbo) | LGA 1851 | Processor | CPU

Warranty	3-year limited warranty direct with manufacturer
SKU	BX80768245K
EAN	5032037282086
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Processor
Processor manufacturer:	Intel
Processor family:	Intel Core Ultra 5
Processor generation:	Intel Core Ultra (Series 2)
Processor model:	245K
Processor cores:	14
Processor socket:	FCLGA1851
Box:	Yes
Cooler included:	No
Processor operating modes:	64-bit
Performance cores:	6
Efficient cores:	8
Processor boost frequency:	5.2 GHz
Performance-core boost frequency:	5.2 GHz
Performance-core base frequency:	4.2 GHz
Efficient-core boost frequency:	4.6 GHz
Efficient-core base frequency:	3.6 GHz
Processor cache:	24 MB
Processor cache type:	Smart Cache
Processor base power:	125 W
Maximum turbo power:	159 W
AI software frameworks supported by CPU:	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Stepping:	B0
Maximum number of DMI lanes:	8
Processor codename:	Arrow Lake
Processor ARK ID:	241067
Neural processor unit (NPU)
Neural processor unit (NPU):	Intel AI Boost
Sparsity support:	Yes
Windows Studio effects support:	Yes
AI software frameworks supported by NPU:	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to:	30 TOPs
NPU performance up to:	13 TOPs
GPU performance up to:	8 TOPs
Memory
Maximum internal memory supported by processor:	192 GB
Memory types supported by processor:	DDR5-SDRAM
Memory clock speeds supported by processor:	6400 MHz
Memory channels:	Dual-channel
ECC:	Yes
Graphics
On-board graphics adapter:	Yes
Discrete graphics adapter:	No
On-board graphics adapter model:	Intel Graphics
On-board graphics adapter outputs supported:	DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1
On-board graphics adapter base frequency:	300 MHz
On-board graphics adapter dynamic frequency (max):	1900 MHz
Number of displays supported (on-board graphics):	4
On-board graphics adapter DirectX version:	12.0
On-board graphics adapter OpenGL version:	4.5
On-board graphics adapter refresh rate at maximum resolution (DisplayPort):	60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel):	60 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI):	60 Hz
On-board graphics adapter ID:	0x7D67
Discrete graphics adapter model:	Not available
Xe-cores:	4
Features
Execute Disable Bit:	Yes
Idle States:	Yes
Thermal Monitoring Technologies:	Yes
Market segment:	Desktop
Use conditions:	Workstation, PC/Client/Tablet
Maximum number of PCI Express lanes:	24
PCI Express slots version:	4.0, 5.0
Supported instruction sets:	AVX 2.0, SSE4.1, SSE4.2
Scalability:	1S
Embedded options available:	No
Thermal solution specification:	PCG 2020A
Direct Media Interface (DMI) Revision:	4.0
Export Control Classification Number (ECCN):	5A992C
Commodity Classification Automated Tracking System (CCATS):	740.17B1
Processor special features
IntelÂ® Turbo Boost Technology:	2.0
IntelÂ® Quick Sync Video Technology:	Yes
IntelÂ® AES New Instructions (IntelÂ® AES-NI):	Yes
Enhanced Intel SpeedStep Technology:	Yes
Intel Trusted Execution Technology:	Yes
IntelÂ® Speed Shift Technology:	Yes
IntelÂ® Thunderbolt 4:	Yes
IntelÂ® Control-flow Enforcement Technology (CET):	Yes
IntelÂ® Thread Director:	Yes
Intel VT-x with Extended Page Tables (EPT):	Yes
IntelÂ® Secure Key:	Yes
IntelÂ® Active Management Technology (IntelÂ® AMT):	Yes
IntelÂ® OS Guard:	Yes
Intel 64:	Yes
Intel Virtualization Technology (VT-x):	Yes
Intel Virtualization Technology for Directed I/O (VT-d):	Yes
IntelÂ® Boot Guard:	Yes
IntelÂ® Deep Learning Boost (IntelÂ® DL Boost):	Yes
IntelÂ® Volume Management Device (VMD):	Yes
Mode-based Execute Control (MBE):	Yes
IntelÂ® Standard Manageability (ISM):	Yes
IntelÂ® One-Click Recovery:	Yes
IntelÂ® Stable IT Platform Program (SIPP):	Yes
IntelÂ® Remote Platform Erase (RPE):	Yes
IntelÂ® Virtualization Technology with Redirect Protection (VT-rp):	Yes
IntelÂ® Deep Learning Boost (IntelÂ® DL Boost) on GPU:	Yes
Intel vProÂ® Enterprise Platform Eligibility:	Yes
IntelÂ® Threat Detection Technology (TDT):	Yes
IntelÂ® Hardware Shield Eligibility:	Yes
IntelÂ® Total Memory Encryption - Multi Key:	Yes
Operational conditions
Maximum operating temperature:	105 Â°C
Technical details
OpenCL version:	3.0
Logistics data
Harmonized System (HS) code:	8542310050
Technical details
Launch date:	Q4'24
Status:	Launched
Memory speed (max):	6400 MHz
Other features
L2 cache:	26624 KB
Maximum internal memory:	192 GB
Graphics output:	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Productomschrijving

Intel Core Ultra 5 245K. Processor family: Intel Core Ultra 5, Processor socket: FCLGA1851, Processor manufacturer: Intel. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 30 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0
