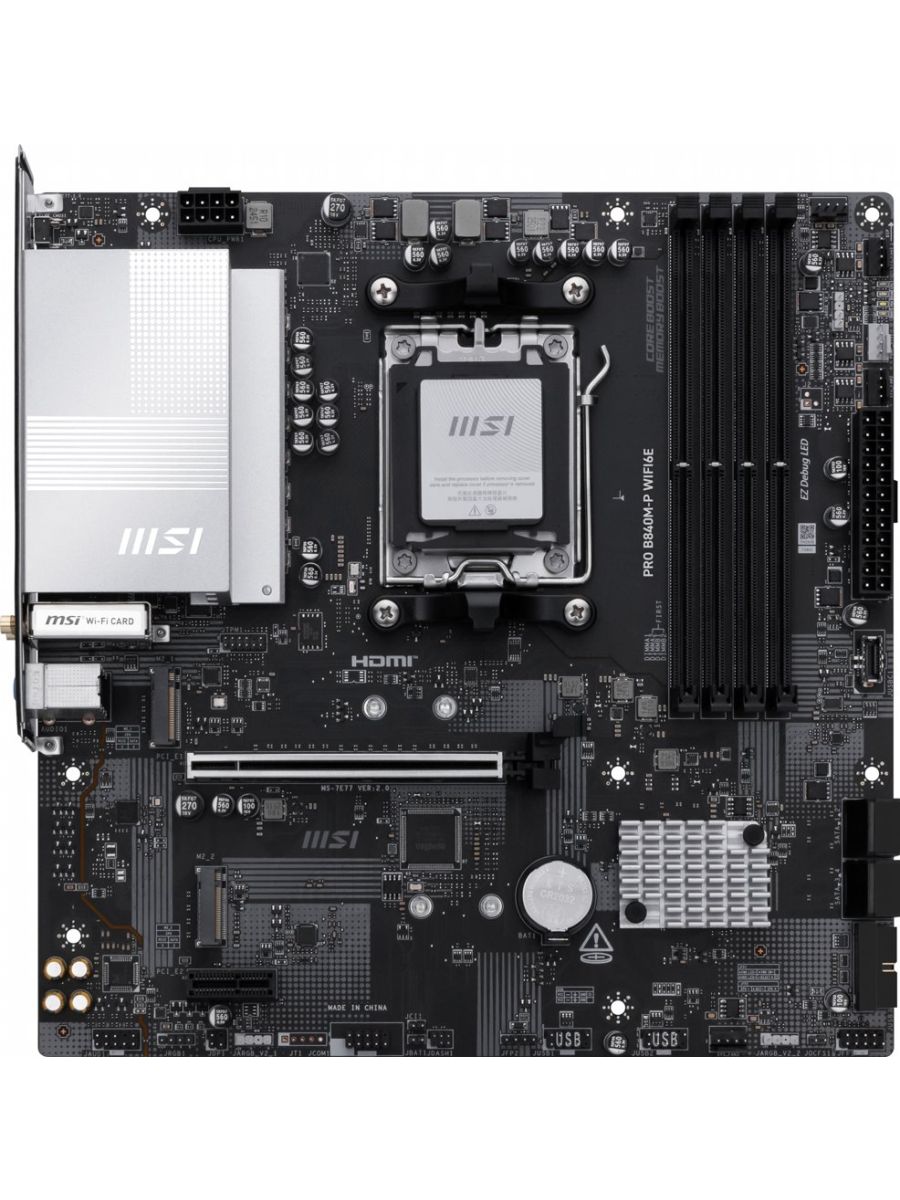

MSI PRO B840M-P WiFi6E | Socket AM5 | AMD B840 | 4xDDR5 | Micro ATX | Moederbord

Warranty	2 jaar via Complies
SKU	7E77-001R
EAN	4711377361804
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC сompatibility:	Non-ECC
Supported memory clock speeds:	4800,5600,8000 MHz
Supported memory clock speed (max):	8000 MHz
Maximum internal memory:	256 GB
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets:	Socket AM5
Internal I/O
USB 2.0 connectors:	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Number of SATA connectors:	0
Number of SATA Express connectors:	0
Total number of SATA connectors:	4
Number of CPU fan connectors:	1
Number of chassis fan connectors:	5
Number of water pump connectors:	1
RGB LED pin header:	Yes
Number of RGB LED pin headers:	3
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	0
Ethernet LAN (RJ-45) ports:	1
VGA (D-Sub) ports quantity:	0
HDMI ports quantity:	1
HDMI version:	2.1
DVI-D ports quantity:	0
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8125D
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
On-board graphics adapter:	No
Expansion slots
PCI Express x16 slots:	2
Number of M.2 (M) slots:	2
1st M.2 largest key size:	2280
1st M.2 highest PCI Express generation:	4.0
2nd M.2 largest key size:	2280
2nd M.2 highest PCI Express generation:	4.0
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	6.5
System Management BIOS (SMBIOS) version:	3.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, Micro SATA III
Number of HDDs supported:	4
Number of storage drives supported:	6
RAID support:	Yes
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B840
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Product colour:	Black
Windows operating systems supported:	Windows 11 x64
Weight & dimensions
Width:	243.8 mm
Depth:	243.8 mm
Other features
mSATA ports quantity:	0

Productomschrijving

MSI PRO B840M-P WIFI6E. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 256 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, Micro SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Wifi-standaard: Wi-Fi 6E (802.11ax). Component voor: PC, Moederbord form factor: micro ATX, Moederbord chipset familie: AMD

More…

Quantity on order:	10
Expected delivery date:	16-10-2025
