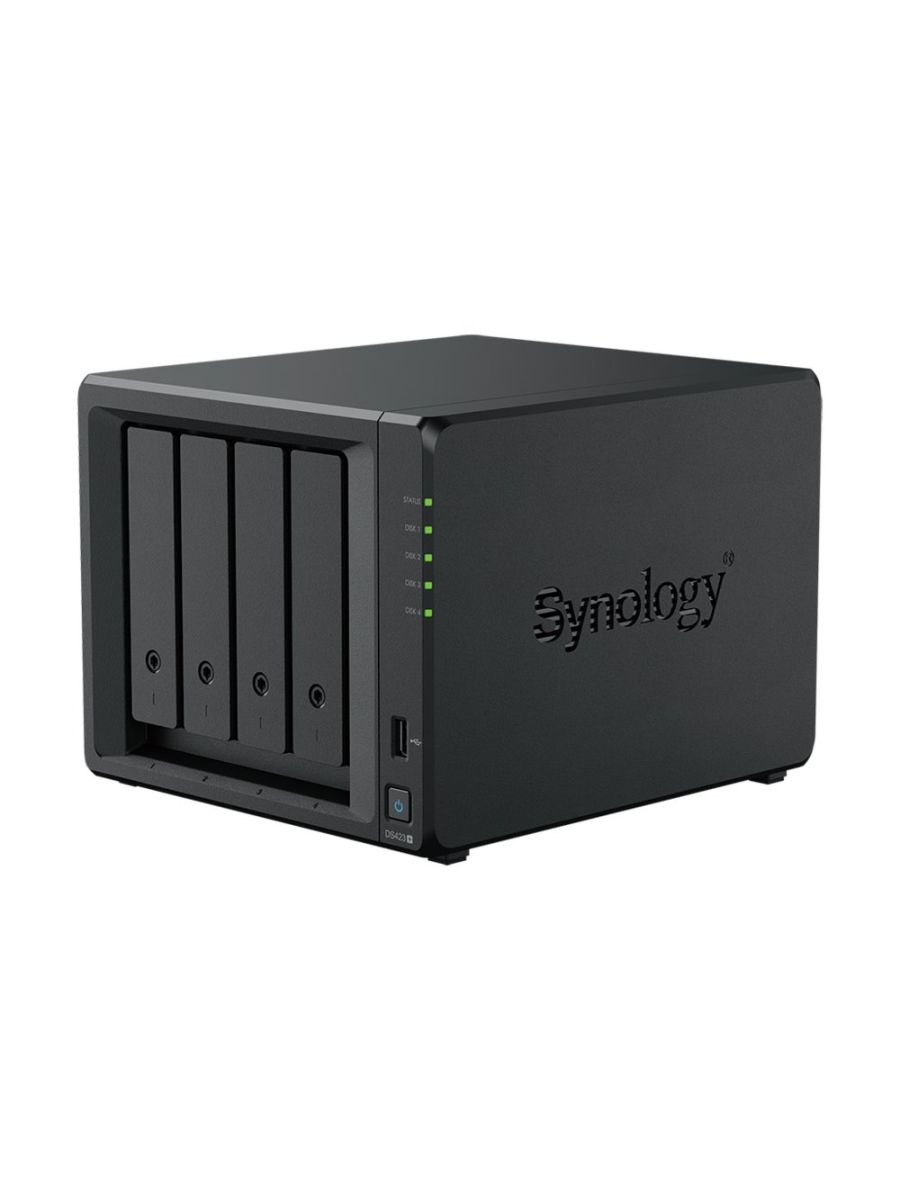

Synology DiskStation DS423+ NAS | 4 Drive Bays | Intel Celeron J4125 | 2x Gigabit Ethernet | Rack (8U) | Black

Warranty	3 jaar via Complies
SKU	DS423+
EAN	4711174725007
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Storage
Storage drives installed:	N
Number of storage drives supported:	4
Installed storage drive type:	N
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	Serial ATA
Storage drive sizes supported:	2.5,3.5"
Number of M.2 (M & B) slots:	2
RAID support:	Y
RAID levels:	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays:	Y
Supported file systems:	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Processor
Processor manufacturer:	Intel
Processor family:	IntelÂ® CeleronÂ®
Processor model:	J4125
Processor frequency:	2 GHz
Processor boost frequency:	2.7 GHz
Processor cores:	4
Processor threads:	4
Processor cache:	4 MB
CPU configuration (max):	1
Number of processors supported:	1
Memory
Internal memory type:	DDR4
Internal memory:	2 GB
Maximum RAM supported:	6 GB
Memory form factor:	SO-DIMM
Network
Ethernet LAN:	Y
Ethernet LAN data rates:	10,100,1000 Mbit/s
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
iSCSI support:	Y
Supported network protocols:	SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP / VPN (PPTP, OpenVPNâ„¢, L2TP)
Ports & interfaces
Ethernet LAN (RJ-45) ports:	2
USB port:	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
Design
Chassis type:	Rack (8U)
Cooling type:	Active
Product colour:	Black
Number of fans:	2 fan(s)
Fan diameter:	9.2 cm
LED indicators:	Y
Built-in display:	N
Cable lock slot:	Y
Cable lock slot type:	Kensington
Built-in speaker(s):	N
Performance
Type:	NAS
Device class:	Home & Home Office
Backup function:	Y
Backup features:	Cloud, iSCSI LUN
Buzzer:	Y
Multilingual support:	Y
Card reader integrated:	N
Security algorithms:	HTTPS, SSH, SSL/TLS
Access Control List (ACL):	Y
Reset button:	Y
On/off switch:	Y
Built-in FTP server:	Y
Browser supported:	Google ChromeÂ®, FirefoxÂ®, Microsoft EdgeÂ®, Safari 13+
System log:	Y
Software
Operating system installed:	DiskStation Manager
Power
Power supply location:	External
Number of power supply units:	1
Redundant power supply (RPS) support:	N
AC input voltage:	100 - 240 V
AC input frequency:	50 / 60 Hz
Weight & dimensions
Width:	199 mm
Depth:	223 mm
Height:	166 mm
Weight:	2.18 kg
Packaging content
External power adapter:	Y
Cables included:	AC, LAN (RJ-45)
Power cables quantity:	1
Processor special features
Embedded options available:	N
Enhanced Intel SpeedStep Technology:	Y
Execute Disable Bit:	Y
Idle States:	Y
Intel 64:	Y
Intel Virtualization Technology (VT-x):	Y
Intel Virtualization Technology for Directed I/O (VT-d):	Y
Intel VT-x with Extended Page Tables (EPT):	Y
Operational conditions
Operating temperature (T-T):	0 - 40 Â°C
Operating relative humidity (H-H):	8 - 80%
Storage temperature (T-T):	-20 - 60 Â°C
Storage relative humidity (H-H):	5 - 95%
Operating altitude:	0 - 5000 m

Productomschrijving

Discover the Synology DiskStation DS423+, an advanced storage solution designed to meet the needs of modern businesses. This powerful system supports both HDDs and SSDs, giving you the freedom to choose your storage media. With SATA support and compatibility for 2.5-inch and 3.5-inch storage drives, the DS423+ offers versatility for various storage requirements.
