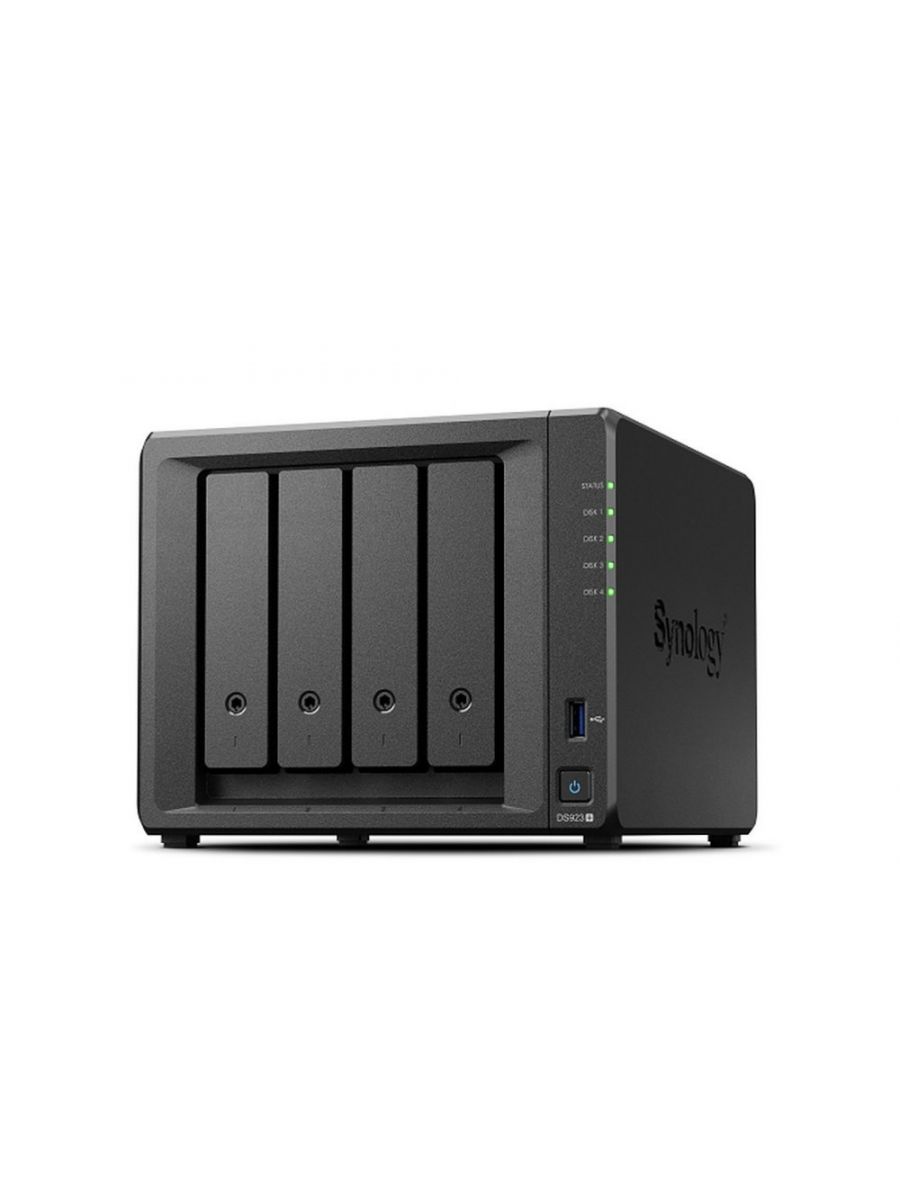

Synology DiskStation DS923+ NAS | 4 Drive Bays | AMD Ryzen R1600 | 2x Gigabit Ethernet | Desktop | Black

Warranty	2 jaar via Complies
SKU	DS923+
EAN	4711174724451
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Storage
Storage drives installed:	N
Number of storage drives supported:	4
Installed storage drive type:	N
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, Serial ATA III
Storage drive sizes supported:	2.5,3.5"
Number of M.2 (M & B) slots:	2
RAID support:	Y
RAID levels:	0, 1, 5, 6, 10, JBOD
Online RAID migration:	Y
Online RAID expansion:	Y
Hot-swap drive bays:	Y
Supported file systems:	BTRFS, Fat, HFS+, NTFS, ext3, ext4
Processor
Processor manufacturer:	AMD
Processor family:	AMD Ryzen
Processor model:	R1600
Processor frequency:	-2.6 GHz
Processor boost frequency:	3.1 GHz
Processor cores:	2
Memory
Internal memory type:	DDR4L
Internal memory:	4 GB
Maximum RAM supported:	32 GB
Memory slots:	2
ECC:	Y
Network
Ethernet LAN:	Y
Ethernet LAN data rates:	10,100,1000 Mbit/s
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
iSCSI support:	Y
Wake-on-LAN ready:	Y
Supported network protocols:	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Link aggregation:	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports:	2
USB port:	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
eSATA ports quantity:	1
PCI Express x2 (Gen 3.x) slots:	1
Design
Chassis type:	Tower
Cooling type:	Active
Product colour:	Black
Number of fans:	2 fan(s)
Fan diameter:	9.2 cm
Drive bay locking:	Y
LED indicators:	Y
Built-in display:	N
Cable lock slot:	Y
Cable lock slot type:	Kensington
Built-in speaker(s):	N
Performance
Type:	NAS
Device class:	Home & Home Office
Backup function:	Y
Backup features:	Cloud, iSCSI LUN
Multilingual support:	Y
Noise level:	22.9 dB
Card reader integrated:	N
Management protocols:	SNMP
Security algorithms:	AES
Access Control List (ACL):	Y
Reset button:	Y
On/off switch:	Y
Built-in UPnP AV media server:	Y
Built-in FTP server:	Y
Browser supported:	Google Chrome, Firefox, Microsoft Edge, Safari
Hot spare:	Y
Software
Operating system installed:	DiskStation Manager
Operating system version:	7.1.1
Server operating systems supported:	Windows Server 2016, Windows Server 2019
Power
Power supply location:	External
Power supply unit (PSU) capacity:	100 W
Number of power supply units:	1
Redundant power supply (RPS) support:	N
Power consumption (typical):	35.51 W
Power consumption (HDD standby):	11.52 W
AC input voltage:	100 - 240 V
AC input frequency:	50 / 60 Hz
Weight & dimensions
Width:	199 mm
Depth:	223 mm
Height:	166 mm
Weight:	2.34 kg
Packaging content
External power adapter:	Y
Cables included:	AC, LAN (RJ-45)
Power cables quantity:	1
Technical details
Sustainability compliance:	Y
Sustainability certificates:	CE, RoHS
Operational conditions
Operating temperature (T-T):	0 - 40 Â°C
Operating relative humidity (H-H):	5 - 95%
Storage temperature (T-T):	-20 - 60 Â°C
Certificates
Certification:	FCC BSMI VCCI RCM UKCA EAC CCC KC

Productomschrijving

The Synology DiskStation DS923+ is a powerful data storage server in the form of a NAS tower. Equipped with Ethernet LAN, it features a built-in R1600 processor for efficient file management and protection. Easy to install and use, the DS923+ provides a central location for storing, sharing and managing all your files. With its tower size and black finish, it fits nicely into any office or home environment. In short, the Synology DiskStation DS923+ is a reliable and versatile solution for all your data storage needs.
