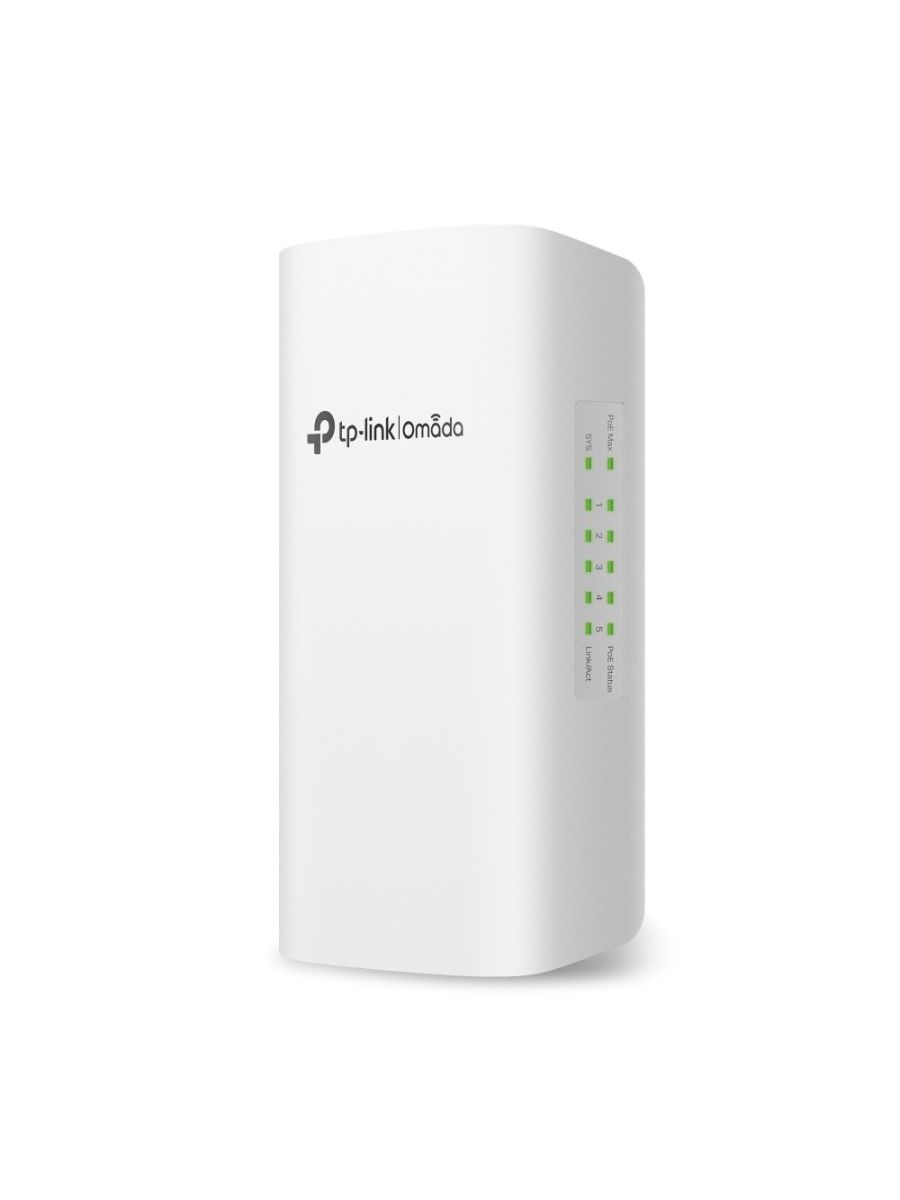

TP-Link Omada SG2005P-PD | 5-Port Gigabit Managed Switch | 1 PoE++ In / 4 PoE+ Out | IP55 Outdoor | Cloud Management via Omada SDN

Warranty	2 jaar via Complies
SKU	SG2005P-PD
EAN	4897098689486
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Switch type:	Managed
Switch layer:	L2/L2+
Quality of Service (QoS) support:	Yes
Web-based management:	Yes
Cloud-managed:	Yes
ARP inspection:	Yes
MIB support:	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	4
Basic switching RJ-45 Ethernet ports type:	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity:	4
Network
Networking standards:	IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support:	Yes
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported:	Cat5, Cat5e
Port mirroring:	Yes
Flow control support:	Yes
Link aggregation:	Yes
Spanning tree protocol:	Yes
IPv4 routes:	32
IPv6 routes:	32
VLAN support:	Yes
Virtual LAN features:	Voice VLAN
Number of VLANs:	4000
Multicast features
Multicast support:	Yes
Multicast MAC address table:	8000 entries
IPv4 multicast entries:	511
IPv6 multicast entries:	511
Data transmission
MAC address table:	8000 entries
Switching capacity:	10 Gbit/s
Jumbo frames support:	Yes
Jumbo frames:	9
Packet forwarding rate (1 Gbps):	7440 pps
Packet buffer memory:	4.1 MB
Security
DHCP features:	DHCP relay, DHCP server
Access Control List (ACL):	Yes
Access Control List (ACL) IPv4 entries:	32
IGMP snooping:	Yes
Security algorithms:	802.1x RADIUS
MAC address filtering:	Yes
IP-MAC-Port binding:	Yes
Authentication:	MAC-based authentication, Port-based authentication
Password protection:	Yes
Protocols
IPv4 & IPv6 features:	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Design
Rack mounting:	No
Stackable:	No
Form factor:	Desktop
Product colour:	White
LED indicators:	Yes
Power
Power source:	DC/PoE
Power supply included:	Yes
Power consumption (typical):	71.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	Yes
Power over Ethernet (PoE) power per port:	64 W
Technical details
Compliance certificates:	CE, RoHS
Operational conditions
Operating temperature (T-T):	-40 - 60 Â°C
Storage temperature (T-T):	-40 - 70 Â°C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	243.99 BTU/h
Weight & dimensions
Width:	170 mm
Depth:	100 mm
Height:	38.5 mm
Sustainability
Sustainability compliance:	Yes

Productomschrijving

The Omada 5-Port Gigabit Smart Switch delivers powerful performance and flexibility for both indoor and outdoor applications. With PoE passthrough up to 200 meters and 1 PoE++ input port combined with 4 PoE+ output ports, this switch supports long-distance connections without sacrificing gigabit speeds, making it perfect for surveillance cameras and access points.

The IP55 weatherproof design ensures the switch is resistant to harsh conditions such as dust, UV exposure, and extreme temperatures (-40°C to 60°C). Easy wall or pole mounting provides flexible installation in any environment.

Seamlessly integrate the switch into the Omada SDN cloud platform for centralized management, remote access, and multi-site control. With advanced features such as VLAN, QoS, and Access Control Lists (ACL), the Omada Smart Switch offers a reliable and versatile networking solution.

Reliable. Flexible. Built for any environment.
