TP-Link TL-SF1005LP | Unmanaged | Fast Ethernet (10/100 Mbps) | Power over Ethernet (PoE) | Black
Warranty | 1 jaar via Complies |
SKU | TL-SF1005LP |
EAN | 6935364052782 |
Condition | New |
| Management features | |
|---|---|
| Unmanaged | |
| Ports & interfaces | |
| 5 | |
| Fast Ethernet (10/100) | |
| Network | |
| IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | |
| N | |
| 10BASE-T, 100BASE-TX | |
| Cat3, Cat4, Cat5, Cat5e | |
| Y | |
| Y | |
| Data transmission | |
| 2000 entries | |
| 1 Gbit/s | |
| 0.744 Mpps | |
| Y | |
| Y | |
| 2000 | |
| Design | |
| N | |
| Black | |
| Y | |
| Power | |
| DC | |
| Y | |
| 0.81 A | |
| 53.5 V | |
| 47 W | |
| Power over Ethernet (PoE) | |
| Y | |
| 4 | |
| 41 W | |
| Operational conditions | |
| 0 - 40 °C | |
| -40 - 70 °C | |
| 10 - 90% | |
| 5 - 90% | |
| Weight & dimensions | |
| 100 mm | |
| 98 mm | |
| 25 mm | |
| Logistics data | |
| 85176990 | |
Productomschrijving

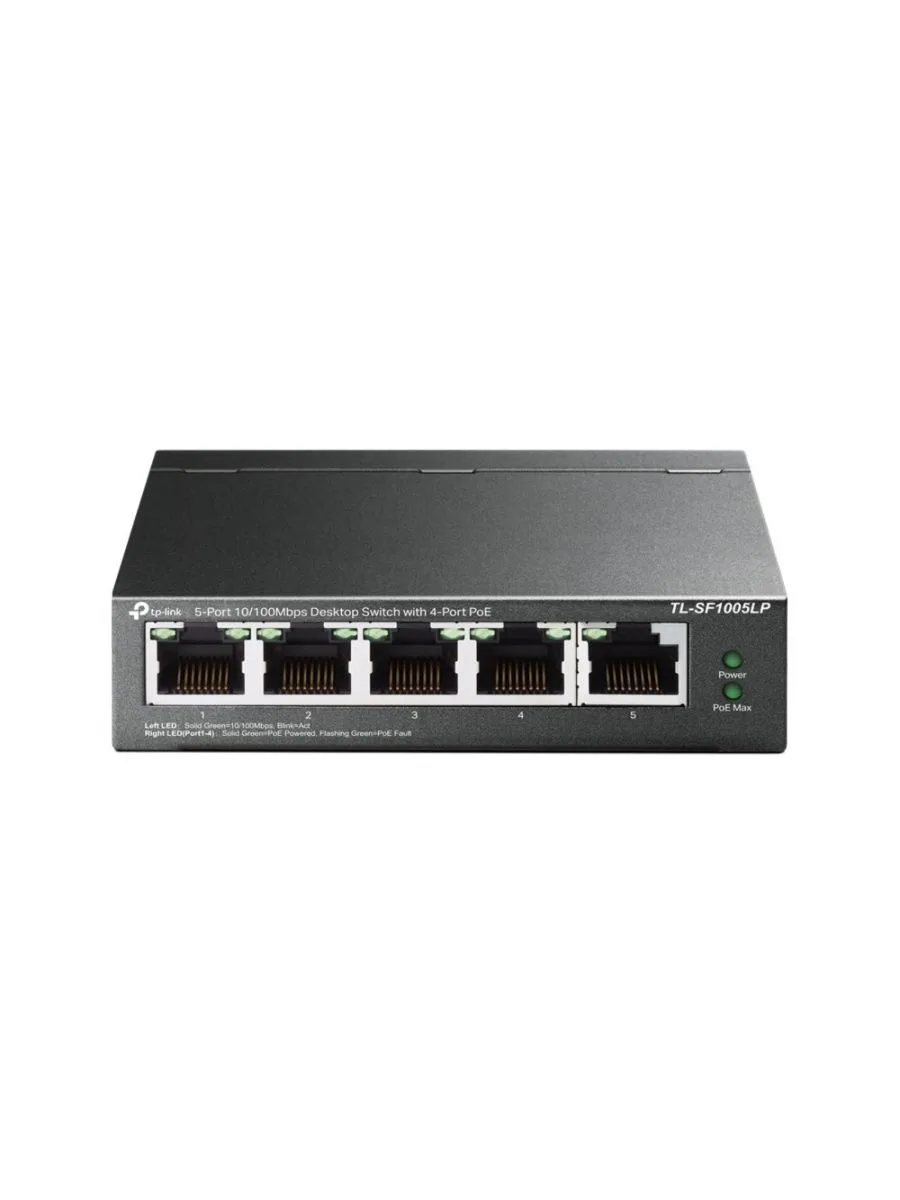

Discover the TP-Link TL-SF1005LP, a professional Fast Ethernet switch with 4 PoE ports. This switch offers easy Plug and Play installation with PoE transmission, ideal for various applications such as surveillance in offices, dormitories and small businesses.
The 4 PoE ports support up to 15.4 W of power per port according to the 802.3af PoE standard, with a total budget of 41 W. This makes the switch perfectly compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP surveillance with a transmission range of up to 250 m in extended mode, perfect for deploying IP cameras in large areas, although the port speed will drop to 10 Mbps in extended mode. Actual transmission distance may vary depending on the power consumption of the PoE devices and the quality and type of cable.
Priority Video Quality Guaranteed
Quality of sensitive applications such as video surveillance in critical business areas is guaranteed by providing higher priority options for ports 1-2 when Priority Mode is enabled.
Intelligent power management ensures that when the total power consumption of 41 W is exceeded, lower priority ports automatically receive less power. This protects the higher priority ports from overloading and prevents damage to PoE and non-PoE devices.
More…
The 4 PoE ports support up to 15.4 W of power per port according to the 802.3af PoE standard, with a total budget of 41 W. This makes the switch perfectly compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP surveillance with a transmission range of up to 250 m in extended mode, perfect for deploying IP cameras in large areas, although the port speed will drop to 10 Mbps in extended mode. Actual transmission distance may vary depending on the power consumption of the PoE devices and the quality and type of cable.
Priority Video Quality Guaranteed
Quality of sensitive applications such as video surveillance in critical business areas is guaranteed by providing higher priority options for ports 1-2 when Priority Mode is enabled.
Intelligent power management ensures that when the total power consumption of 41 W is exceeded, lower priority ports automatically receive less power. This protects the higher priority ports from overloading and prevents damage to PoE and non-PoE devices.
