TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Guarantee | 2 jaar via Complies |
SKU | TL-SF1009P |
EAN | 6935364052966 |
Verkoopstaat | New |
Beheerfuncties | |
---|---|
Unmanaged | |
Poorten & interfaces | |
9 | |
Fast Ethernet (10/100) | |
Netwerk | |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | |
Nee | |
10BASE-T, 100BASE-TX | |
Cat3, Cat4, Cat5, Cat5e | |
Ja | |
Ja | |
Ja | |
Ja | |
Ja | |
Data-uitwisseling | |
2000 entries | |
1,6 Gbit/s | |
Ja | |
Design | |
Nee | |
Zwart | |
Activiteit, Link, Power over Ethernet (PoE), Stroom | |
FCC, CE, RoHS | |
Prestatie | |
Ja | |
Energie | |
DC | |
Ja | |
1.31 A | |
53.5 V | |
77,08 W | |
Power over Ethernet (PoE) | |
Ja | |
8 | |
30 W | |
65 W | |
Eisen aan de omgeving | |
0 - 40 °C | |
-40 - 70 °C | |
10 - 90 procent | |
5 - 90 procent | |
262,84 BTU/h | |
Gewicht en omvang | |
171 mm | |
98 mm | |
27 mm | |
Verpakking | |
Ja | |
Logistieke gegevens | |
85176990 |
Productomschrijving

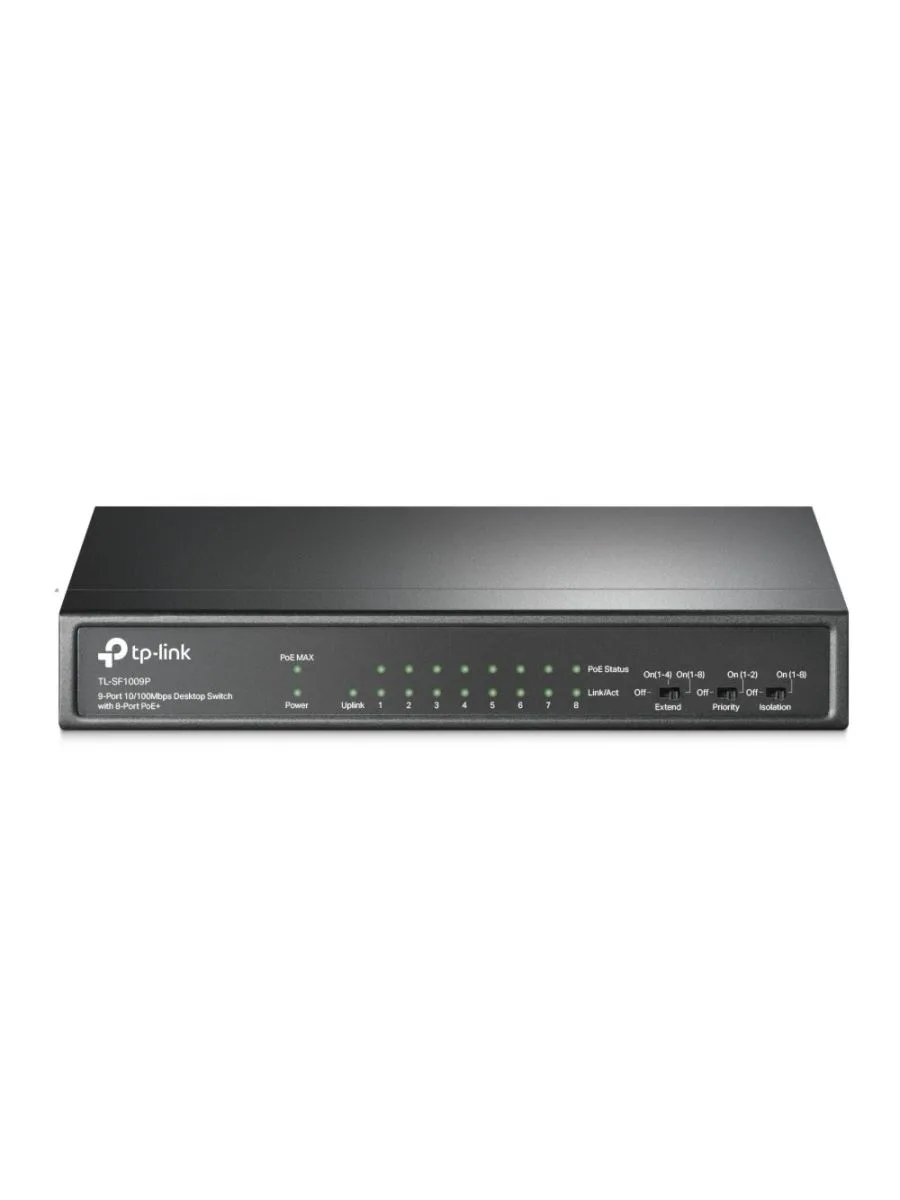

Discover the TP-Link TL-SF1009P, a professional 9-port switch with 8 PoE+ ports. This switch offers easy Plug and Play installation with PoE transmission, ideal for various applications such as surveillance in offices, dormitories and small businesses.
The 8 PoE+ ports support up to 30 W of power per port according to the 802.3af/at PoE+ standard, with a total budget of 65 W, making the switch perfectly compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP surveillance with a transmission range of up to 250 m in extended mode, perfect for deploying IP cameras in large areas, although the port speed will drop to 10 Mbps in extended mode. Actual transmission distance may vary depending on the power consumption of the PoE devices and the quality and type of cable.
Advanced features such as Priority Mode and Isolation Mode ensure a smoother and safer surveillance experience.
Intelligent power management ensures that when the total power consumption of 65 W is exceeded, lower priority ports automatically receive less power. This protects higher priority ports from overloading and prevents damage to PoE and non-PoE devices.
The robust metal casing protects internal components and extends the lifetime of the switch, which has successfully passed numerous reliability tests.
