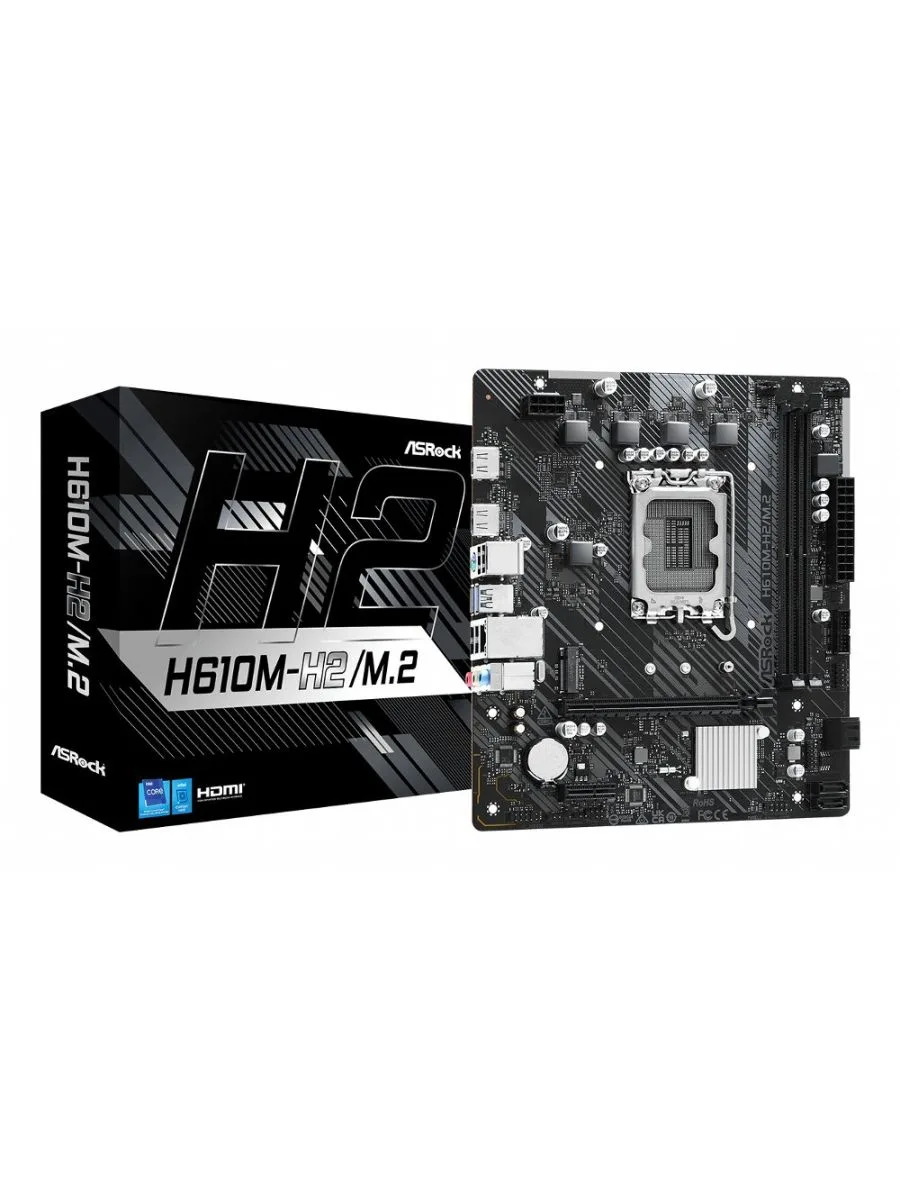

ASRock H610M-H2/M.2 | Socket LGA 1700 | Intel H610 | 2xDDR4 | Micro ATX | Motherboard

The ASRock H610M-H2/M.2 is a solid Micro-ATX motherboard designed for modern Intel systems with the LGA 1700 socket, supporting 12th, 13th, and 14th Gen Intel® Core processors. Featuring the Intel H610 chipset, it offers an excellent balance of performance, functionality, and long-term reliability.

This motherboard supports up to 64 GB of DDR4 memory across two DIMM slots in dual-channel mode, with speeds up to DDR4-3200 MHz (non-ECC, unbuffered) and Intel® XMP profiles. Storage options include one Ultra M.2 slot (PCIe Gen3 x4, up to 32 Gb/s) and four SATA3 ports for SSDs or hard drives.

For expansion, the board provides one PCIe 4.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for additional devices. The dual HDMI 2.1 outputs support up to 4K @ 60 Hz when using processors with integrated Intel® UHD Graphics.

Connectivity is handled by a Realtek® Gigabit LAN controller (up to 1 Gbps). It includes six USB 2.0 ports (four rear, two internal) and four USB 3.2 Gen1 ports (two rear, two internal). Audio is powered by the Realtek ALC897 7.1-channel HD codec, while multiple 4-pin fan headers, including a pump header, ensure flexible cooling options.

With its compact Micro-ATX form factor (22.0 × 19.3 cm), the board fits easily into most PC cases. The combination of modern socket support, fast DDR4 memory, M.2 storage, PCIe 4.0 expansion, and solid network and audio performance makes the ASRock H610M-H2/M.2 an ideal choice for business desktops, workstations, or compact gaming builds.
