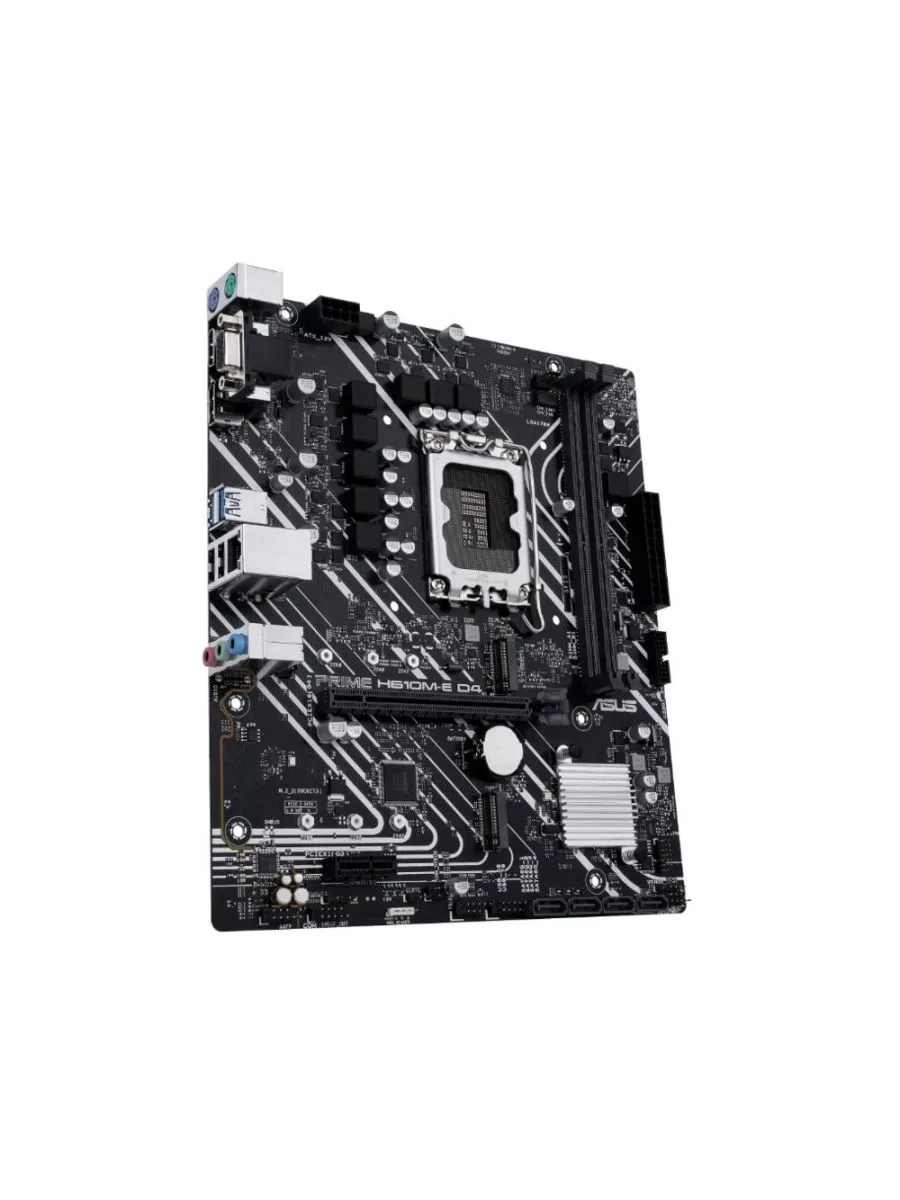

ASUS PRIME H610M-E D4-CSM | Socket LGA 1700 | Intel H610 | 2xDDR4 | Micro-ATX | Motherboard

Warranty	1 jaar via Complies
SKU	90MB19N0-M0EAYC
EAN	4711081514800
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	2
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory:	64 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® Coreâ„¢ i3, IntelÂ® Coreâ„¢ i5, IntelÂ® Coreâ„¢ i7, IntelÂ® Coreâ„¢ i9, IntelÂ® PentiumÂ®
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	4
S/PDIF out connector:	Y
Audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	2
Number of COM connectors:	1
TPM connector:	Y
12V power connector:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
VGA (D-Sub) ports quantity:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
Network
Ethernet LAN:	Y
Ethernet interface type:	Gigabit Ethernet
Wake-on-LAN ready:	Y
Wi-Fi:	N
Expansion slots
PCI Express x1 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	2
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel H610
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	244 mm
Depth:	211 mm
Height:	221 mm
Packaging content
Cables included:	SATA
Drivers included:	Y
Other features
Weight:	382 g

Productomschrijving

The Intel® LGA 1700 socket: Ready for 12th generation Intel® processors. This socket offers excellent cooling with PCH cooling and Fan Xpert 2+. Enjoy ultra-fast connectivity with the M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support. With a maximum internal memory of 64 GB and compact dimensions (244 mm x 211 mm x 221 mm), this motherboard provides powerful performance in a compact form.

More…
