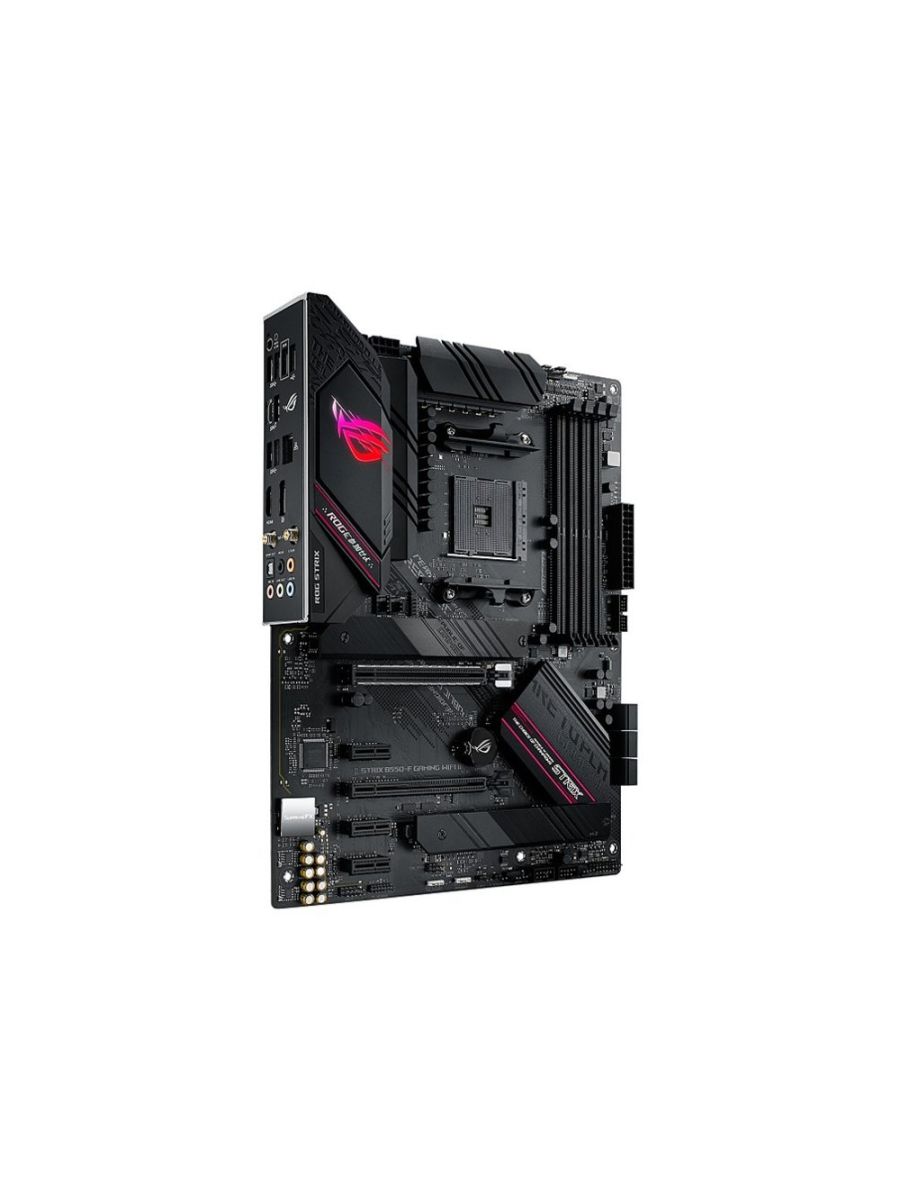

ASUS ROG STRIX B550-F GAMING WIFI II | Socket AM4 | AMD B550 | 4× DDR4 | ATX | Motherboard

Warranty	3 jaar via Complies
SKU	90MB19V0-M0EAY0
EAN	4711081453314
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Supported memory clock speeds:	2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz
Maximum internal memory:	128 GB
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Compatible processor series:	3rd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Maximum number of SMP processors:	1
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	6
Number of EATX power connectors:	1
CPU fan connector:	Y
Number of chassis fan connectors:	3
Peripheral (Molex) power connectors (4-pin):	1
EPS power connector (8-pin):	Y
Thunderbolt headers:	1
12V power connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.2
Headphone outputs:	1
Microphone in:	Y
S/PDIF out port:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Intel I225-V
Wake-on-LAN ready:	Y
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.2
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x1 (Gen 3.x) slots:	3
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	6
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B550
Audio output channels:	7.1 channels
Cooling type:	Active
Power source type:	ATX
Windows operating systems supported:	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	68 mm
Packaging content
Cables included:	SATA
Drivers included:	Y
Other features
Weight:	945 g

Productomschrijving

A high-end motherboard designed for PC enthusiasts, gamers and content creators looking for a powerful and reliable foundation for their system. This motherboard is compatible with AMD processors and uses the B550 chipset, meaning it is ready for the latest technologies and performance.

More…
