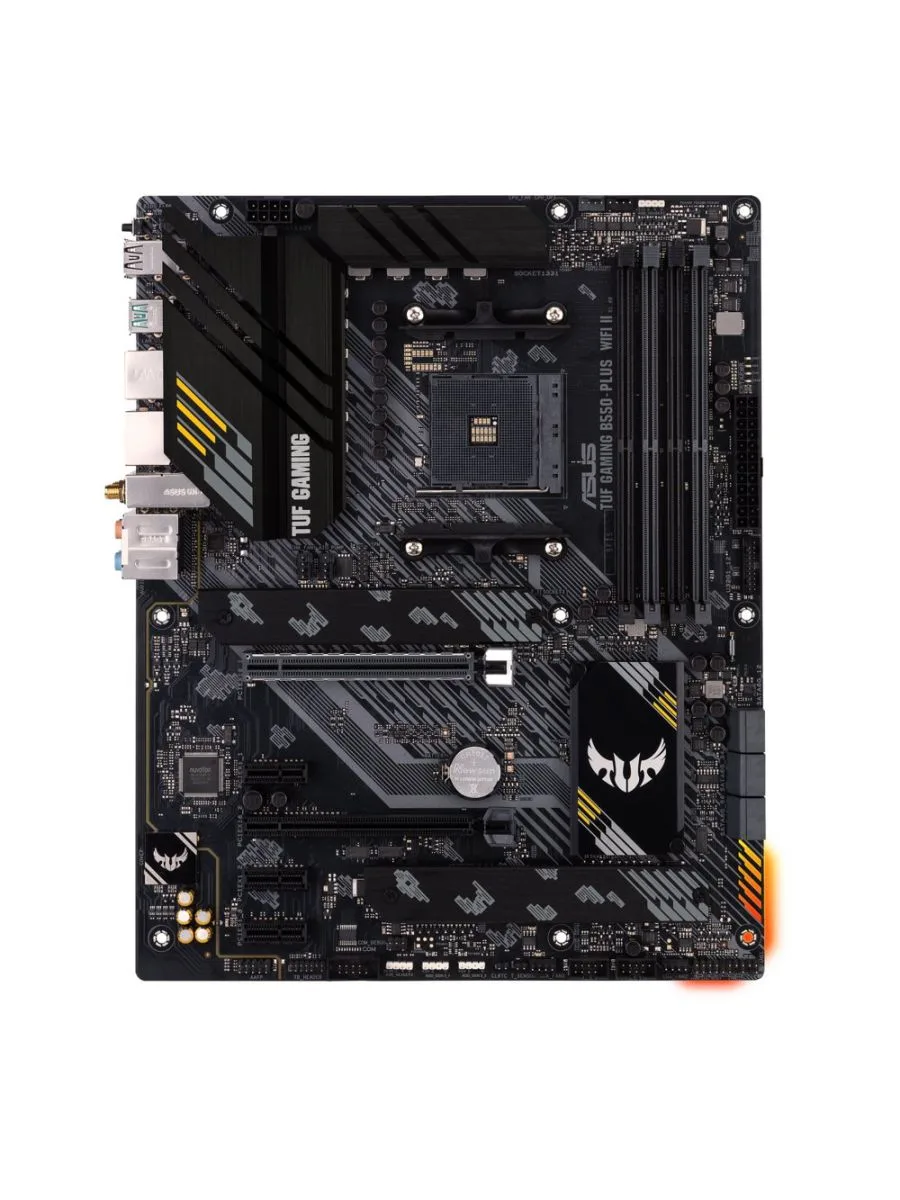

ASUS TUF GAMING B550-PLUS WIFI II | Socket AM4 | AMD B550 | 4xDDR4 | ATX | Motherboard

Warranty	3 jaar via fabrikant
SKU	90MB19U0-M0EAY0
EAN	4711081338413
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Yes
Supported memory clock speeds:	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Compatible processor series:	3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Supported processor sockets:	Socket AM4
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Number of SATA III connectors:	6
Front panel audio connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	3
EPS power connector (8-pin):	Yes
Number of COM connectors:	1
TPM connector:	Yes
Thunderbolt headers:	1
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
Headphone outputs:	1
Line-in:	Yes
Microphone in:	Yes
S/PDIF out port:	Yes
USB connector type:	USB Type-A, USB Type-C
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.2
Graphics
Parallel processing technology support:	Not supported
On-board graphics adapter:	No
Number of displays supported:	2
Expansion slots
PCI Express x1 (Gen 3.x) slots:	3
PCI Express x16 (Gen 3.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA
RAID support:	Yes
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B550
Audio output channels:	7.1 channels
Product colour:	Black
Windows operating systems supported:	Windows 10, Windows 11
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	75 mm
Packaging content
Cables included:	SATA
Drivers included:	Yes
Other features
Weight:	945 g
Packaging content:	2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide

Productomschrijving

Step into the world of uncompromising gaming with the ASUS TUF GAMING B550-PLUS WIFI II. This motherboard, designed for AMD processors, provides a powerful and reliable foundation for gaming enthusiasts who demand top-notch performance.

Featuring a Socket AM4 processor socket, the TUF GAMING B550-PLUS WIFI II is compatible with 3rd Generation AMD Ryzen 5, 7, and 9 processors. Support for DDR4-SDRAM up to 128 GB and DIMM memory slots ensures fast and responsive performance for your gaming experience.

For storage options, this motherboard provides various choices, including M.2 and SATA interfaces for HDDs and SSDs. The support for RAID configurations (0, 1, 10) enhances data protection and performance, providing a stable storage solution.

With a diverse range of USB connectors, including USB Type-A and USB Type-C, you are prepared for the future of connectivity. The 2.5 Gigabit Ethernet interface and the latest Wi-Fi 6 (802.11ax) standard ensure fast and reliable network connections, crucial for online gaming.

Built with the TUF Gaming mentality, this motherboard stands for durability and reliability. It is designed to withstand the intensity of gaming sessions and offers all essential features to elevate your gaming rig to the next level.
