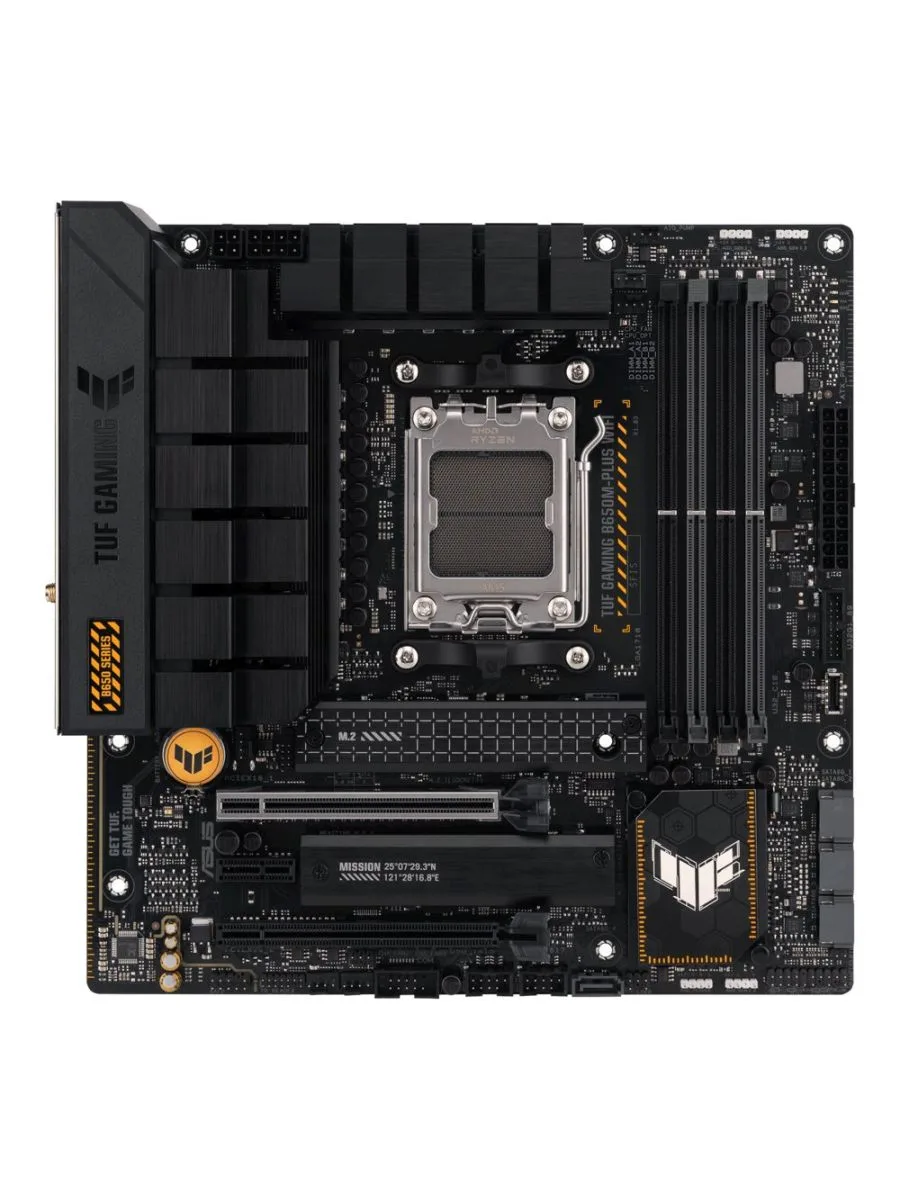

ASUS TUF GAMING B650M-PLUS WIFI | AMD B650 | Socket AM5 | Micro-ATX Motherboard

Warranty	2 jaar via Complies
SKU	90MB1BF0-M0EAY0
EAN	4711081912118
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Y
Non-ECC:	Y
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory:	128 GB
Unbuffered memory:	Y
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
Number of SATA III connectors:	4
Front panel audio connector:	Y
ATX Power connector (24-pin):	Y
CPU fan connector:	Y
Number of chassis fan connectors:	3
EPS power connector (8-pin):	Y
Number of COM connectors:	1
Thunderbolt headers:	1
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
DisplayPorts quantity:	1
Line-in:	Y
Microphone in:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.2
Expansion slots
PCI Express x1 (Gen 4.x) slots:	1
PCI Express x16 (Gen 4.x) slots:	2
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of storage drives supported:	6
RAID support:	Y
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B650
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width:	244 mm
Depth:	244 mm

Productomschrijving

The ASUS TUF GAMING B650M-PLUS WIFI is a high-quality motherboard designed for gamers and PC enthusiasts looking for a reliable and powerful foundation for their system.
