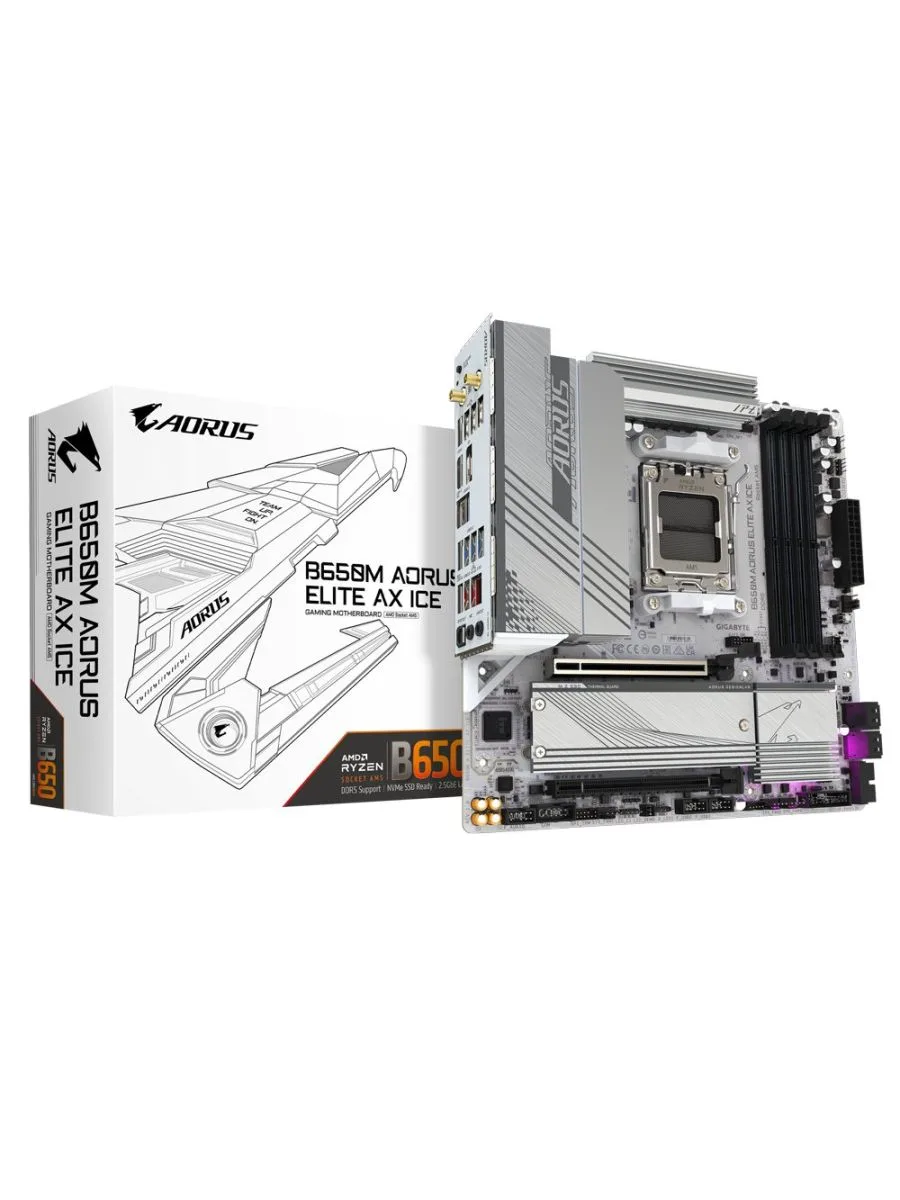

Gigabyte B650M AORUS ELITE AX ICE | Socket AM5 | AMD B650 | 4xDDR5 | Micro ATX | Motherboard

Warranty	2 jaar via Complies
SKU	B650M-AORUS-ELITE-AX-ICE
EAN	4719331859336
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Yes
Non-ECC:	Yes
Supported memory clock speeds:	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory clock speed (max):	8000 MHz
Maximum internal memory:	192 GB
Supported memory module capacities:	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzenâ„¢ 7
Maximum number of SMP processors:	1
Maximum internal memory supported by processor:	192 GB
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2x2 connectors:	1
Number of SATA III connectors:	4
Total number of SATA connectors:	4
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	4
Thunderbolt headers:	2
12V power connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model:	Realtek RTL8852CE
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Maximum resolution:	4096 x 2304 pixels
HDCP:	Yes
DirectX version:	12.0
Expansion slots
PCI Express x16 slots:	1
PCI Express x16 (Gen 4.x) slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	6
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	micro ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B650
Audio output channels:	7.1 channels
Product colour:	White
PC health monitoring:	Fan, Temperature, Voltage
Logistics data
Country of origin:	China
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	270 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	268 mm
Features
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Packaging data
Package height:	68 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	1.89 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	244 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Cables included:	SATA
Batteries included:	Yes
Drivers included:	Yes
Technical details
Warranty period:	3 year(s)

Productomschrijving

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
