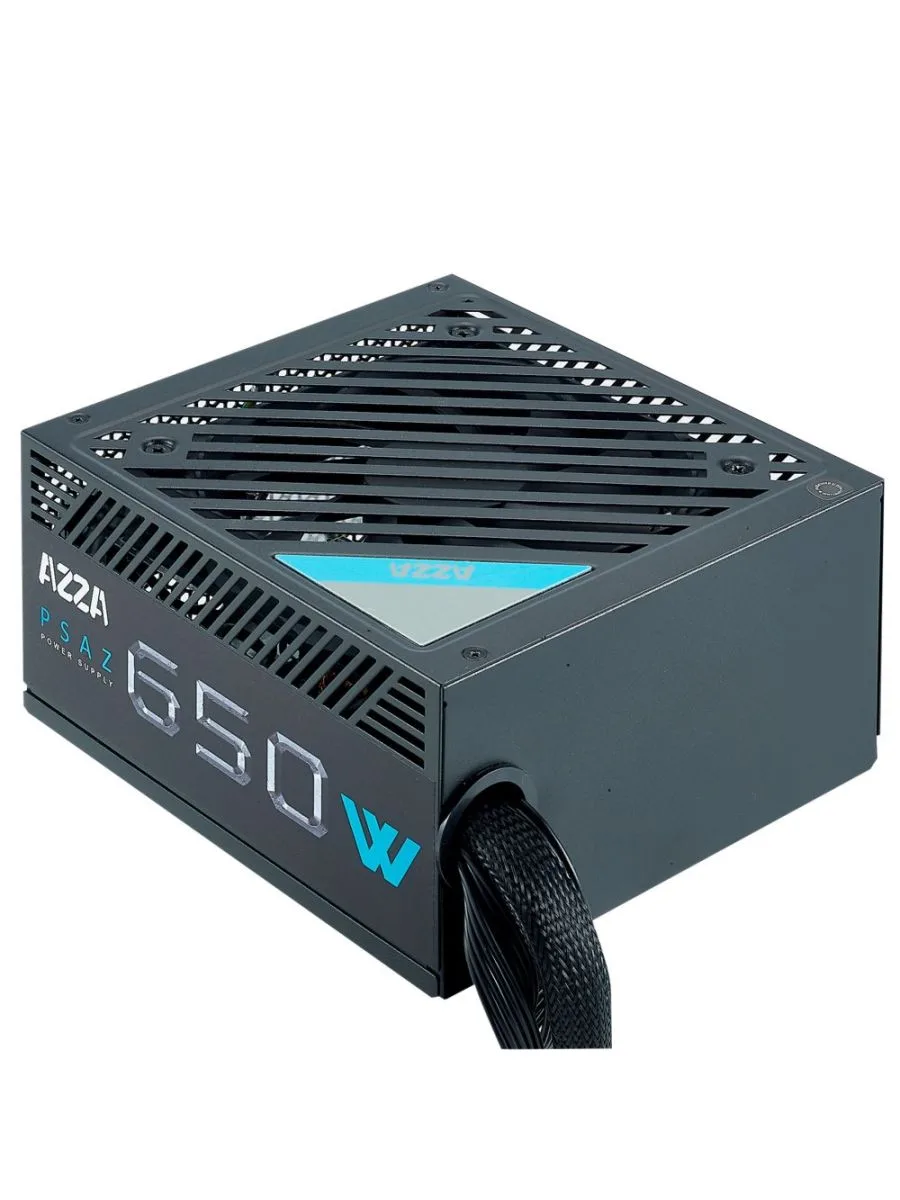

Azza PSAZ-650W | 650 Watt Bronze ATX PSU | Power Supply | PSU

Warranty	2 jaar via Complies
SKU	PSAZ-650W
EAN	4712839557445
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	650 W
AC input voltage:	200 - 240 V
AC input frequency:	47 - 53 Hz
Combined power (+3.3V):	100 W
Combined power (+12V):	576 W
Combined power (+5V):	100 W
Combined power (-12V):	4.8 W
Combined power (+5Vsb):	12.5 W
Max output current (+3.3V):	20 A
Max output current (+12V):	48 A
Max output current (+5V):	20 A
Max output current (-12V):	0.4 A
Max output current (+5Vsb):	2.5 A
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Motherboard power cable length:	50 cm
Number of SATA power connectors:	5
Peripheral (Molex) power connectors (4-pin):	2
EPS power connector (8-pin):	Yes
PCI Express power connectors (6+2 pin):	2
Cabling type:	Non-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Bronze
Certification:	FCC, CE, TUV, RoHS, RCM
Design
Product colour:	Black
On/off switch:	Yes
Technical details
Sustainability certificates:	RoHS
Compliance certificates:	RoHS
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
Logistics data
Harmonized System (HS) code:	84733020

Productomschrijving

Azza PSAZ-650W. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 53 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Width: 150 mm, Depth: 140 mm, Height: 86 mm
