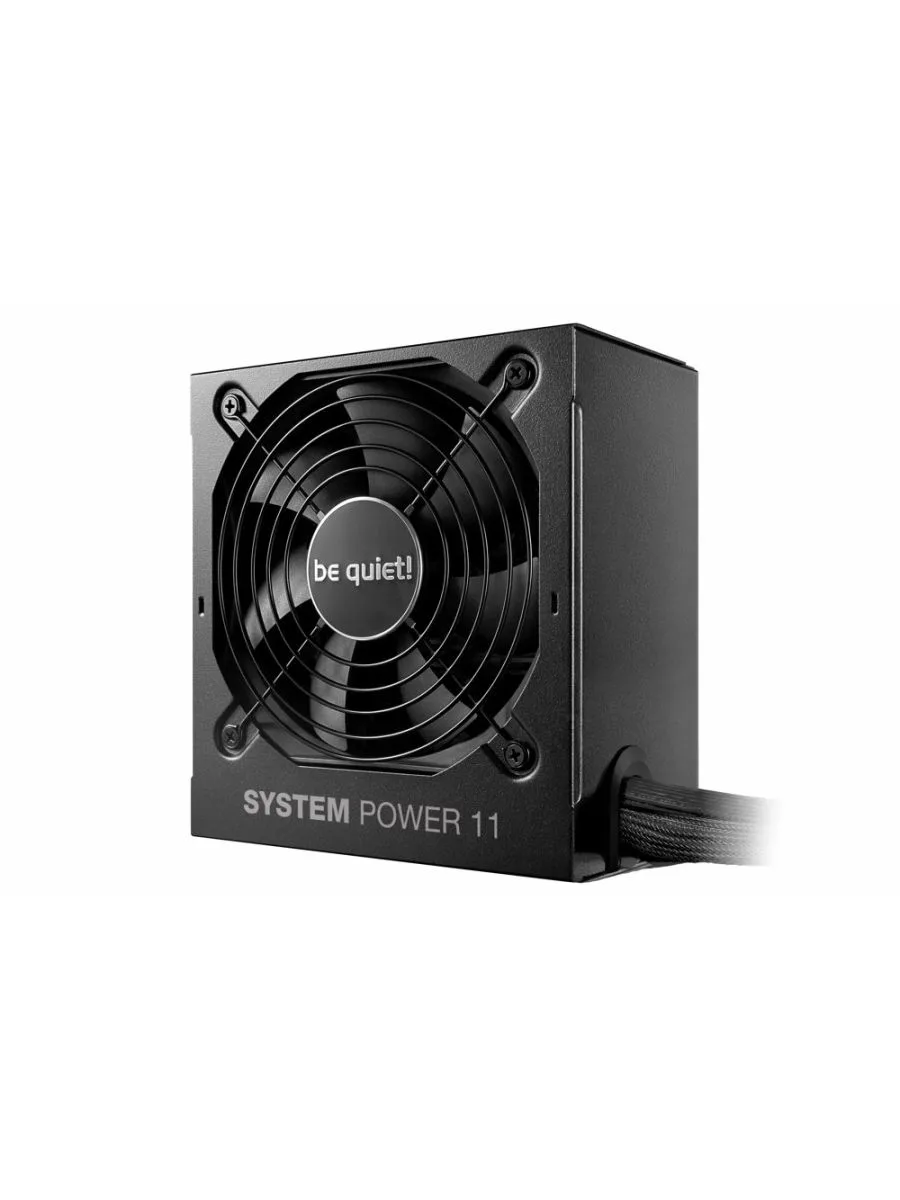

be quiet! System Power 11 650W | 650 Watt Bronze ATX PSU | Non Modular | Power Supply | PSU

Warranty	2 jaar via Complies
SKU	BP011EU
EAN	4260052191873
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Power
Total power:	650 W
AC input voltage:	200 - 240 V
AC input frequency:	50 Hz
Input current:	4 A
Power factor:	0.98
Number of +12V rail(s):	1
Combined power (+3.3V):	120 W
Combined power (+12V):	650 W
Combined power (+5V):	120 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	20 A
Max output current (+12V1):	54.17 A
Max output current (+5V):	20 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Hold time:	17.04 ms
Efficiency:	89.7%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Number of SATA power connectors:	5
Peripheral (Molex) power connectors (4-pin):	1
PCI Express power connectors (6+2 pin):	2
PCI Express power connectors (12-pin):	1
CPU P4 connector (4-pin):	1
CPU power connector (4+4 pin):	Yes
Cabling type:	Non-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Bronze
ATX version:	3.1
EPS version:	2.92
Noise level:	30.9 dB
Bearing technology:	Rifle
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan speed:	0 - 2100 RPM
On/off switch:	Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance:	Yes
Compliance certificates:	CB, CE, RoHS, TÃœV mark, UKCA, WEEE
Technical details
Sustainability certificates:	ENERGY STAR, ErP
Weight & dimensions
Width:	150 mm
Depth:	86 mm
Height:	140 mm
Weight:	1.97 kg
Packaging data
Package width:	195 mm
Package depth:	268 mm
Package height:	97 mm
Package weight:	2.4 kg
Package type:	Box
Logistics data
Shipping (inner) case length:	55.6 cm
Shipping (inner) case width:	31.1 cm
Shipping (inner) case height:	21.8 cm
Quantity per shipping (inner) case:	6 pc(s)
Shipping (inner) case weight:	15.2 kg
Other features
Screws included:	Yes
Cable ties included:	Yes

Productomschrijving

Proven Reliability, Quiet Operation
System Power 11 650W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 650W offers even at entry-level.
