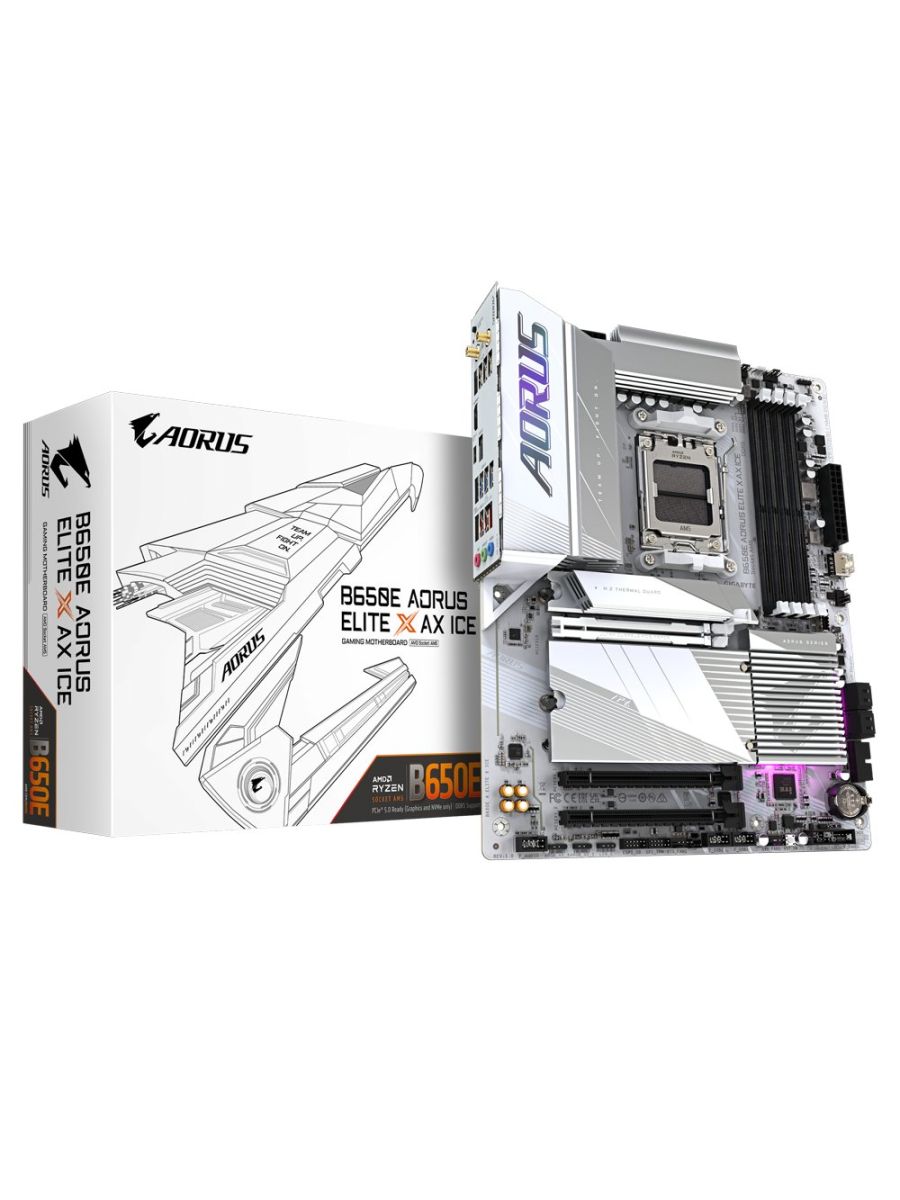

Gigabyte B650E AORUS ELITE X AX ICE | Socket AM5 | AMD B650E | 4xDDR5 | ATX | Moederbord

Warranty	2 jaar via Complies
SKU	B650E-A-ELITE-X-ICE
EAN	4719331860554
Condition	New

Ontdek onze prijzen

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:	Yes
Non-ECC:	Yes
Supported memory clock speeds:	8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Supported memory clock speed (max):	8000 MHz
Maximum internal memory:	192 GB
Supported memory module capacities:	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 48GB
Unbuffered memory:	Yes
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzen™ 7
Maximum number of SMP processors:	1
Supported processor sockets:	Socket AM5
Maximum internal memory supported by processor:	192 GB
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2x2 connectors:	1
Number of SATA III connectors:	4
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of chassis fan connectors:	4
Thunderbolt headers:	2
12V power connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model:	AMD RZ616
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Maximum resolution:	4096 x 2160 pixels
HDCP:	Yes
Expansion slots
PCI Express x16 slots:	3
Number of M.2 (M) slots:	3
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Clear CMOS button:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	3
Number of storage drives supported:	7
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B650
Audio output channels:	7.1 channels
Product colour:	White
PC health monitoring:	Fan, Temperature, Voltage
Logistics data
Country of origin:	China
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	335 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	270 mm
Features
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Packaging data
Package height:	80 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	2.19 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Cables included:	SATA
Batteries included:	Yes
Drivers included:	Yes
Bundled software:	Norton Internet Security (OEM version) LAN bandwidth management software
Technical details
Warranty period:	3 year(s)

Productomschrijving

GIGABYTE B650E AORUS ELITE X AX ICE. Processorfabrikant: AMD, Processor socket: Socket AM5, Compatibele processors: AMD Ryzen™ 7. Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 192 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Maximum resolutie: 4096 x 2160 Pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 6E (802.11ax), Wi-Fi-standaarden: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
