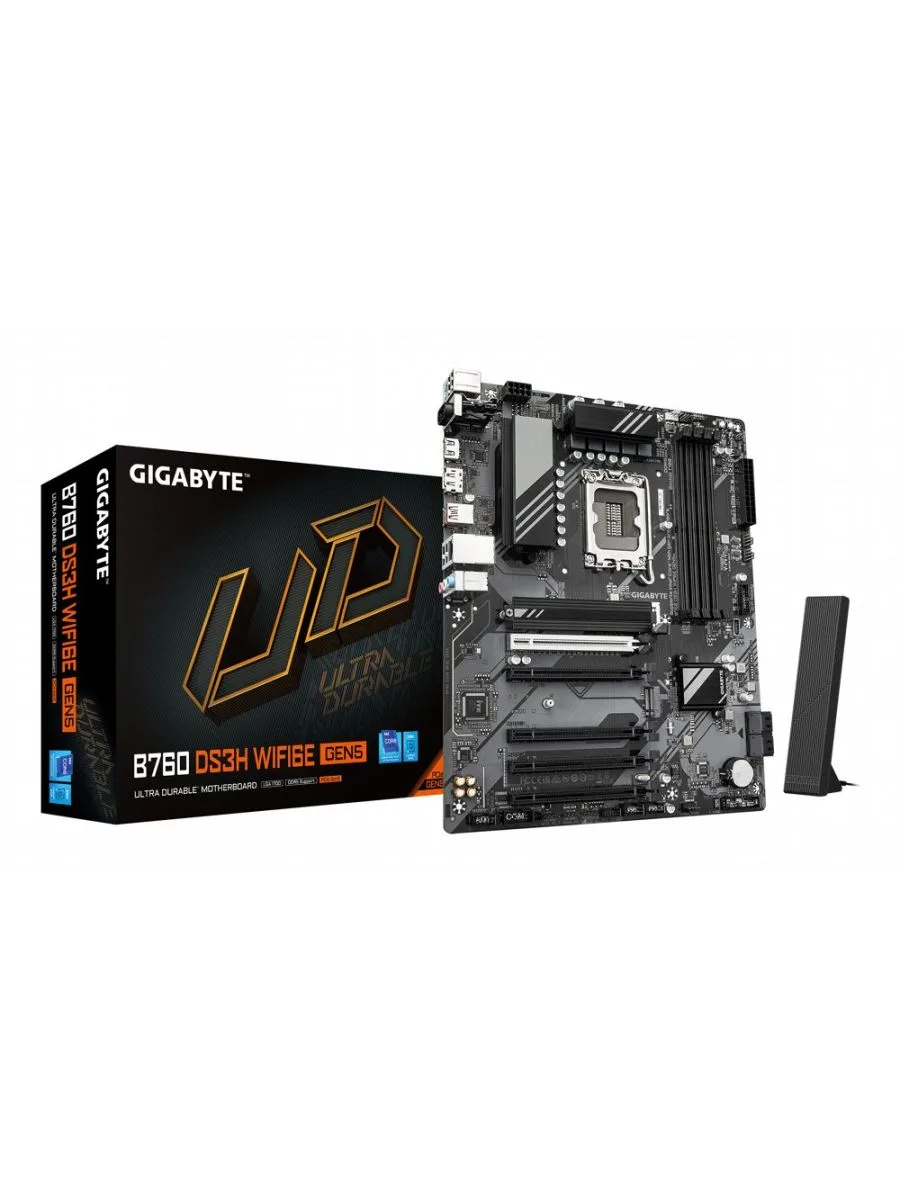

GIGABYTE B760 DS3H WIFI6E GEN5 | Intel B760 Express | LGA 1700 | ATX | DDR5 | PCIe 5.0 | WiFi 6E | 2.5GbE LAN | Motherboard

Warranty	2 jaar via Complies
SKU	B760-DS3H-WF6E-GEN5
EAN	4719331872939
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC Ñompatibility:	ECC & Non-ECC
Supported memory clock speeds:	5600,5200,4800,4400 MHz
Supported memory clock speed (max):	5600 MHz
Maximum internal memory:	256 GB
Unbuffered memory:	Yes
Maximum internal memory per slot:	64 GB
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, IntelÂ® PentiumÂ® Gold
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	0
Number of SATA III connectors:	4
S/PDIF out connector:	Yes
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Number of CPU fan connectors:	2
Number of chassis fan connectors:	4
EPS power connector (8-pin):	Yes
Number of EPS power connectors (8-pin):	1
TPM connector:	Yes
Serial port headers:	1
12V power connector:	Yes
Number of water pump connectors:	2
RGB LED pin header:	Yes
Number of RGB LED pin headers:	4
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	0
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
PS/2 ports quantity:	1
VGA (D-Sub) ports quantity:	0
HDMI ports quantity:	1
HDMI version:	2.1
DVI-D ports quantity:	0
DisplayPorts quantity:	2
DisplayPort version:	1.2
Headphone outputs:	1
Line-in:	Yes
Microphone in:	Yes
WiFi-AP antenna jack:	2
Network
Ethernet LAN:	Yes
Ethernet interface type:	Gigabit Ethernet
LAN controller:	Realtek RTL8111H
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model:	Intel Wi-Fi 6E AX210
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Maximum resolution:	4096 x 2304 pixels
HDCP:	Yes
DirectX version:	12.0
Expansion slots
PCI Express x16 (Gen 3.x) slots:	4
PCI Express x16 (Gen 5.x) slots:	1
Number of M.2 (M) slots:	2
1st M.2 largest key size:	22110
1st M.2 highest PCI Express generation:	4.0
2nd M.2 largest key size:	2280
2nd M.2 highest PCI Express generation:	4.0
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	128 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, PCI Express 4.0, SATA III
Number of HDDs supported:	4
Number of storage drives supported:	6
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760 Express
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Product colour:	Dark brown
PC health monitoring:	Fan, Temperature, Voltage, Water cooling
Cooling type:	Passive
Power source type:	ATX
Logistics data
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	335 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	270 mm
Features
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Packaging data
Package height:	80 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	1.55 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Batteries included:	Yes
Antenna included:	Yes
Screws included:	Yes
Bundled software:	NortonÂ® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight:	1.31 kg
Technical details
Warranty period:	3 year(s)

Productomschrijving

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
