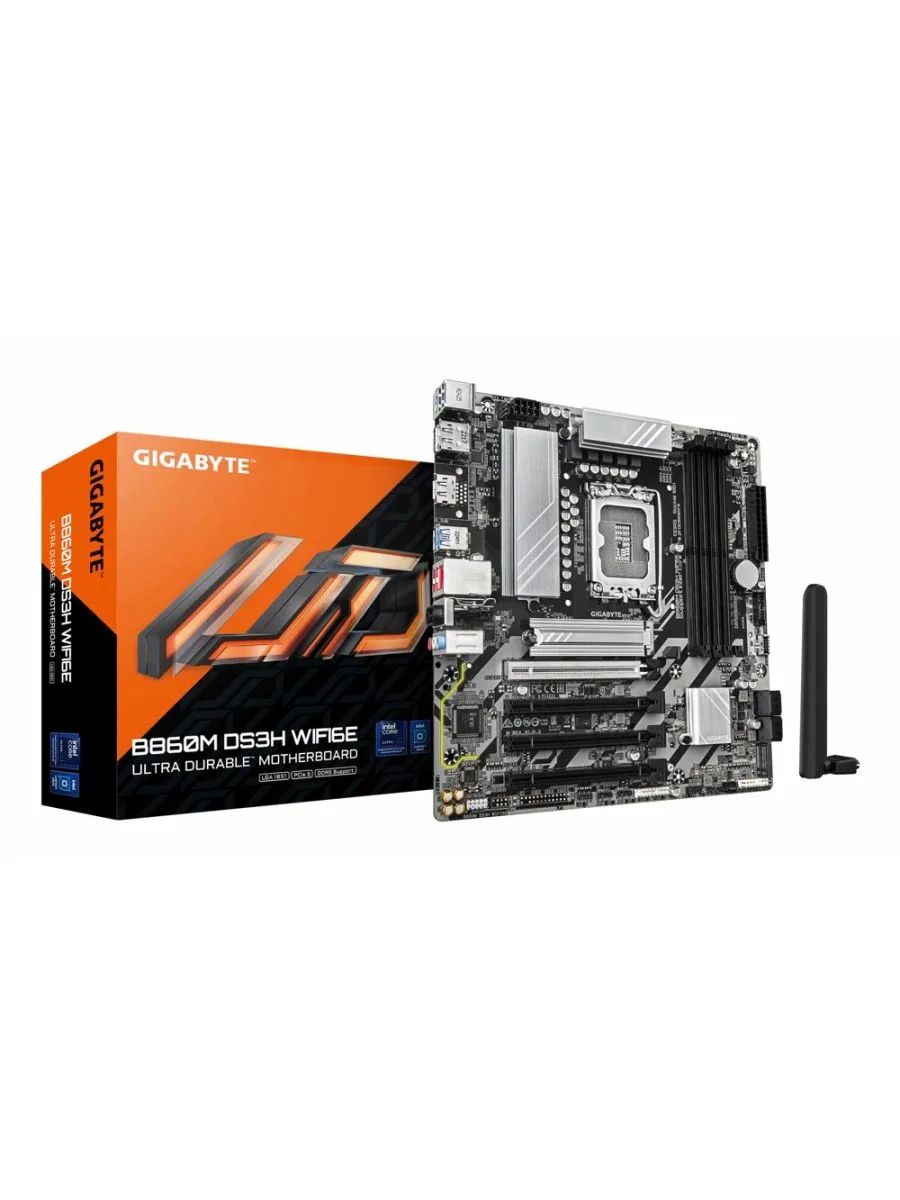

Gigabyte B860M DS3H WIFI6E | Sockel LGA 1851 (V1) | Intel B860 | 4xDDR5 | Micro ATX | Mainboard

The Gigabyte B860M DS3H WIFI6E is a powerful micro ATX motherboard that combines excellent performance with modern features in a compact design. Thanks to its Socket LGA 1851 (V1), the board is compatible with the latest Intel Core 100 and 200 series processors, including the newly introduced Intel Core Ultra models. This makes it a reliable and future-ready foundation for both gaming and professional applications.

The board features four DDR5 DIMM slots supporting up to 256 gigabytes of memory. With the help of Intel XMP profiles, speeds of up to DDR5 9066 (OC) can be achieved, ensuring high efficiency, stable performance and smooth multitasking even under heavy workloads. The power delivery system is carefully designed with a digital VRM configuration, providing steady voltage and consistent performance during prolonged use.

In terms of storage, the B860M DS3H WIFI6E is impressively equipped. It offers two M.2 slots, one of which connects directly to the CPU and supports PCIe 5.0 x4, ideal for next-generation NVMe SSDs with ultra-high transfer speeds. The second M.2 slot runs through the chipset and supports PCIe 4.0 x4. There are also four SATA 6 Gb/s ports for additional drives. For graphics cards, a full PCIe x16 slot with PCIe 5.0 support ensures that powerful GPUs can reach their full potential.

Connectivity is fully up to date. The board includes 2.5 Gigabit LAN for fast wired networking and Wi-Fi 6E for high-speed wireless connections with low latency. Bluetooth 5.3 is also available for modern peripherals. On the rear I/O panel, you will find multiple USB 3.2 Gen 2 ports, a USB Type-C connector, as well as HDMI 2.1 and DisplayPort 1.4 outputs, allowing you to easily connect multiple displays.

The audio system is powered by a Realtek HD audio codec with 7.1-channel support, delivering clear and precise sound for movies, music and gaming. The motherboard is also designed with ease of use in mind. Features such as EZ Latch make it simple to install M.2 drives and GPUs, while Q-Flash Plus allows you to update the BIOS even without a processor or memory installed.

The Gigabyte B860M DS3H WIFI6E offers an impressive blend of performance, stability and modern technology. With support for Intel Core 100 and 200 series processors, fast DDR5 memory, PCIe 5.0 storage and advanced network connectivity, this motherboard is an excellent choice for anyone building a powerful and future-proof PC.
