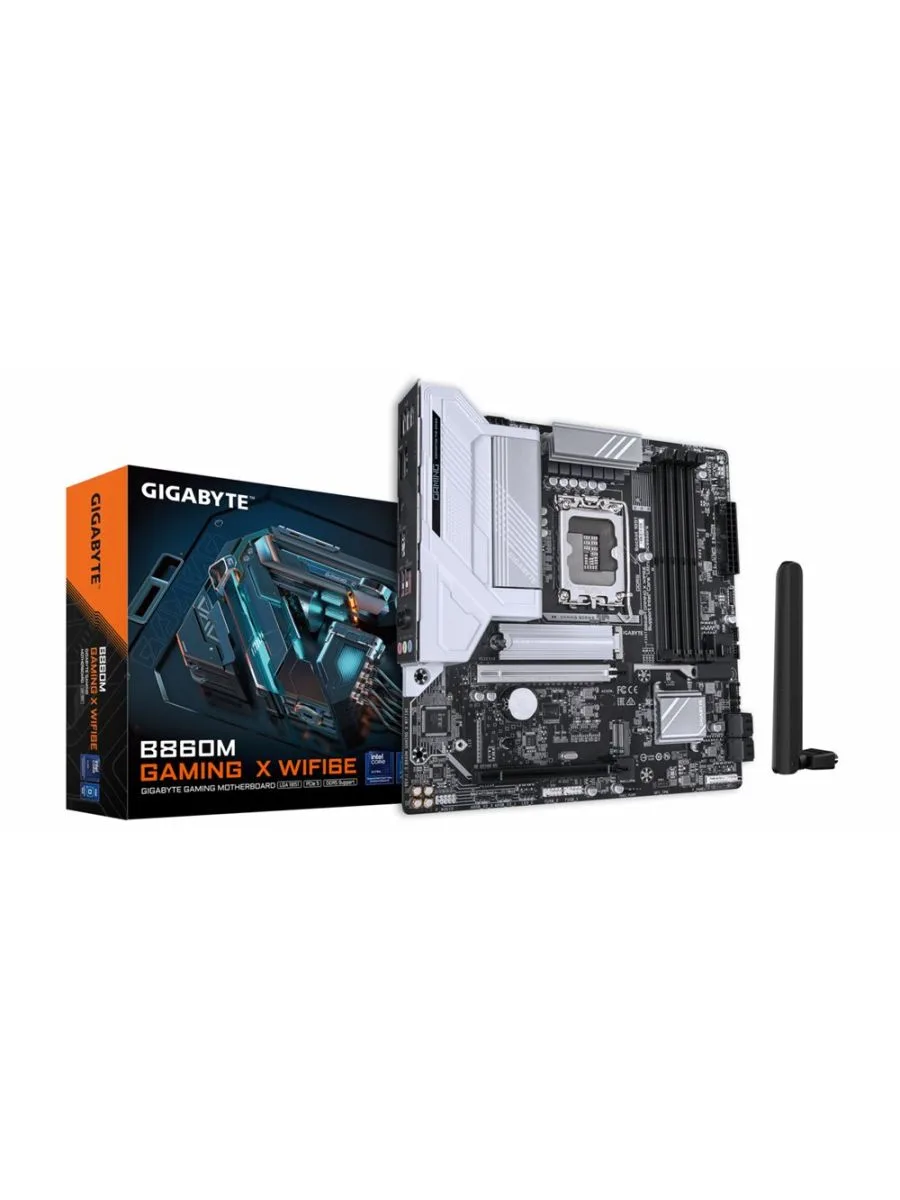

Gigabyte B860M GAMING X WIFI6E | Sockel LGA 1851 (V1) | Intel B860 | 4xDDR5 | Micro ATX | Mainboard

The Gigabyte B860M GAMING X WIFI6E is a powerful and versatile micro-ATX motherboard designed for the modern Intel LGA 1851 (V1) platform based on the Intel B860 chipset. It’s ideal for gamers and professionals who want to take full advantage of the latest generation Intel Core Ultra processors in a compact, efficient, and reliable system.

Equipped with four DDR5 memory slots, the board supports frequencies ranging from 4800 MHz up to 9200 MHz (OC) with a maximum capacity of 256 GB. With support for Intel XMP profiles, memory performance can be easily optimized for higher speeds without manual tuning. The high-quality signal design ensures excellent stability, even under heavy workloads or mild overclocking.

Power delivery is handled by a digital 8 + 1 + 2 phase VRM architecture featuring efficient DrMOS components that provide stable voltage to the CPU, integrated graphics, and memory. Combined with sturdy heatsinks and enhanced thermal design, the system remains cool and reliable even during sustained high performance.

For expansion, the board offers a PCIe 5.0 x16 slot with metal reinforcement for graphics cards and an additional PCIe 4.0 x16 slot connected through the chipset. This allows support for the latest GPUs and additional expansion cards without compromising bandwidth or stability.

In terms of storage, the motherboard includes two M.2 slots — one supporting PCIe 5.0 x4 for ultra-fast NVMe SSDs and another supporting PCIe 4.0 x4 for additional drives. It also features four SATA 6 Gb/s ports for traditional storage devices. RAID 0, 1, 5, and 10 configurations are supported, allowing users to tailor their setup for speed, capacity, or data security.

Connectivity on the B860M GAMING X WIFI6E is fully future-ready. It features Wi-Fi 6E (802.11ax) with broad-band support, Bluetooth 5.3, and a 2.5 GbE LAN port for ultra-fast wired networking. Rear I/O connectivity includes a USB4 Type-C port with DisplayPort Alt Mode, a USB 3.2 Gen 2 Type-C port, multiple USB 3.2 and USB 2.0 ports, plus HDMI 2.1 and DisplayPort 2.1 outputs for CPUs with integrated graphics.

Ease of use is central to the design. EZ-Latch Plus allows for tool-free installation of PCIe and M.2 components, while EZ-Latch Click enables screw-less mounting of M.2 drives. The Q-Flash Plus button lets you update the BIOS without installing a CPU or memory, and Wi-Fi EZ-Plug ensures quick and secure antenna connection.

Built to the Gigabyte Ultra Durable standard, this motherboard combines a reinforced PCB structure with durable capacitors and optimized cooling. Measuring 24.4 × 24.4 cm, the micro-ATX form factor provides the perfect balance between compact size and expandability — ideal for modern cases where space is limited.

In summary, the Gigabyte B860M GAMING X WIFI6E delivers an impressive blend of performance, connectivity, and user-friendly design. With support for the latest Intel processors, high-speed DDR5 memory, PCIe 5.0, and Wi-Fi 6E, it’s the perfect foundation for a compact yet powerful gaming PC or professional workstation built for the future.
