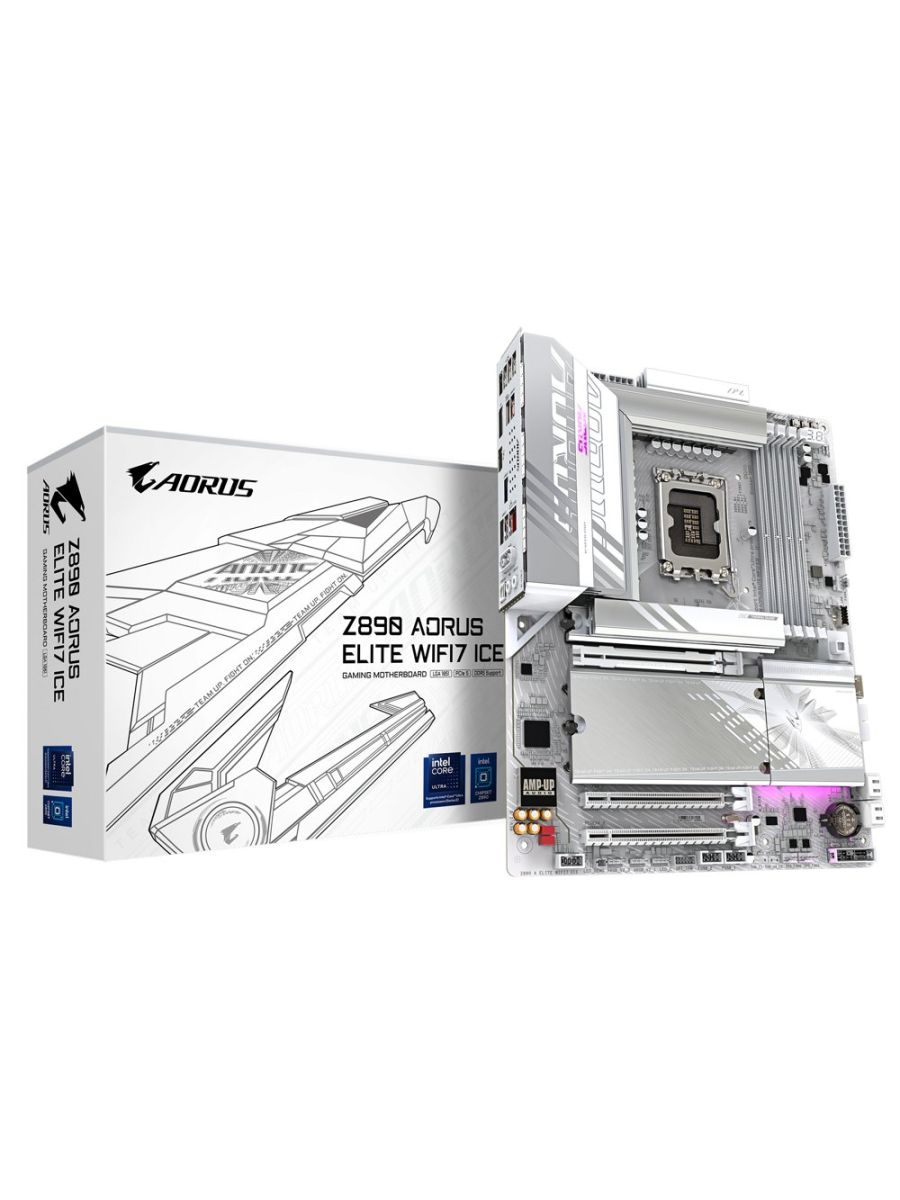

GIGABYTE Z890 AORUS ELITE WIFI7 ICE | Socket LGA 1851 | Intel B890 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	Z890-A-ELITE-WF7-ICE
EAN	4719331865221
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC Ñompatibility:	Non-ECC
Supported memory clock speeds:	5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
Supported memory clock speed (max):	8800 MHz
Maximum internal memory:	256 GB
Supported memory module capacities:	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1851 (Socket V1)
Compatible processor series:	Intel Core Ultra (Series 2)
Supported processor sockets:	LGA 1851
Maximum internal memory supported by processor:	256 GB
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Total number of SATA connectors:	4
ATX Power connector (24-pin):	Yes
EPS power connector (8-pin):	Yes
TPM connector:	Yes
12V power connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
DisplayPorts quantity:	2
Microphone in:	Yes
S/PDIF out port:	Yes
Thunderbolt ports quantity:	1
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 7 (802.11be)
Wi-Fi standards:	Wi-Fi 7 (802.11be)
WLAN controller model:	MediaTek MT7925
Bluetooth:	Yes
Bluetooth version:	5.4
Graphics
DirectX version:	12.0
Expansion slots
Number of M.2 (M) slots:	4
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:	Yes
Clear CMOS button:	Yes
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, SATA III
Number of HDDs supported:	8
Number of storage drives supported:	4
RAID support:	Yes
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z890
Audio chip:	Realtek ALC1220
Audio output channels:	7.1 channels
Product colour:	Black
PC health monitoring:	Fan, Temperature, Voltage
Logistics data
Country of origin:	China
Quantity per shipping (inner) case:	1 pc(s)
Battery
Battery weight:	3 g
Lithium weight per battery:	0.07 g
Packaging data
Package width:	335 mm
Battery
Number of battery cells:	1
Packaging data
Package depth:	270 mm
Features
Windows operating systems supported:	Windows 11 x64
Packaging data
Package height:	80 mm
Battery
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Packaging data
Package weight:	3.15 kg
Battery
Battery type:	CR2032
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	35 mm
Packaging content
Batteries included:	Yes
Bundled software:	NortonÂ® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight:	2.87 kg
Technical details
Warranty period:	3 year(s)

Productomschrijving

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
