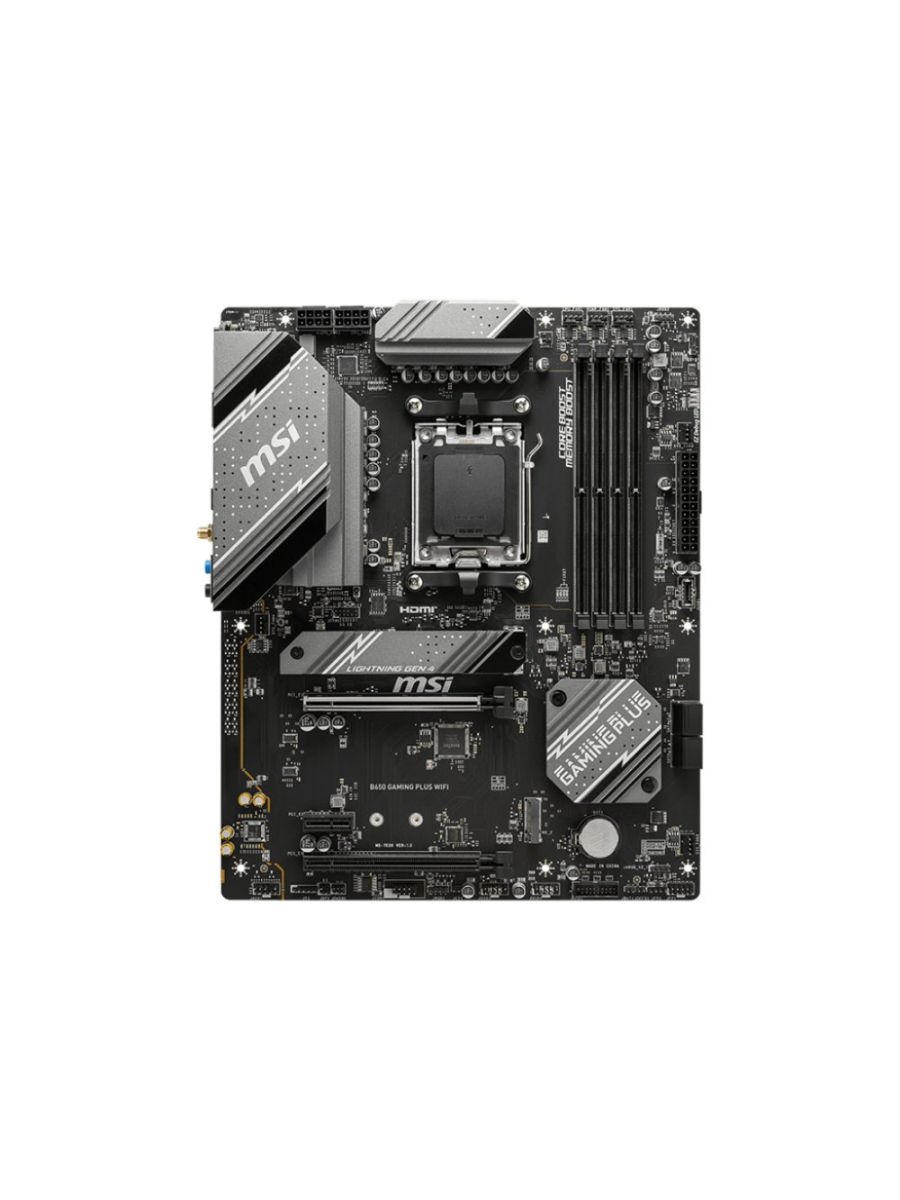

MSI B650 GAMING PLUS WIFI | Socket AM5 | AMD B650 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	7E26-001R
EAN	4711377098052
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Supported memory clock speeds:	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max):	6000 MHz
Maximum internal memory:	192 GB
Processor
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Compatible processor series:	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets:	Socket AM5
Internal I/O
USB 2.0 connectors:	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
ATX Power connector (24-pin):	Yes
CPU fan connector:	Yes
Chassis intrusion connector:	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	3
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
Headphone outputs:	1
Line-in:	Yes
Microphone in:	Yes
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Realtek RTL8125B
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Expansion slots
PCI Express x16 (Gen 3.x) slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	6.4
Storage controllers
Supported storage drive interfaces:	M.2, SATA
RAID levels:	0, 1, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	AMD
Motherboard chipset:	AMD B650
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
PC health monitoring:	Fan
Windows operating systems supported:	Windows 11 x64
Weight & dimensions
Width:	243.8 mm
Depth:	304.8 mm

Productomschrijving

Discover the MSI B650 GAMING PLUS WIFI - a powerful ATX motherboard designed for gaming and performance.

With DDR5-SDRAM support and a maximum internal memory of 192 GB, the B650 GAMING PLUS WIFI delivers high memory speeds ranging from 4800 to 6400 MHz. This ensures you are ready for the demands of modern games and applications.

The motherboard offers various storage options, including M.2 and SATA, with support for RAID configurations (0, 1, 10) for data security and performance enhancement.

Equipped with a 2.5 Gigabit Ethernet interface powered by the Realtek RTL8125B LAN controller and Wi-Fi 6 (802.11ax) connectivity, you can rely on fast and reliable network performance.

More…
