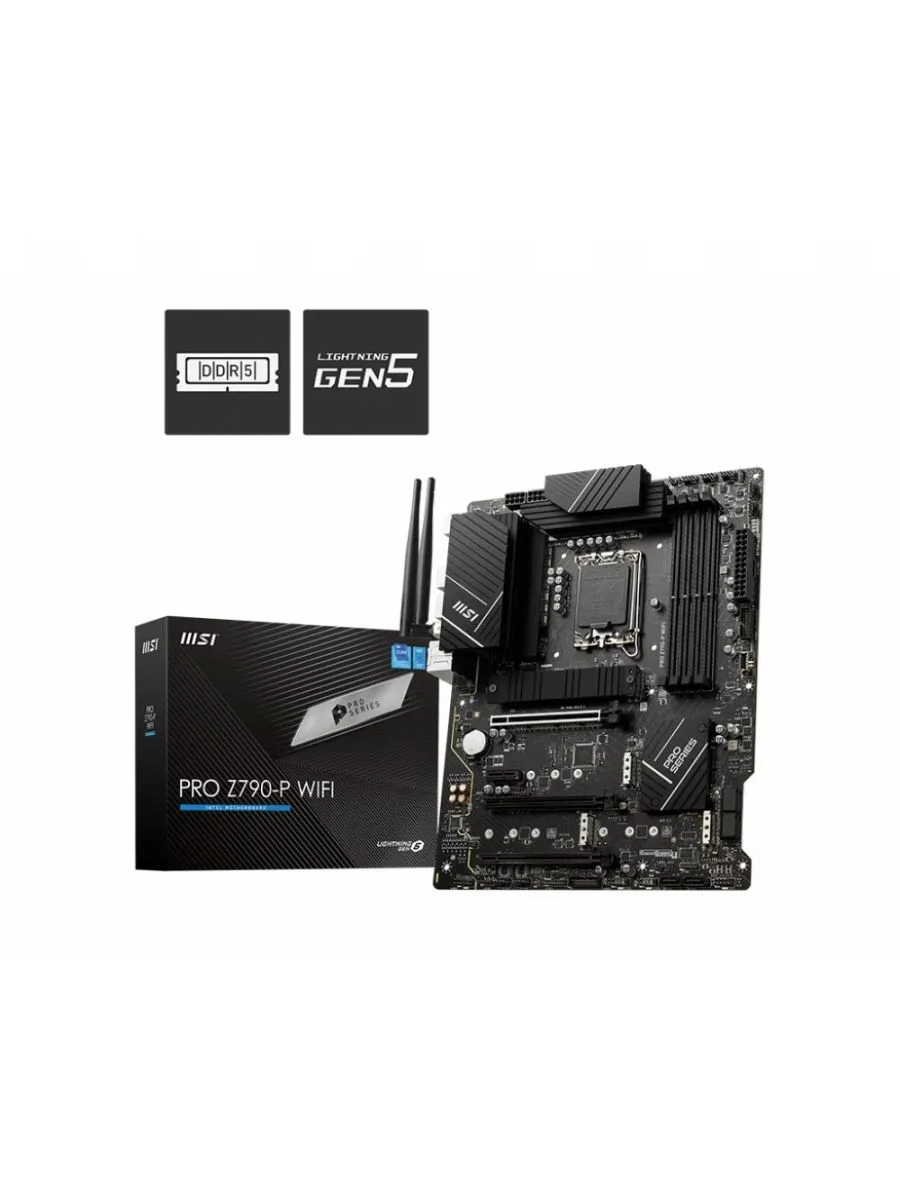

MSI PRO Z790-P WIFI | Socket LGA 1700 | Intel Z790 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	7E06-001R
EAN	4711377015738
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Non-ECC:	Y
Supported memory clock speeds:	2133,2400,2666,2800,2933,3000,3200,3333,3466,3600,3733,3866,4400,4533,4600,4800,5000,5066,5200,5333 MHz
Supported memory clock speed (max):	5333 MHz
Maximum internal memory:	128 GB
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® PentiumÂ® Gold
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	6
Front panel audio connector:	Y
Front panel connector:	Y
TPM connector:	Y
RGB LED pin header:	Y
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
DisplayPorts quantity:	1
DisplayPort version:	1.4
S/PDIF out port:	Y
Network
Ethernet LAN:	Y
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Y
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth:	Y
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Expansion slots
Number of M.2 (M) slots:	4
BIOS
BIOS type:	EFI AMI
BIOS memory size:	256 Mbit
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, PCI Express
Internal storage capacity:	10 GB
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z790
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width:	304.8 mm
Depth:	243.8 mm
Packaging content
Cables included:	SATA

Productomschrijving

The MSI PRO Z790-P WIFI is a versatile ATX motherboard designed for Intel processors with an LGA 1700 socket. It supports DDR4 memory up to 128 GB and various memory speeds up to 5333 MHz, ideal for fast and efficient performance. With multiple M.2 and PCIe slots, it offers flexible storage options for HDDs and SSDs. For fast network connections, the motherboard features 2.5 Gigabit Ethernet and Wi-Fi 6. Perfect for both professionals and enthusiastic PC builders looking for reliability and speed in their system.
