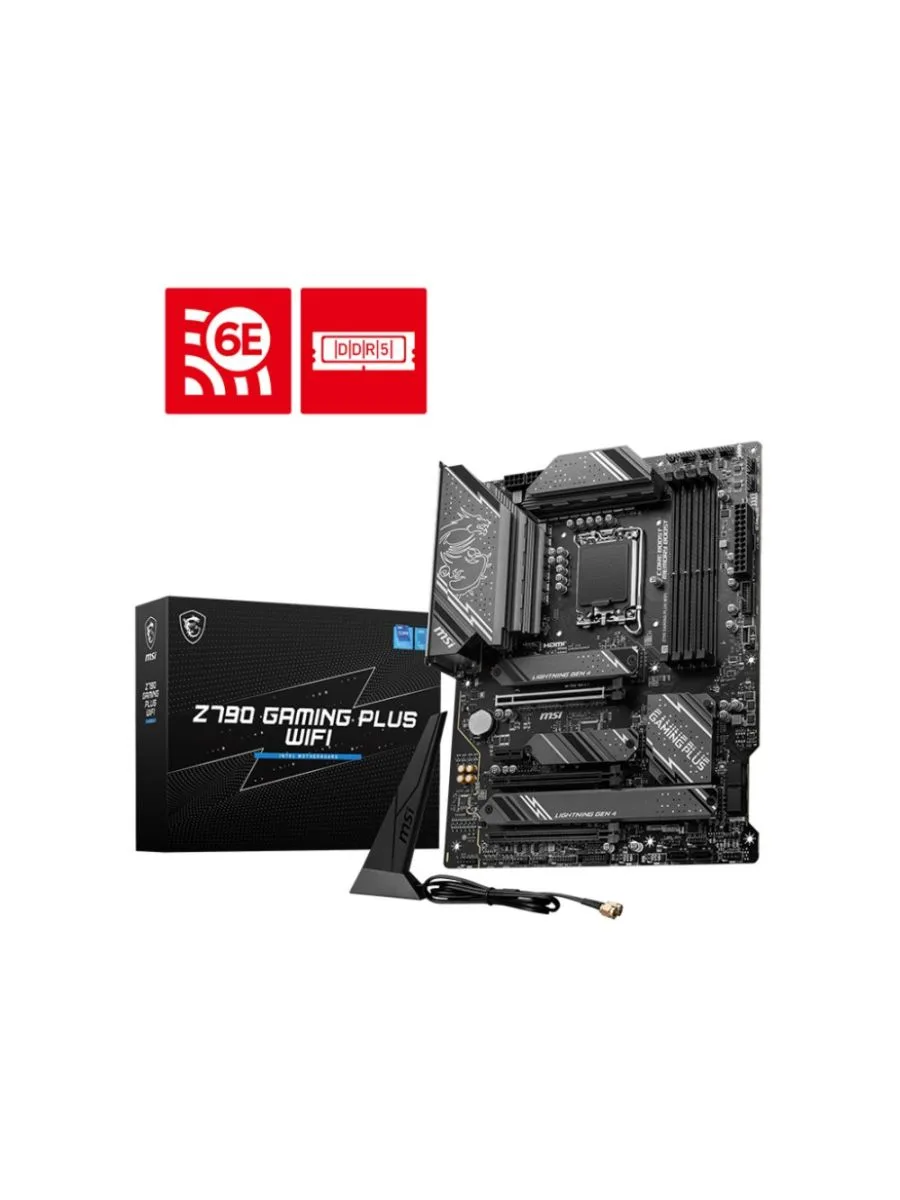

MSI Z790 GAMING PLUS WIFI | Socket LGA 1700 | Intel Z790 | 4xDDR5 | ATX | Motherboard

Warranty	2 jaar via Complies
SKU	7E06-026R
EAN	4711377134712
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Memory
Supported memory types:	DDR5-SDRAM
Number of memory slots:	4
Non-ECC:	Yes
Supported memory clock speeds:	7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max):	7200 MHz
Maximum internal memory:	192 GB
Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	IntelÂ® CeleronÂ®, IntelÂ® PentiumÂ® Gold
Supported processor sockets:	LGA 1700
Internal I/O
USB 2.0 connectors:	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	6
Front panel audio connector:	Yes
Front panel connector:	Yes
TPM connector:	Yes
RGB LED pin header:	Yes
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
HDMI version:	2.1
S/PDIF out port:	Yes
Network
Ethernet LAN:	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Wi-Fi:	Yes
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth:	Yes
Bluetooth version:	5.3
Graphics
Parallel processing technology support:	Not supported
Expansion slots
Number of M.2 (M) slots:	4
Storage controllers
Supported storage drive types:	HDD & SSD
Supported storage drive interfaces:	M.2, PCI Express
RAID levels:	0, 1, 5, 10
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z790
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width:	243.8 mm
Depth:	304.8 mm
Packaging content
Cables included:	SATA

Productomschrijving

The Z790 GAMING PLUS WIFI is designed with plenty of connectivity options, flexible tools, and a convenient Wi-Fi solution with the DDR5 memory version for gamers who want it all.

DDR5-SDRAM is supported with a maximum capacity of 192 GB and speeds ranging from 4800 MHz to 7200 MHz, keeping your system fast and responsive.
