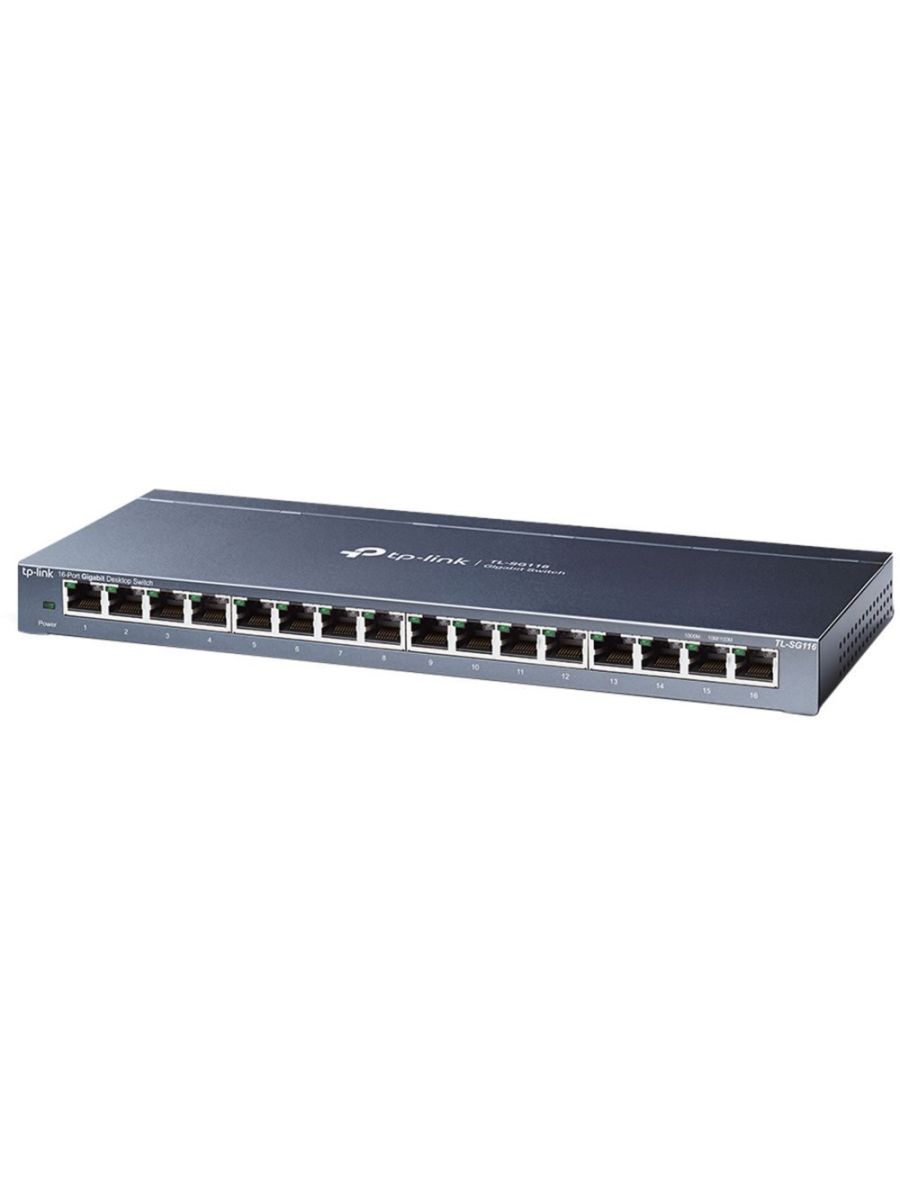

TP-Link TL-SG116E | 16-Port Gigabit Easy Smart Switch | QoS/VLAN/IGMP Snooping | Plug and Play | Metal Housing

Warranty	3 jaar via Complies na fabricagedatum
SKU	TL-SG116E
EAN	6935364084301
Condition	New

Ontdek onze prijzen

Specifications
Product Description
Alternatives
Print Spec Sheet

Management features
Switch type:	Unmanaged
Quality of Service (QoS) support:	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	16
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	16
Network
Networking standards:	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
10G support:	N
Copper ethernet cabling technology:	10BASE-T,100BASE-TX,1000BASE-T
Cable types supported:	Cat3,Cat4,Cat5,Cat5e,Cat6
Port mirroring:	Y
Full duplex:	Y
Flow control support:	Y
Link aggregation:	Y
Broadcast storm control:	Y
Rate limiting:	Y
Auto MDI/MDI-X:	Y
Auto-negotiation:	Y
Cable length detection:	Y
VLAN support:	Y
Virtual LAN features:	Tagged VLAN,Protocol-based VLAN
Number of VLANs:	32
Data transmission
MAC address table:	8000 entries
Switching capacity:	32 Gbit/s
Forwarding rate:	23.81 Mpps
Store-and-forward:	Y
Number of queues:	4
Jumbo frames support:	Y
Jumbo frames:	9000
Packet buffer memory:	4.1 MB
Security
IGMP snooping:	Y
Loop protection:	Y
Design
Rack mounting:	N
Product colour:	Black
Housing material:	Metal
LED indicators:	Y
Wall mountable:	Y
Certification:	FCC, CE, RoHS
Performance
Plug and Play:	Y
Power
Power supply included:	Y
AC input voltage:	220 V
AC input frequency:	50 Hz
DC input voltage:	9 V
Input current:	0.6 A
Power consumption (max):	9.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	N
Operational conditions
Operating temperature (T-T):	0 - 40 Â°C
Storage temperature (T-T):	-40 - 70 Â°C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	31.68 BTU/h
Weight & dimensions
Width:	286 mm
Depth:	111.7 mm
Height:	25.4 mm
Packaging data
Cables included:	AC
Quick start guide:	Y
AC adapter included:	Y
Rubber feet:	Y
Package width:	412 mm
Package depth:	170 mm
Package height:	70 mm

Productomschrijving

Expand your wired network with the TP-LINK TL-SG116E Unmanaged Gigabit Ethernet Switch. This switch offers simple and reliable connectivity for home or office networks. With 16 Gigabit Ethernet ports, you can effortlessly connect multiple devices and benefit from fast data transmission.

This is an unmanaged switch, meaning it offers plug-and-play functionality without the need for configuration. Simply connect your Ethernet cables to the desired ports and the switch will automatically handle data transmission.

This switch supports speeds of up to 1000 Mbps, allowing you to benefit from fast and reliable data transmission within your network.

More…
