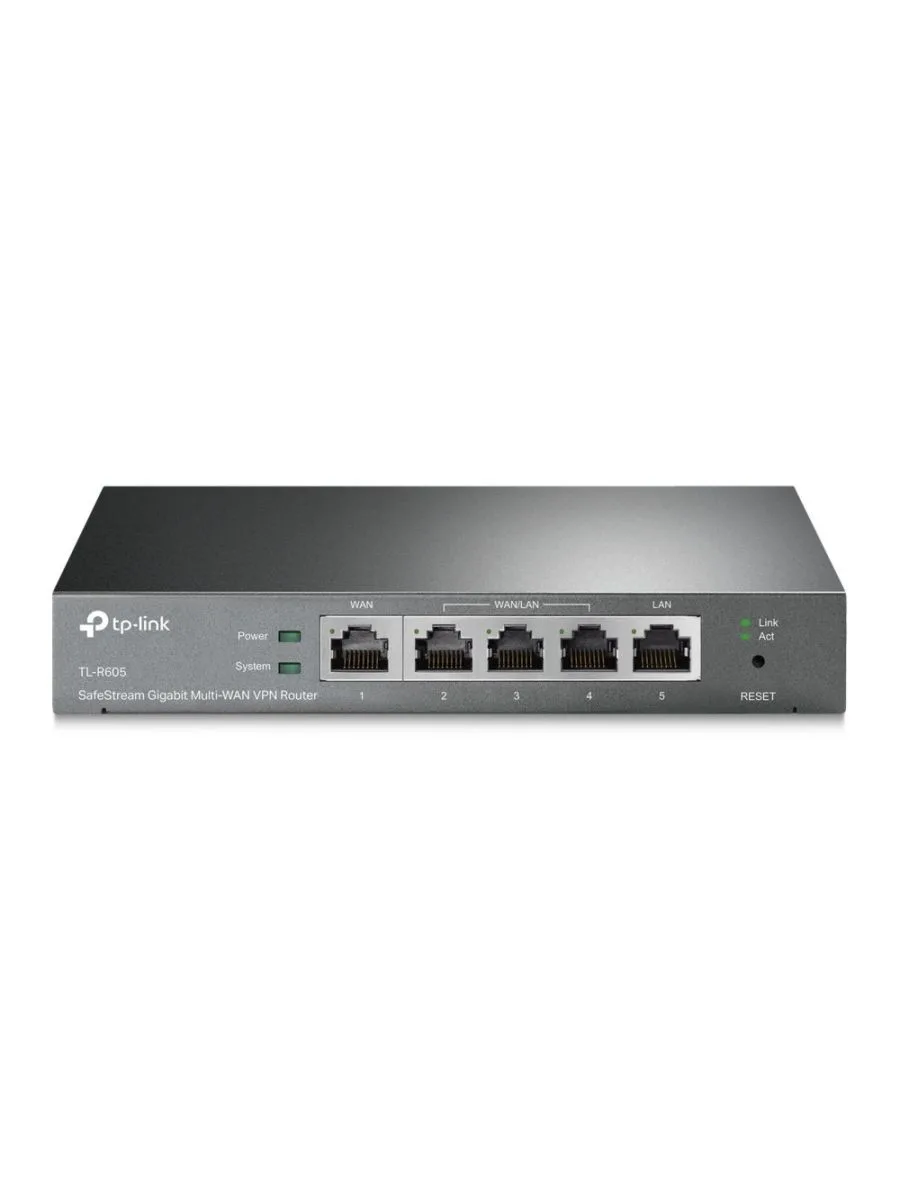

TP-Link TL-R605 | SafeStream Gigabit Multi-WAN VPN Router | Omada SDN | No Wi-Fi

FUNCTIONALITY OF THE HARDWARE
Standard elements and protocols - IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface - 1 fixed Gigabit WAN port
- 1 fixed Gigabit LAN port
- 3 switchable Gigabit WAN/LAN ports
Network bearer - 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100Ω STP (Max. 100 m)
- 100BASE-TX: Category 5, 5e UTP cable (Max. 100 m)
EIA/TIA-568 100Ω STP (Max. 100 m)
- 1000BASE-T: Category 5, 5e, 6 UTP cable (Max. 100 m)
Button Reset button
Uitgangsvermogen External 9V/0.85A DC adapter
Flash SPI 16MB
Memory 128 MB
LED PWR, SYS, WAN, LAN
Dimensions (W x D x H) 6.2 × 4.0 × 1.0 inches (158 × 101 × 25 mm)
PRESTATIO
Concurrent session 25,000
IPsec VPN throughput 41.5 Mbps
BASIC FUNCTIONS
WAN connection type - Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
MAC Kloon - Change WAN/LAN MAC Address†
DHCP - DHCP server/client
- DHCP address reservation
- Multi-network DHCP*
- Multi-IP interfaces*
IPv6 Yes
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FEATURES
ACL IP/port/protocol/domain name filtering
Advanced routing - Static routing
- Policy routing
Bandwidth control - IP/port based bandwidth control
- Guaranteed & limited bandwidth
Load Balancing - Intelligent Load Balancing
- Application optimized routing
- Link protection (timing§, failover)
- Online detection
NAT - One-to-one NAT§
- Multi-network NAT
- Virtual servers
- Port triggering§
- NAT DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Beveiliging - SPI firewall
- VPN loop-through
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS defense, Ping of Death
- Local management
Session limiting IP-based session limiting
VPN
IPsec VPN - 20 IPsec VPN tunnels
- LAN-to-LAN, Client-to-LAN
- Main, aggressive negotiation mode
- DES, 3DES, AES128, AES192, AES256 Encryption algorithm
- IKEv1/v2*
- MD5, SHA1 Authentication algorithm
- NAT override (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)

*These features require the use of an Omada hardware controller, software controller, or cloud-based controller.
PPTP VPN - PPTP VPN server
- 10 PPTP VPN clients**
- 16 tunnels
- PPTP with MPPE encryption
L2TP VPN - L2TP VPN server
- 10 L2TP VPN clients**
- 16 tunnels
- L2TP over IPSec
OpenVPN - OpenVPN server*
- 10 OpenVPN clients*△
- 16 OpenVPN tunnels*
AUTHORIZATION
WEB group filtering§
URL filtering
Web security§
ARP inspection - sending GARP packets§
- ARP inspection§
- IP MAC binding§
Bescherming tegen aanvallen - TCP/UDP/ICMP Flood Defense
- Block TCP scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Access control Source/Destination IP-based access control
